VisiTrace RS485 120 L1

The VisiTrace RS485 L1 sensor delivers reliable dissolved oxygen measurements in the low ppb range. This sensor ensures accurate monitoring during filtration, filling, and boiler feed water applications, especially in breweries and power plants.

VisiTrace RS485 160 L1

The VisiTrace RS485 L1 sensor delivers reliable dissolved oxygen measurements in the low ppb range. This sensor ensures accurate monitoring during filtration, filling, and boiler feed water applications, especially in breweries and power plants.

VisiTrace RS485 215 L1

The VisiTrace RS485 L1 sensor delivers reliable dissolved oxygen measurements in the low ppb range. This sensor ensures accurate monitoring during filtration, filling, and boiler feed water applications, especially in breweries and power plants.

VisiTrace RS485 325 L1

The VisiTrace RS485 L1 sensor delivers reliable dissolved oxygen measurements in the low ppb range. This sensor ensures accurate monitoring during filtration, filling, and boiler feed water applications, especially in breweries and power plants.

VisiTrace RS485 425 L1

The VisiTrace RS485 L1 sensor delivers reliable dissolved oxygen measurements in the low ppb range. This sensor ensures accurate monitoring during filtration, filling, and boiler feed water applications, especially in breweries and power plants.

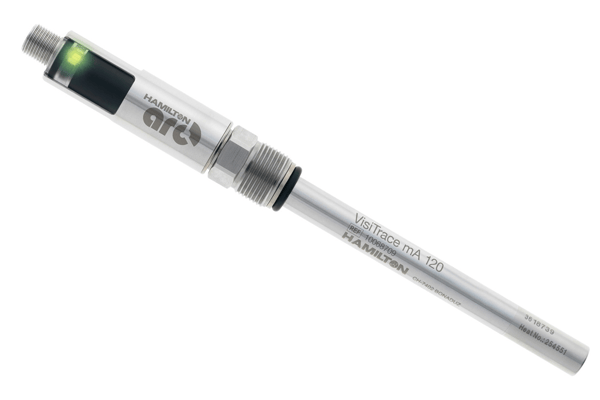

VisiTrace mA 120 L1

VisiTrace mA is an ideal dissolved oxygen sensor for brewing filtration and filling as well as power plant boiler feed water monitoring. Use VisiTrace mA to simplify calibration, configuration, and maintenance for strong process reliability.

VisiTrace mA 160 L1

VisiTrace mA is an ideal dissolved oxygen sensor for brewing filtration and filling as well as power plant boiler feed water monitoring. Use VisiTrace mA to simplify calibration, configuration, and maintenance for strong process reliability.

VisiTrace mA 225 L1

VisiTrace mA is an ideal dissolved oxygen sensor for brewing filtration and filling as well as power plant boiler feed water monitoring. Use VisiTrace mA to simplify calibration, configuration, and maintenance for strong process reliability.

VisiTrace mA 325 L1

VisiTrace mA is an ideal dissolved oxygen sensor for brewing filtration and filling as well as power plant boiler feed water monitoring. Use VisiTrace mA to simplify calibration, configuration, and maintenance for strong process reliability.

VisiTrace mA 425 L1

VisiTrace mA is an ideal dissolved oxygen sensor for brewing filtration and filling as well as power plant boiler feed water monitoring. Use VisiTrace mA to simplify calibration, configuration, and maintenance for strong process reliability.

VisiFerm mA 120 H3

The VisiFerm mA is the next generation optical dissolved oxygen (DO) sensor designed for use in explosive environments. Available in multiple sensor lengths and with different sensor caps.

VisiFerm mA 160 H3

The VisiFerm mA is the next generation optical dissolved oxygen (DO) sensor designed for use in explosive environments. Available in multiple sensor lengths and with different sensor caps.

Sensor Family VisiTrace RS485

Sensor Family VisiTrace mA

Sensor Family VisiFerm mA

Electrical Connector VP8

Electrical Connector M12

Parameter DO (Optical)

Parameter —

Measuring Range At 25°C and 1013 mbar total gas pressure
0.8 ppb to 2000 ppb (in liquid)
20 ppm to 49'000 ppm (in gas)
0.02 to 50 mbar(pO2)

Measuring Range 4 ppb to 25 ppm (in liquid)
100 ppm to 600'000 ppm (in gas)
0.01 - 62.85 %-vol or 0.05 to 300 %-sat
0.1 to 625 mbar (pO2)
At 25°C and 1013 mbar total gas pressure

Electrolyte None

Accuracy at 25 °C ± 0.5 ppb or 2 % whichever is greater

Accuracy at 25 °C 1 ± 0.05 %-vol; 21 ± 0.2 %-vol; 50 ± 0.5 %-vol

Drift at Room Temperature < 1 % per week @ 100 ppb

Drift at Room Temperature < 1 % per week

Sensor Cap ODO Cap L1

Sensor Cap ODO Cap H3

Oxygen Consumption None

Temperature Sensor NTC 22 kOhm

Configurable Values DO: mbar; %-sat; %-vol; µg/l; mg/l; ppb/ppm (dissolved oxygen); Temperature: °C, °F, K

Configurable Values Dissolved Oxygen (DO): mbar; %-sat; %-vol; µg/l; mg/l; ppb/ppm (gas); ppb/ppm; Temperature: °C, °F, K

Configurable Values Dissolved oxygen (DO): mbar, %-sat, %-vol, μg/l ppb, mg/l ppm, ppm gas; Temperature: °C, °F, K

Surface Quality of Steel Ra < 0.4 µm (N5)

Digital Interface RS485 Modbus (max. 32 addresses)

Digital Interface Bluetooth 5.0
HART Protocol 7

Baud Rate 4800, 9600, 19200, 38400, 57600, 115200 Bd

Baud Rate —

Operating Voltage 10 to 27 VDC max. 1.5 W

Operating Voltage 18 to 30 VDC

Sensor Output Arc: Modbus, 4-20 mA (only via Arc Wi 2G Adapater)

Sensor Output 4 to 20 mA / HART

Sensor Output —

Wetted Parts Stainless Steel 1.4435
EPDM (Ethylene propylene elastomer)
VMQ (Silicone elastomer)
See compliance details in Material Specification document

Wetted Parts Stainless Steel 1.4435
EPDM (Ethylene propylene elastomer)

Process Connection PG13,5

Serial Number Yes

Response Time t90% < 20 s in gas; < 90 s in water

Response Time t98% < 30 s at 25 °C

Certificate Yes

Certificate Yes, with measured current in oxygen

Certificate Yes, with measured current in air

ATEX Approval No

ATEX Approval ll 1 G Ex ia llC T3/T4/T5/T6 Ga; II 1 D Ex ia IIIC T135°C Da

IECEx Approval No

IECEx Approval ll 1 G Ex ia llC T3/T4/T5/T6 Ga; II 1 D Ex ia IIIC T135°C Da

Diameter 12 mm

Autoclavable Yes

Steam Sterilizable Yes, max. Temperature 140 °C

CIP Yes

Operating Temperature Range -20 to 140 °C; the sensor provides no DO reading above 85 °C

Operating Temperature Range -10 to 140 °C; the sensor provides no DO reading above 85 °C

Operating Temperature Range -20 to 140 °C; the sensor provides no DO reading above 85 °C

Pressure Range bar g -1 to 12 bar

Protection Rating IP68

Required Flow None

a-length 120 mm

a-length 160 mm

a-length 215 mm

a-length 325 mm

a-length 425 mm

a-length 120 mm

a-length 160 mm

a-length 215 mm

a-length 325 mm

a-length 425 mm

a-length 120 mm

a-length 160 mm

4 to 20 mA Current Range —

4 to 20 mA Current Range 3.5 to 22 mA

Analog Interface 1 —

Analog Interface 1 Two wire sink 4 to 20 mA for DO, programmable

4 to 20 mA Accuracy —

4 to 20 mA Accuracy < 0.3 % + 0.05 mA

4 to 20 mA Accuracy < 0.3 % current value + 0.05 mA

Transmitting Power —

Transmitting Power Max. 4 dBm

Pharma & Biopharma Bioprocess Upstream Water, Energy, & Environment Power Generation Agri-Food and Beverage Brewing Winemaking

Water, Energy, & Environment Power Generation Chemical Processes Petrochemicals, Oil & Gas Processing Agri-Food and Beverage Brewing Winemaking

Pharma & Biopharma Bioprocess Upstream Water, Energy, & Environment Water and Wastewater Power Generation Chemical Processes Basic Chemicals Petrochemicals, Oil & Gas Processing Agri-Food and Beverage Brewing Winemaking Novel Food Bioprocessing Precision Fermentation Cultivated Meat
