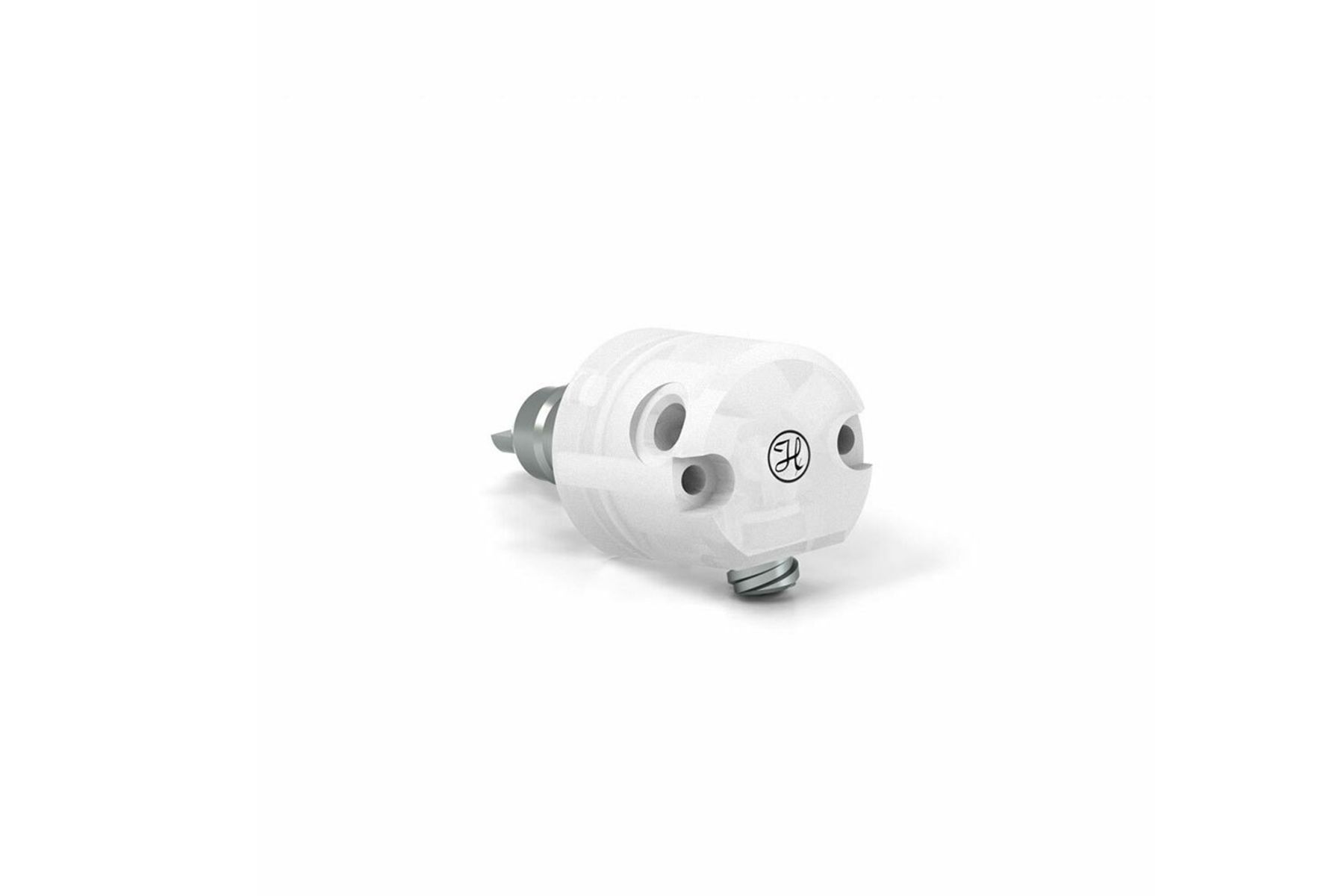

PSD Valve, "Y" Flow Path (3-2), Hamaflon, HV, Luer Lock (TLL) Syringe Connection, PN: 99891-01
Part # 99891-01
The "Y" flow path features one Luer Lock (TLL) syringe port, which connects to one of the two 1/4"-28 threaded flat-bottom ports at a time. The Hamaflon plug valve (PN: 99891-01) offers excellent chemical resistance, low dead/swept volume, and a long life expectancy.
PSD/4: The maximum half-height (30 mm) syringe compatibility is 12.5 mL. For use with a 25 mL syringe, adapter P/N 209651 is required.
PSD/6: The maximum full-height (60 mm) syringe compatibility is 25 mL. For use with a 50 mL syringe, adapter P/N 209651 is required.
Precision Syringe Drive (PSD) Valves
- Designed for use with Hamilton PSD/4 and PSD/6
- These valves feature one dedicated syringe port and two or more 1/4"-28 threaded ports.
- Constructed of durable and chemically resistant materials for long-term reliability.
Luer Lock (TLL) Syringes
The Luer Lock syringe termination seals directly with the female Luer valve port.
- Feature the standard flat plunger tip
- Available with PTFE or Long-Life UHMWPE plunger tip materials
- Chemically resistant fluid path materials

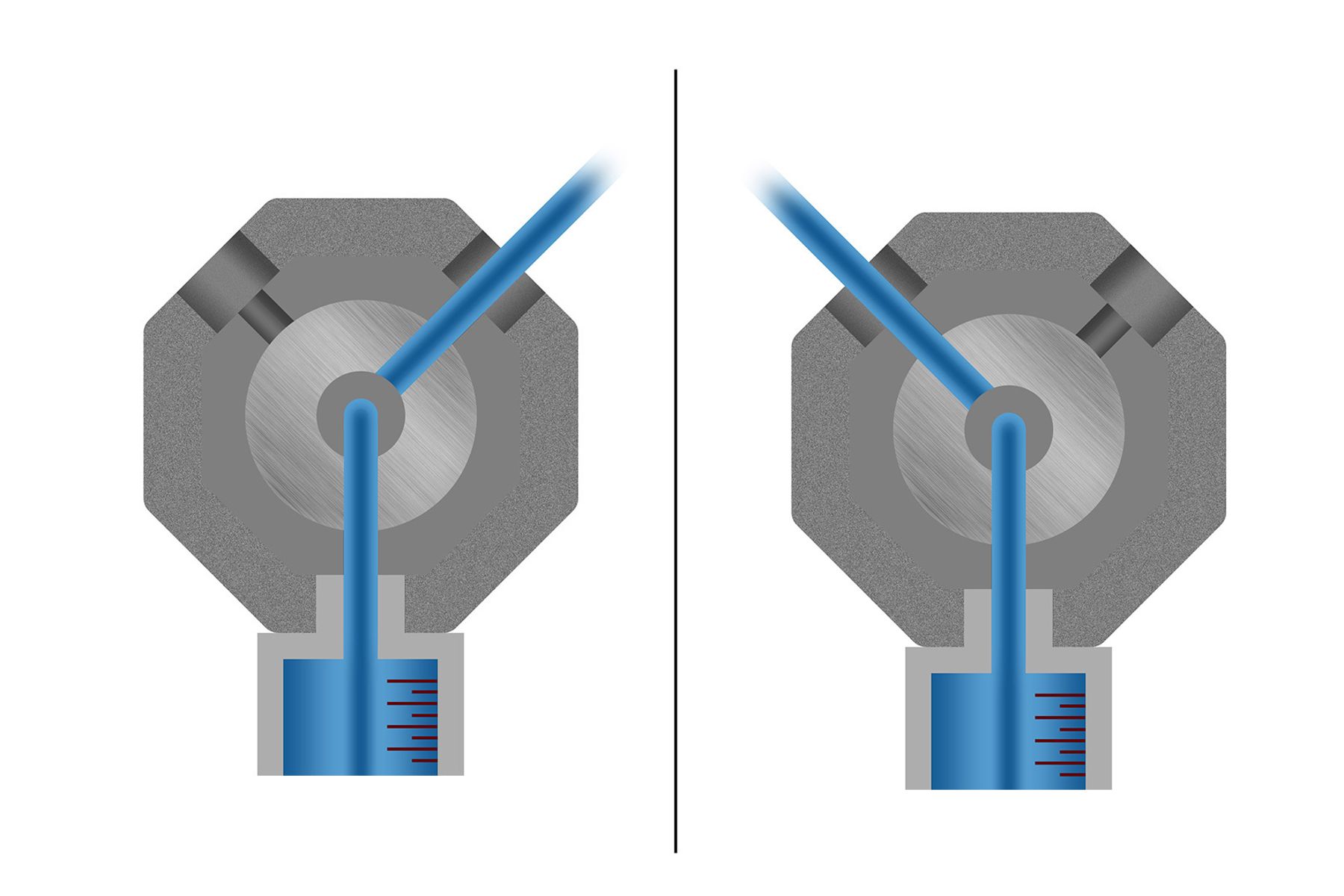

"Y" Flow Path
The "Y" flow path connects the syringe to one of the two ports at a time. This flow path is most commonly used to fill the syringe through one port and dispense through the other.
Hamaflon Plug Valves
Featuring a rotating Hamaflon plug for reliable fluid path selection, these valves offer excellent durability and PTFE-equivalent chemical compatibility.
- Long life expectancy
- Chemically resistant flow path
- Low dead/swept volume
- Ideal for higher pressure applications
- No lubrication required
The plug valve design is recommended for salty solutions and liquids that crystallize when dry.
