Transmitter H220X

A 2-wire 24VDC transmitter for Explosive Atmospheres with options for either traditional sensors or Memosens pH/ORP. The H220X has both standard and advanced software depending on the application needs.

Receive More Information

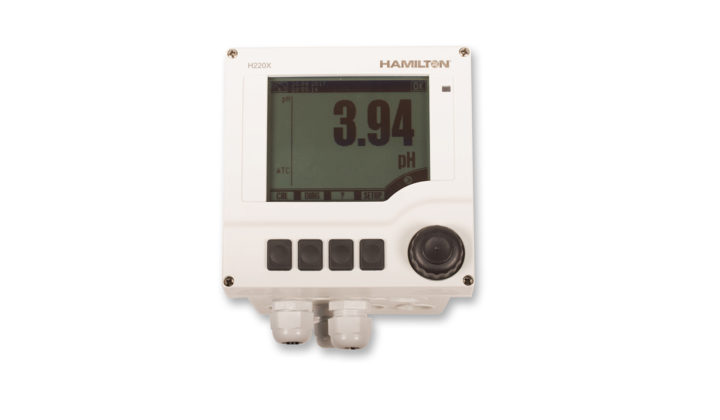

  • Hamilton H220X process transmitter with LCD display, four function buttons, rotary knob, and cable glands

Transmitter H220X Details

Hamilton H220X Transmitters combine ease of use and reliability. They are available in different configurations: Analog pH / ORP, Conductivity and inductive Conductivity as well as Memosens® pH and Oxygen. It has been designed for universal process application including use in pharmaceutical, chemical, food & beverage industries as well as water / waste water treatment.
The self-explaining user interface ensures comfortable and intuitive handling. Hamilton H220X transmitters provide continuous sensor monitoring and preventive maintenance indication for maximal reliability.

The Memosens® Technology allows plug & play with pre-calibrated Memosens® sensors. Predictive maintenance system detects when a sensor has to be cleaned, calibrated or replaced. Two separate software packages can be chosen depending on the level of functionality needed for the application.

Common applications Pharma & Biopharma, Biotechnology, Water, Energy, & Environment, Chemical Processes, Agri-Food and Beverage

Continuous process monitoring.

Real-time display of errors.

Maximum operating safety.

Easy Installation and Operation

  • The large display and intuitive menu structure ensure straightforward navigation.
  • Simple calibration with automatic buffer recognition.
  • Memosens® sensors can be connected for even more simple handling.

Robust Design

  • Suitable for Explosions protected areas (Ex ll (1) 2G Ex ib [ia Ga] llX T6/T4 Gb).
  • Wall, post/pipe, or panel mounting possible.
    Transmitter suitable for pollution degree 3.

  • I could not be more pleased with my experience with Hamilton!

    My company has been using Hamilton probes for years and have always been happy with their performance! The team is always very helpful in trouble shooting issues and answering any questions that we may have about our probes. Overall, I could not be more pleased with my experience with Hamilton!

    Abigail Mann
    Bioprocessing Fermentation Associate at Heliae Development

Transmitter H220X Specifications

Print
Housing Material PC-FR (polycarbonate, flame-retardant)
Measuring Range 0 to 999.9 mS/cm
Measuring Channels 1
Dimensions (W x D x H) 144 x 148 x 144 mm
Analog Output 4 to 20 mA floating, (3.6 - 21.5 mA if error message)
Power Supply 11.5 - 30 VDC (2-wire) (Cable not included)
ATEX Approval II (1) 2G Ex ib [ia Ga] IIC T6/T4 Gb
Operating Humidity 10 to 95 %, non-condensing
Protection Rating IP66 / IP67 / NEMA 4X
Display LCD, FSTN Technology
Measuring Error 2-pole: 0.5 % meas. Value ±0.01 µS.k
4-pole: 0.5 % meas. Value ±0.01 µS from 0.1 µS to 20 mS
4-pole: 1.0 % meas. Value ± 0.01 µS from 10 µS to 1000 mS
4-pole: 2.0 % meas. Value ±0.01 µS from 10 µS to 1500mS
Temperature Input Pt 100 / Pt 1000
Temperature Measuring Range -35 to 250 °C
Temperature Resolution 0.01 °C / 0.01 °F

Transmitter H220X Resources

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Green circle icon with a dark navy lightbulb containing two interlocking gears, on a teal dotted background.

Article

Glossary of Sensor & Biopharma Acronyms & Abbreviations

Acronyms and abbreviations are commonly used with process analytics measurements found in the biopharma industry. This glossary is an attempt to de-code some of the more frequently used acronyms.
Green circle icon with a dark navy lightbulb containing two interlocking gears, on a teal dotted background.

Article

Powered vs. Non-powered Cables

Some sensors require standard cables while other sensors require power. Which cable should you use? This quick guide helps better answer these questions.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Two overlapping green speech bubbles with a question mark on a dark navy circular background

FAQ

Can Hamilton pH and ORP sensors be used with my existing transmitter?

In most cases, yes! The output signal for traditional glass membrane pH sensors will work with other manufacturer's transmitters and analyzers. In addition, Hamilton MemoSens pH sensors can be connected to other brands of MemoSens transmitters. Contact Hamilton Technical Support for additional assistance on wiring or cross compatibility.
Two overlapping green speech bubbles with a question mark on a dark navy circular background

FAQ

Can I connect the VisiFerm RS485 to a transmitter or directly to a PCS?

Yes, the VisiFerm RS485 can connect to a transmitter or directly into a PCS using analog (nA, 4-20mA), or digital (Modbus RS485, Profibus DP, OPC UA) communication protocols.
Two overlapping green speech bubbles with a question mark on a dark navy circular background

FAQ

Can Hamilton conductivity sensors be used with my existing transmitter?

In most cases, yes! Transmitters specifically designed for either 2-pole, 4-pole conductivity are generally compatible with Hamilton Conducell products. The transmitter temperature sensor input (PT1000) should be checked to ensure it matches the sensor.
