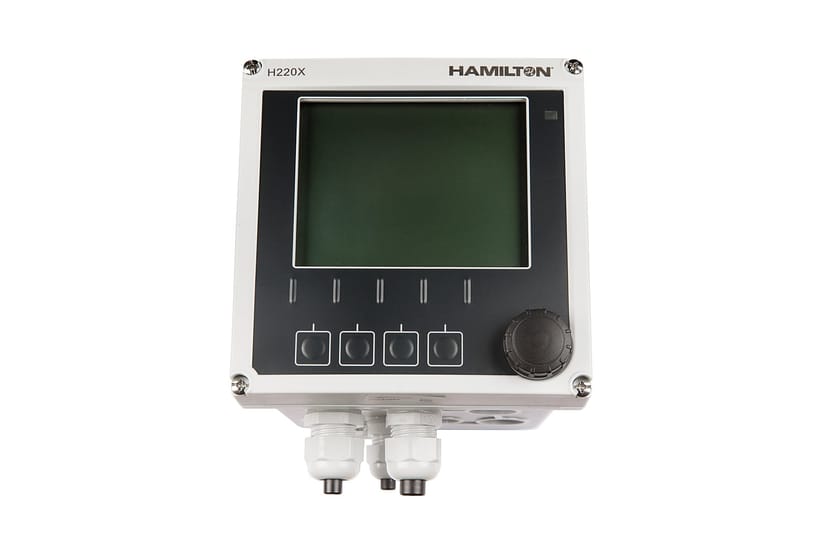

A 2-wire 24VDC transmitter for Explosive Atmospheres with options for either traditional sensors or Memosens pH/ORP. The H220X has both standard and advanced software depending on the application needs.
Product Specifications
| Housing Material |
Housing Material
PC-FR (polycarbonate, flame-retardant)
|
|---|---|
| Measuring Range |
Measuring Range
0 to 999.9 mS/cm
|
| Measuring Channels |
Measuring Channels
1
|
| Dimensions (W x D x H) |
Dimensions (W x D x H)
144 x 148 x 144 mm
|
| Analog Output |
Analog Output
4 to 20 mA floating, (3.6 - 21.5 mA if error message)
|
| Power Supply |
Power Supply
11.5 - 30 VDC (2-wire) (Cable not included)
|
| ATEX Approval |
ATEX Approval
II (1) 2G Ex ib [ia Ga] IIC T6/T4 Gb
|
| Operating Humidity |
Operating Humidity
10 to 95 %, non-condensing
|
| Protection Rating |
Protection Rating
IP66 / IP67 / NEMA 4X
|
| Display |
Display
LCD, FSTN Technology
|
| Measuring Error |
Measuring Error
2-pole: 0.5 % meas. Value ±0.01 µS.k
4-pole: 0.5 % meas. Value ±0.01 µS from 0.1 µS to 20 mS 4-pole: 1.0 % meas. Value ± 0.01 µS from 10 µS to 1000 mS 4-pole: 2.0 % meas. Value ±0.01 µS from 10 µS to 1500mS |
| Temperature Input |
Temperature Input
Pt 100 / Pt 1000
|
| Temperature Measuring Range |
Temperature Measuring Range
-35 to 250 °C
|
| Temperature Resolution |
Temperature Resolution
0.01 °C / 0.01 °F
|
Spec. Version B
