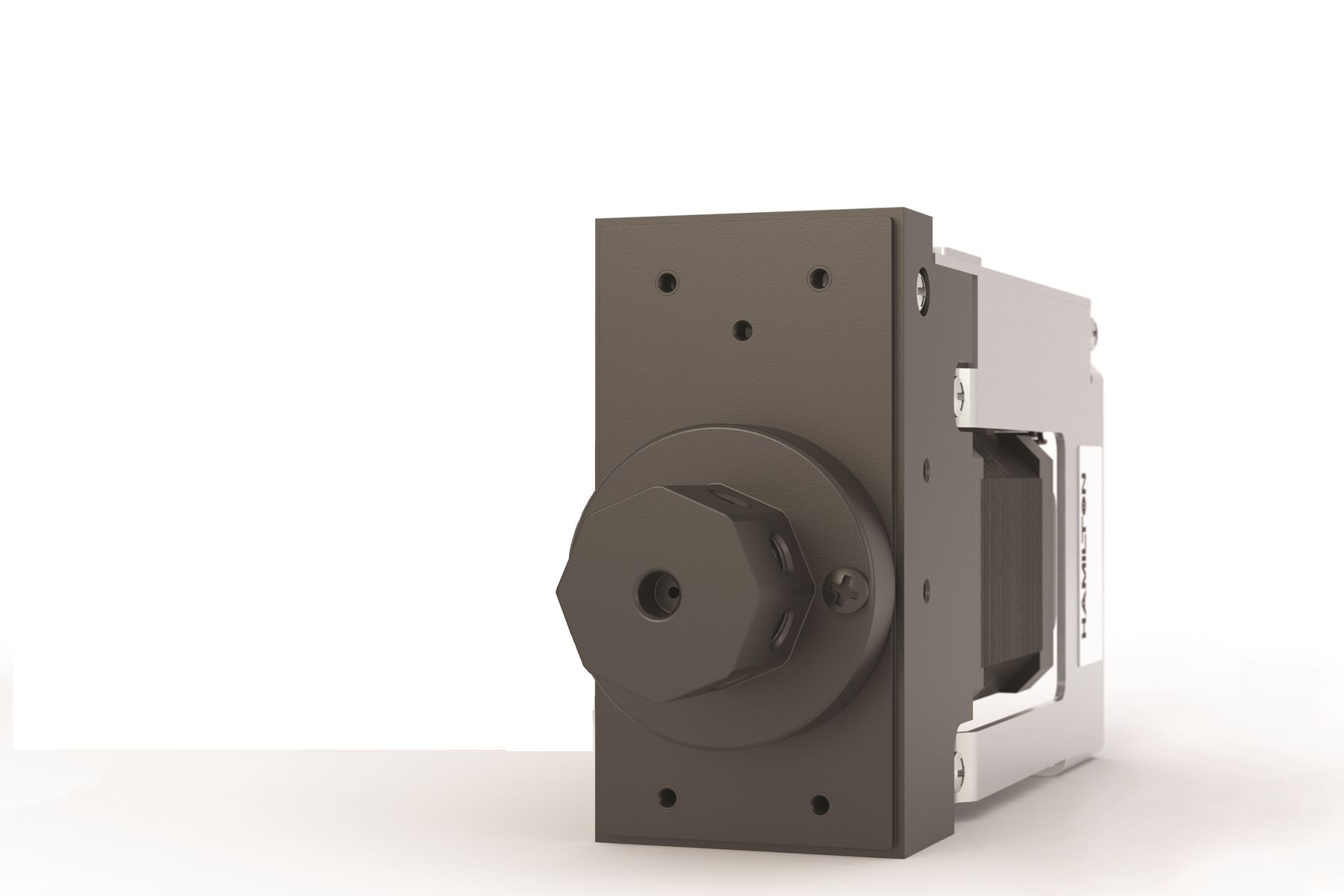

MVP/4 Standard, PN: 94747-01

Part # 94747-01

This compact valve positioner (PN: 94747-01) is designed for seamless OEM integration. Compatible with a variety of Y, T, distribution, and loop valve fluid path options, the MVP/4 is ideal for fluid selection or redirection.


Receive More Information

Minimum: 1, Maximum: 1000

MVP/4 Standard, PN: 94747-01 Specifications

Print
Fluid Path PTFE, CTFE, or ceramic
Weight 1.75 lbs (0.79 kg)
Power Requirements 24 VDC, 1.7A max
Valve Drive Type Direct Drive DC stepper motor with 15 degree resolution and optical encoder.
Valve Drive Speed 250 ms per 120 degree rotation
Valve Drive Torque 25 (in oz)
Valve Fittings ¼-28
Communication Interface RS-232, RS-485, CAN
Communication Protocol Terminal and Standard
Baud Rate 9600 or 38400 (RS-232, RS-485) and 100,000 or 125,000 (CAN)
Data Bits 8
Parity None
Stop Bit 1, Half duplex
Daisy Chain Length Up to 16 syringe pumps or valve positioners
Operating Temp High 40 °C (105 °F)
Operating Temp Low 15 °C (60 °F)
Operating Humidity 20% to 95%, non-condensing
Storage Temp High 65 °C (150 °F)
Storage Temp Low -20 °C (-4 °F)
Storage Humidity 20% to 95%, non-condensing
RoHS 3 Compliant Yes
