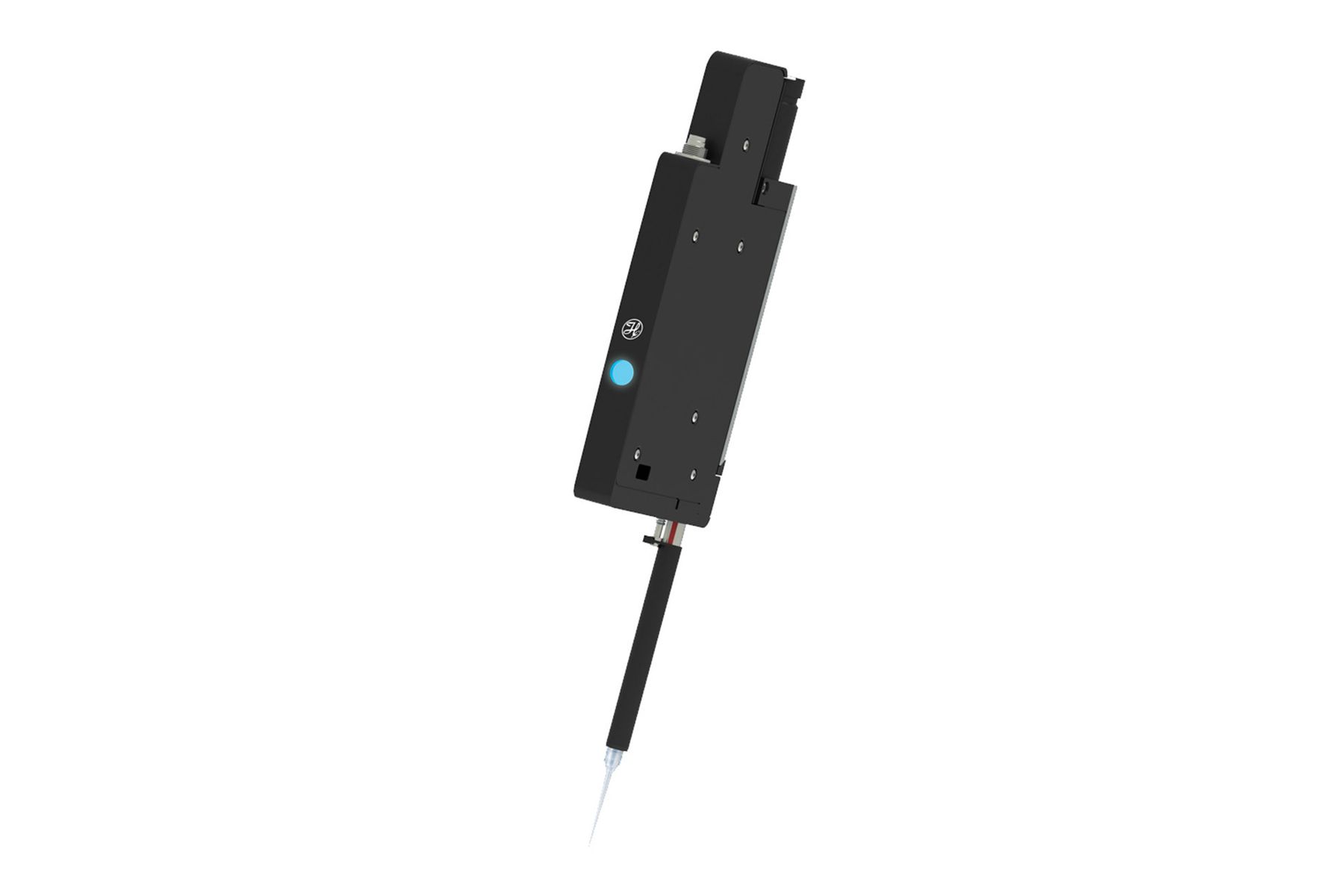

ZEUS LT Pipetting Channel, PN: 800888

Part # 800888

ZEUS LT is the streamlined version of Hamilton's industry-leading ZEUS pipetting module, offering precise air displacement pipetting in a compact design. It provides all critical pipetting functions, such as single and aliquot dispensing from 1 μL to 1 mL, while enabling users to utilize their own Z-axis solution.

Despite its reduced footprint, ZEUS LT includes pressure and capacitive LLD, automated tip ejector, Anti-Droplet Control (ADC), and high accuracy even with volatile or viscous samples — all controlled via RS232 or CAN protocols.

Receive More Information

Minimum: 1, Maximum: 1000

ZEUS LT Pipetting Channel, PN: 800888 Specifications

Print
Weight 410 g
Power Requirements 24 VDC ±5%, 200 mA
Communication Interface RS-232 or CAN (Hamilton Protocol)
Baud Rate 19,200 or 38,400 bd
Operating Temp High 32 °C (90 °F)
Operating Temp Low 18 °C (64 °F)
Operating Humidity 40% to 80%, non-condensing
Storage Temp High 70 °C (158 °F)
Storage Temp Low -25 °C (-13 °F)
Storage Humidity 40% to 80%, non-condensing
Volume Range 1 - 1,000 µL
Pipetting Resolution 0.1 µL
Maximum Pipetting Speed 90 mm/s corresponding to 1,500 µL/s
Pipetting Mode Single and aliquot dispensing
Tip Detection Yes
Liquid Level Detection Pressure-based (pLLD) and capacitive detection (cLLD)
Pipetting Security Qualitative Pipette Monitoring (QPM) Anti-Droplet Control (ADC)
Operating Noise < 60 dBA, Indoor use only
Device Addressing up to 31 modules on a single CAN bus or 32 with RS-232
RoHS 3 Compliant Yes
