- Preconditioned PTFE/silicone rubber septa, 3.175 mm (0.125 in) thick
- Average life: up to 100 injections with a 26s gauge needle
- Maximum operating temperature: 212° C
- 12 per package

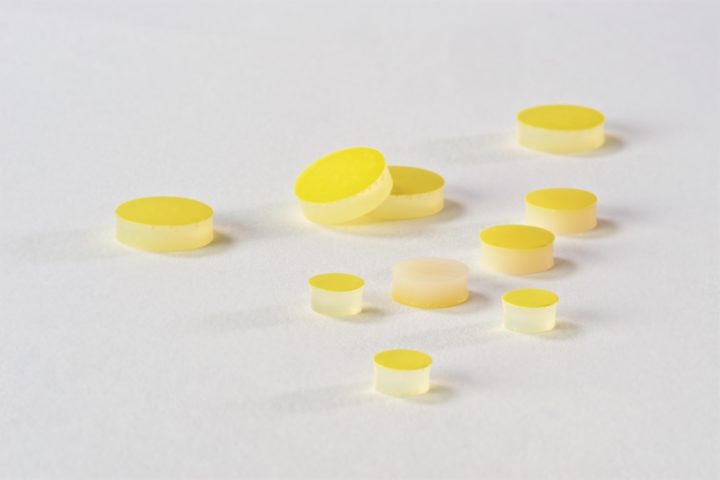

High Temperature GC Septa
High Temperature Septa is made of preconditioned PTFE/silicone rubber and is 3.175 mm (0.125 in) thick. The average life of these septa is up to 100 injections with a 26s gauge needle. The maximum operating temperature is 212° C.
Specifications
Resources
Hamilton's knowledge base provides a range of explanatory articles, frequently asked questions, and document downloads.
-
What is the purpose of the rigid PTFE backing on the High Temperature GC Septa?
The rigid surface helps prevent shedding and tearing, whereas the softer silicone rubber provides a reliable seal. The septa should be installed with the rigid yellow surface facing up.
Work with R&D engineers to customize Hamilton parts
Hamilton's "Custom Built" program puts you directly in contact with a Hamilton R&D Engineer to discuss your application and product needs. The engineer will point you to a standard solution or propose a customized solution to meet your needs.
Talk to an engineer
