Temperature Influence of Conductivity Standard 100 µS/cm

Hamilton offers 100 µS/cm liquid Conductivity Standard (Ref 238934) with a stability of ±1% guaranteed over a lifecycle of up to 3 years. These standards can be used several times, on condition that the bottle is not left open without its lid for more than one hour total. This standard is packaged in a glass bottle to avoid permeation from the atmosphere during storage. The composition of these standards is patented, and the procedure for determining conductivity has been developed in collaboration with the Danish Institute of Fundamental Metrology (FDM) and the National Institute of Standards and Technology (NIST). Please refer to the calibration certificate packaged with every HAMILTON Conductivity Standard for further details.

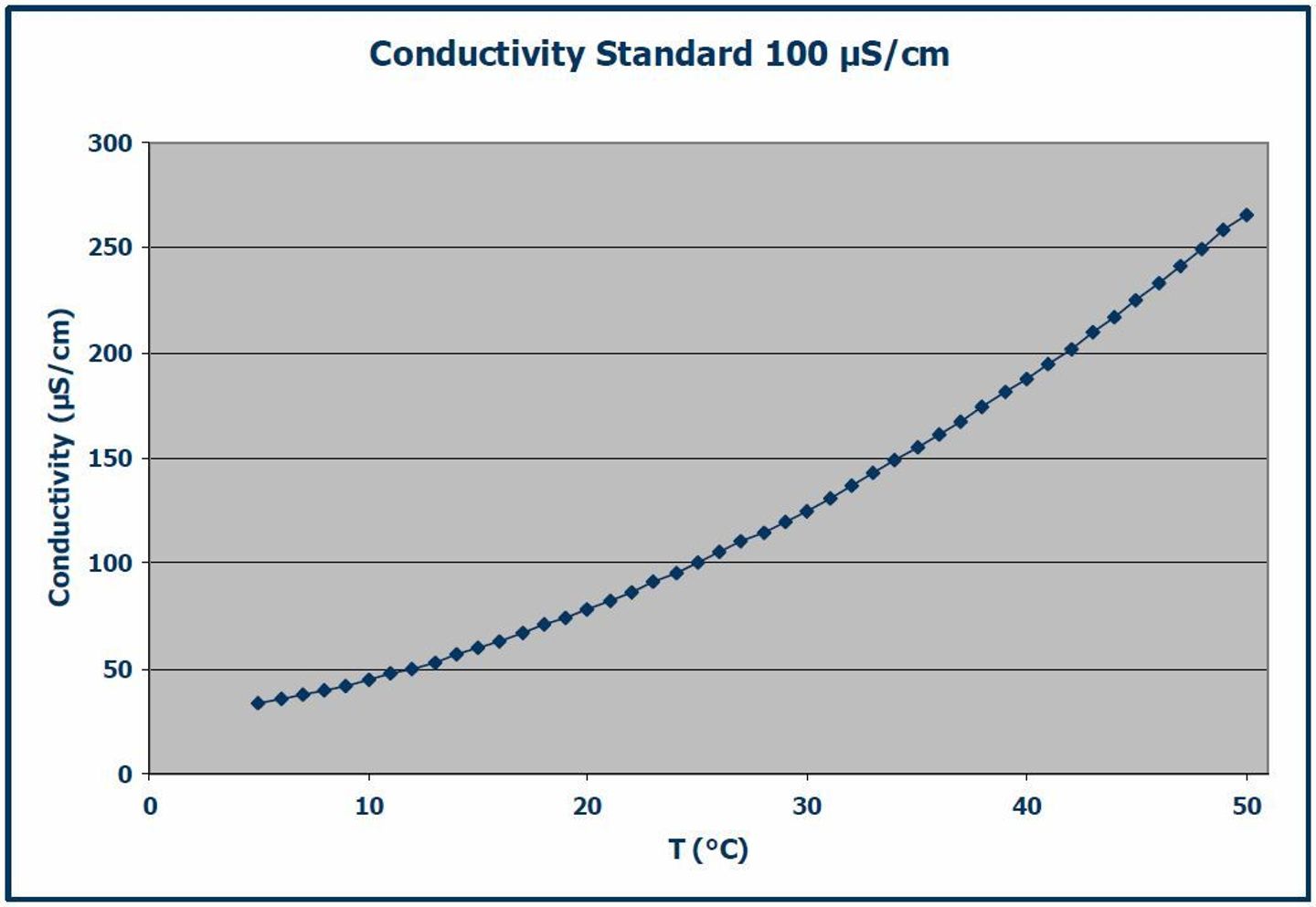

Line graph showing conductivity (µS/cm) vs. temperature (°C) for a 100 µS/cm standard, rising from ~35 at 5°C to ~265 at 50°C.

Conductivity vs. Temperature: Reference table

Temperature °C	Conductivity	Temperature °C	Conductivity	Temperature °C	Conductivity
5	33	21	82	37	167
6	35	22	86	38	174
7	37	23	91	39	181
8	40	24	95	40	188
9	42	25	100	41	195
10	45	26	105	42	202
11	48	27	110	43	210
12	50	28	115	44	217
13	53	29	120	45	225
14	57	30	125	46	233
15	60	31	131	47	241
16	63	32	137	48	249
17	67	33	143	49	258
18	71	34	149	50	266
19	74	35	155
20	78	36	161

Temperature Influence of Conductivity Standard 100 µS/cm (Ref 238934)

Conductivity vs. Temperature: Reference table
