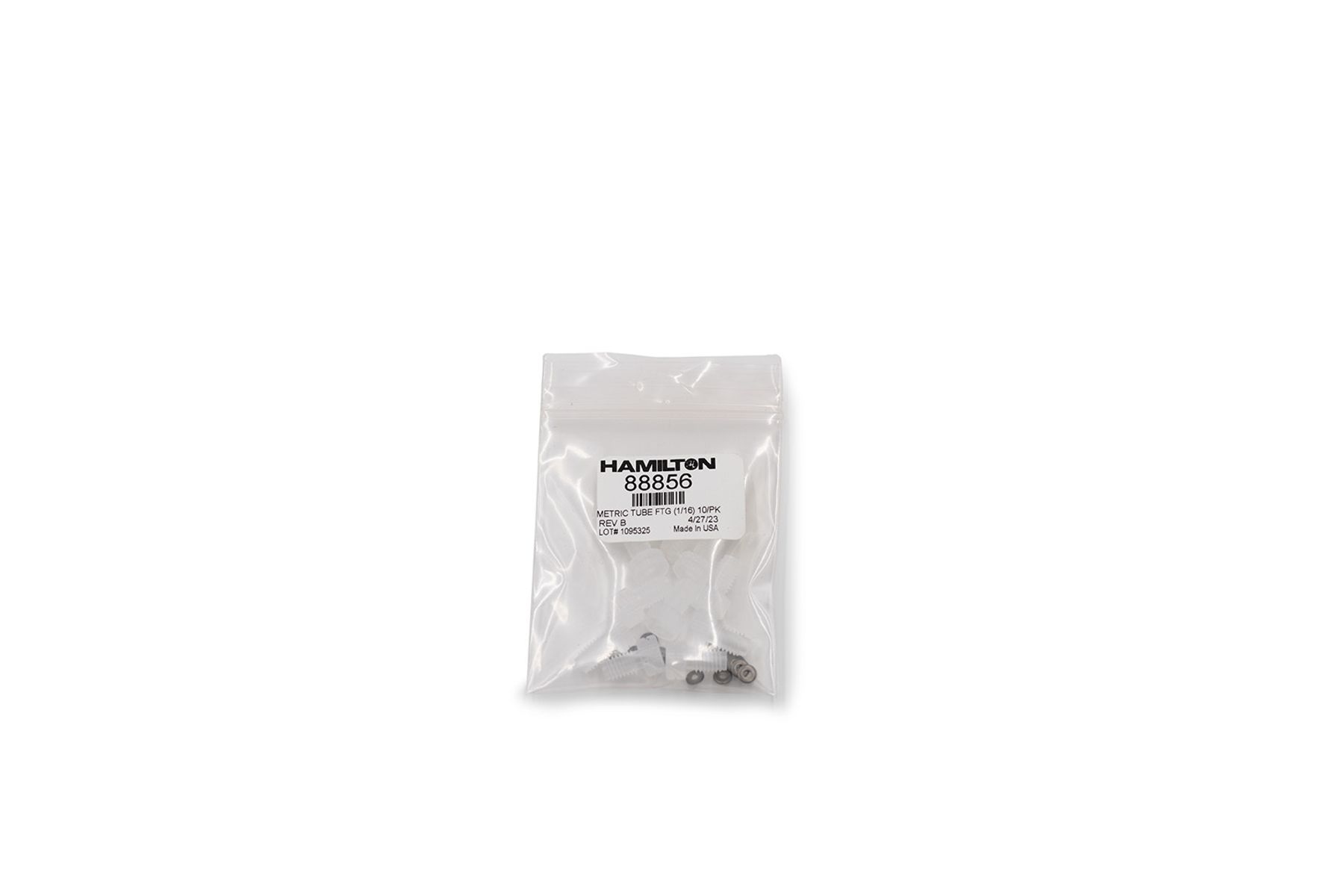

M6 Fittings and Washers, PCTFE, PN: 88856

12 Gauge, (0.073" I.D.), 10/pk

Part # 88856

The M6 Fittings and Washers, PCTFE, PN: 88856 was designed to be used with the Hamilton Flanging Toolkit to create precise flanges on 12 gauge FEP Tubing. The PCTFE fittings and washers may not be suitable for other tubing materials or tubing with different outer or inner diameters.

Buy Now

Price

$

Minimum: 1, Maximum: 1000
Scientific Citations

88856 Specifications

Print
Fitting Material CTFE
Washer Material Stainless Steel
Fitting Inner Diameter (I.D.) 0.073 in / 1.854 mm
Fitting Outer Diameter (O.D.) 0.113 in / 2.870 mm
Washer Inner Diameter (I.D.) 0.073 in / 1.854 mm
Washer Outer Diameter (O.D.) 0.189 in / 4.801 mm
Threads M6
Sales Quantity 10 of each per pack
