¼”-28 PTFE Assembly, 12 Gauge, 1 Fitting(s), PN: 88942

(0.110" O.D / 0.086" I.D), 30", One ¼”-28 Fitting(s) IS

Part # 88942

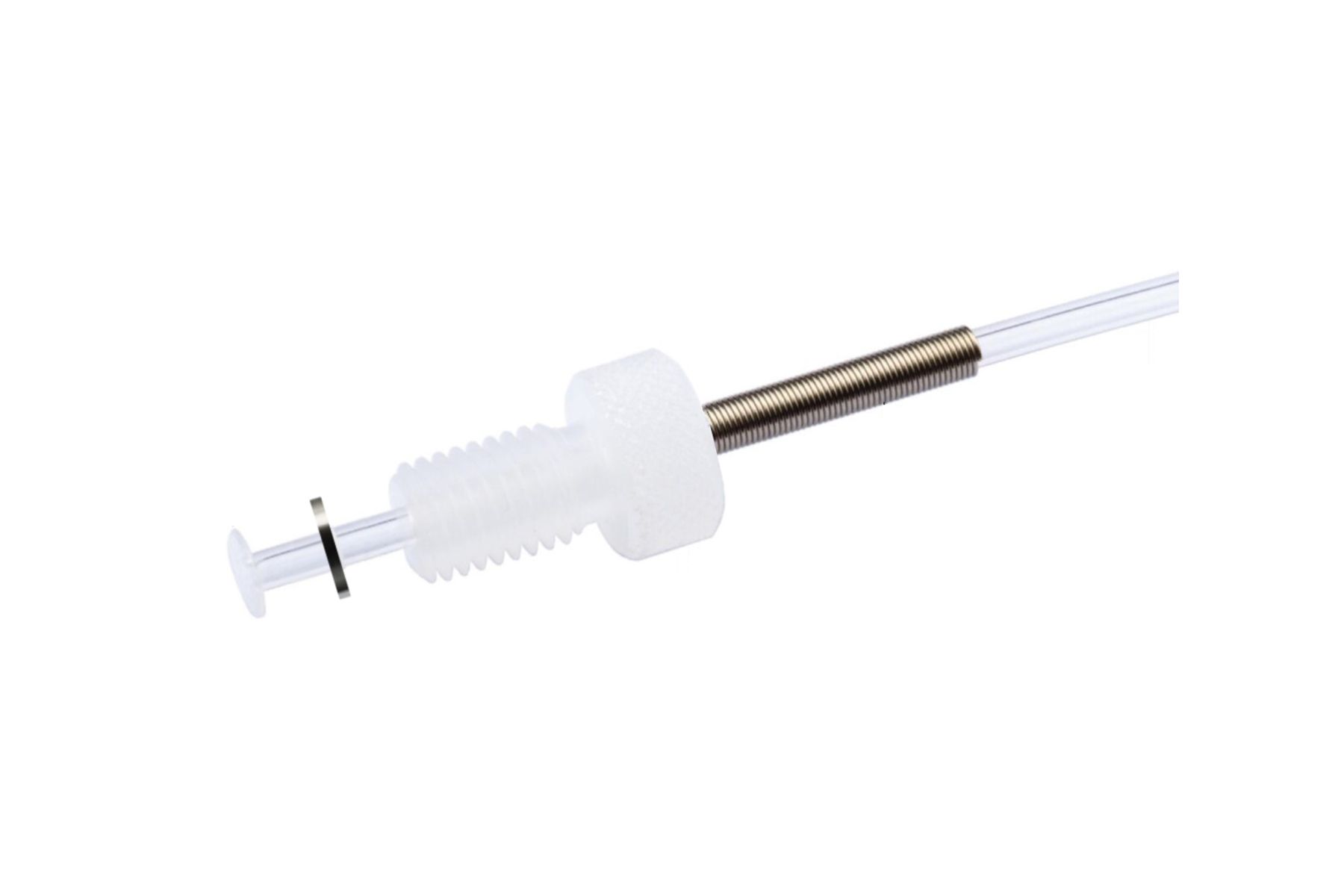

Hamilton’s ¼”-28 tubing assembly features 1 precision machined 1/4"-28 IS PCTFE fitting(s) with 30" of high quality 12 Gauge, (0.110" O.D / 0.086"  I.D), PTFE  tubing. Compatible with any flat-bottom ¼”-28 port. Hamilton’s PTFE  tubing and PCTFE fittings are chemically resistant, temperature resistant, and durable for a leak free connection each time.

Buy Now

Price

$

Minimum: 1, Maximum: 1000

¼”-28 PTFE Assembly, 12 Gauge, 1 Fitting(s), PN: 88942 Details

Hamilton’s ¼”-28 tubing assembly features 1   precision machined 1/4"-28 IS PCTFE fitting(s) with 30" of high quality 12 Gauge (0.110" O.D / 0.086"  I.D), PTFE   tubing. Compatible with any flat-bottom ¼”-28 port. Hamilton’s PTFE  tubing and PCTFE fittings are chemically resistant, temperature resistant, and durable for a leak free connection each time. Choose from a standard stock option or define a custom tubing length.

Scientific Citations

88942 Specifications

Print
Tubing Material PTFE
Washer Material Stainless Steel
Gauge 12 gauge
Tubing Inner Diameter (I.D.) 0.086 in / 2.184 mm
Tubing Outer Diameter (O.D.) 0.110 in / 2.794 mm
Washer Inner Diameter (I.D.) 0.136 in / 3.454 mm
Washer Outer Diameter (O.D.) 0.189 in / 4.801 mm
Tubing Length 30 inches
Nut Length IS (0.60")
Fitting Material CTFE
Number of Fittings 1
Fitting Inner Diameter (I.D.) 0.136 in / 3.454 mm
Threads ¼"-28
Strain Relief Yes
Sales Quantity 1 each
Tubing End 1 1/4"-28 w/Strain Relief
Tubing End 2 Blunt
