11-20 gauge, Fill/Dispense Tubing, PN: 10106177

custom gauge, length, and tubing end type

Part # 10106177

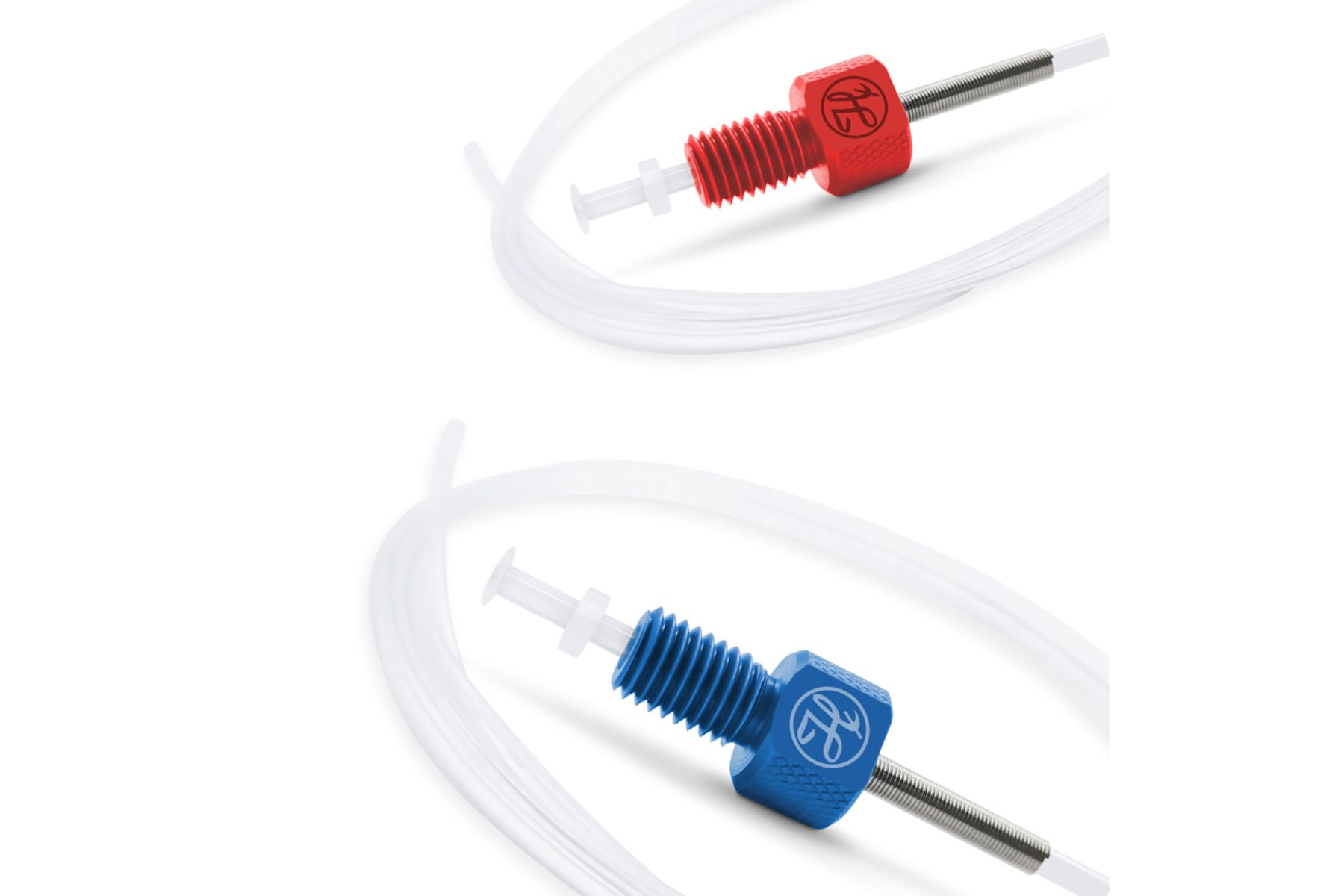

This customizable Tubing Assembly, PN: 10106177 features one precision machined, ¼”-28 (UNF) PEEK fitting with custom length FEP/ PTFE tubing and strain relief spring(s). The fill tubing has a blunt end and is designed to go into a reservoir of liquid and the dispense tubing has a tapered tip designed to optimize accuracy. The 12 gauge or 18 gauge tubing can be used with Microlab 700 Series Diluters or Dispensers.

Receive More Information

This product is not available for purchase in your region.

11-20 gauge, Fill/Dispense Tubing, PN: 10106177 Details

Hamilton's Microlab 700 Fill/Dispense Tubing Assembly features one precision machined, ¼”-28 (UNF) PEEK fitting with custom length FEP/ PTFE tubing and strain relief spring(s). The dispense tubing has a tapered tip designed to optimize accuracy. Hamilton’s FEP tubing and PEEK fittings are chemically resistant, temperature resistant, and durable for a leak free connection each time. Choose from a standard stock option or define a custom tubing length.

Customizable to Fit Your Workflow

Safe and Versatile Tip Design

Available in Blunt or Tapered Tips

  • Blunt tips for safe reservoir filling; tapered tips for precise, controlled dispensing
Scientific Citations

10106177 Specifications

Print
Tubing Material PTFE/FEP (depending on selected gauge)
Gauge 11 - 20
Tubing Length Custom Length
Type Fill/ Dispense Tubing
Length Custom, between 100 and 5000 mm
Tubing End Tapered (except 11 gauge)/ Blunt
Threads 1/4"-28 UNF
Fitting Color Multiple colors available
Fitting Material PEEK

10106177 Resources

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

FAQ

Which tubing gauge do I need for my Microlab 600?

The Microlab 600 fill and dispense tubing assemblies are available with 12 or 18 gauge tubing.
Difference between single and dual hub tubing assemblies

FAQ

What is the difference between single and dual hub tubing assemblies?

In this FAQ, we help you answer what is the difference between single and dual hub tubing assemblies?
IS and HV fittings

FAQ

What is the difference between IS and HV Fittings?

IS stands for Inch Series, whereas HV stands for Hamilton Valve.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

FAQ

Which tubing gauge do I need for my Microlab 600?

The Microlab 600 fill and dispense tubing assemblies are available with 12 or 18 gauge tubing.
Difference between single and dual hub tubing assemblies

FAQ

What is the difference between single and dual hub tubing assemblies?

In this FAQ, we help you answer what is the difference between single and dual hub tubing assemblies?
IS and HV fittings

FAQ

What is the difference between IS and HV Fittings?

IS stands for Inch Series, whereas HV stands for Hamilton Valve.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.
