18 Gauge Dispense Tubing, Tapered, PN: 10106147

1372 mm, 18 gauge (1.905 mm O.D/ 1.092 mm I.D), fitting color: blue

Part # 10106147

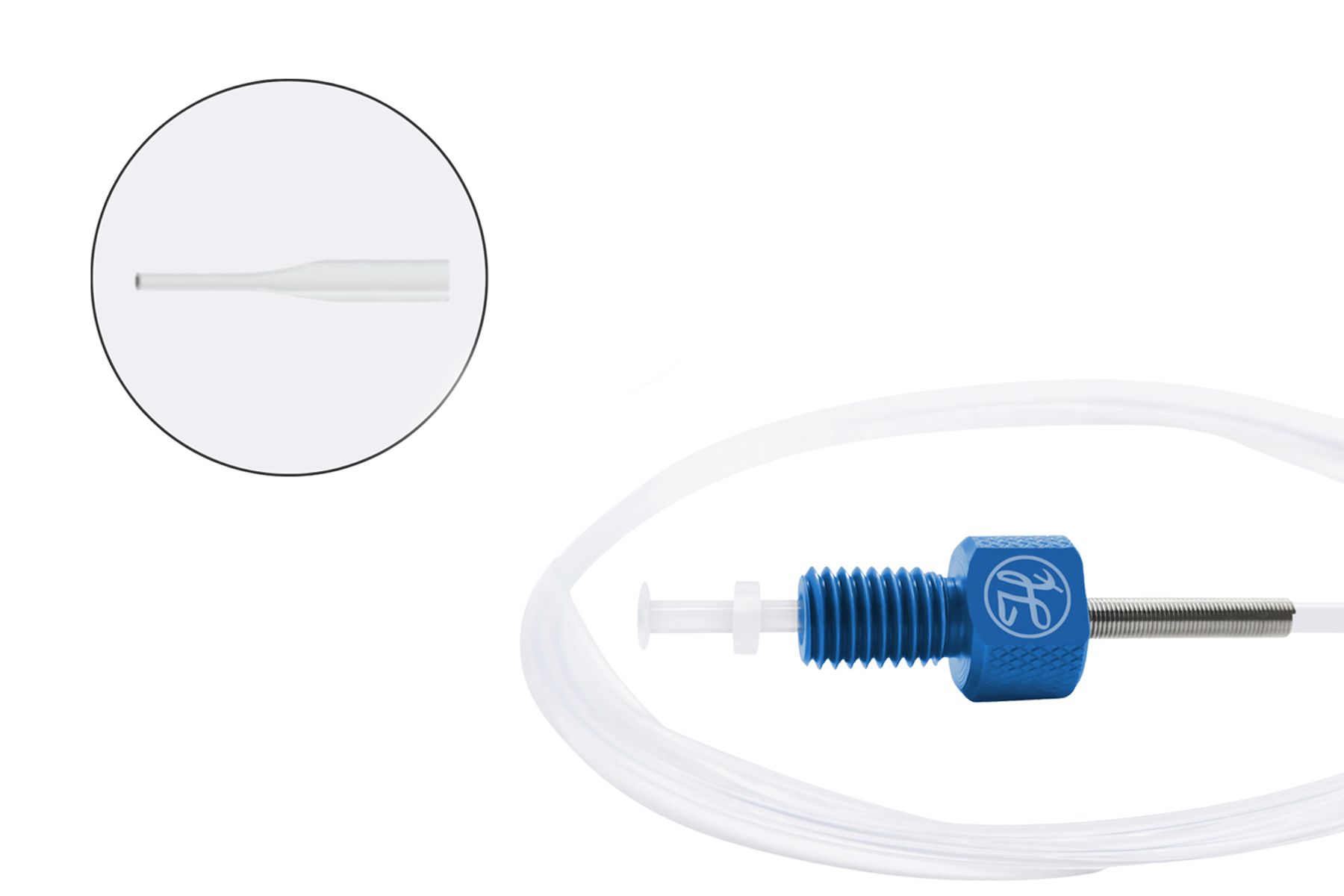

This 18 gauge Dispense Tubing Assembly, PN: 10106147 features one precision machined, ¼”-28 (UNF) PEEK fitting with 54"/ 1372 mm of 18 gauge (0.075" O.D/0.043" I.D, 1.905 mm O.D/ 1.092 mm I.D) FEP tubing and strain relief spring(s). The dispense tubing has a tapered tip designed to optimize accuracy.

Receive More Information

This product is not available for purchase in your region.

18 Gauge Dispense Tubing, Tapered, PN: 10106147 Details

Hamilton's Microlab 700 Dispense Tubing Assembly features one precision machined, ¼”-28 (UNF) PEEK fitting with 54"/ 1372 mm of 18 gauge (0.075" O.D/0.043" I.D, 1.905 mm O.D / 1.092 mm I.D) FEP tubing and strain relief spring(s). The dispense tubing has a tapered tip designed to optimize accuracy. Hamilton’s FEP tubing and PEEK fittings are chemically resistant, temperature resistant, and durable for a leak free connection each time. Choose from a standard stock option or define a custom tubing length.

Delivers Accurate, Targeted Dispensing

Smooth, Low-Impact Delivery of Fluids

Non-Reactive Tubing Material

  • Constructed from FEP (fluorinated ethylene propylene), the tubing is chemically inert and compatible with a wide range of aggressive solvents, acids, and biological reagents.
Scientific Citations

10106147 Specifications

Print
Tubing Material FEP
Gauge 18
Tubing Length 1,372 mm
Length 54"/ 1372 mm
Threads 1/4"-28 UNF
Fitting Color Blue
Fitting Material PEEK

10106147 Resources

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

IS and HV fittings

FAQ

What is the difference between IS and HV Fittings?

IS stands for Inch Series, whereas HV stands for Hamilton Valve.

FAQ

Which tubing gauge do I need for my Microlab 600?

The Microlab 600 fill and dispense tubing assemblies are available with 12 or 18 gauge tubing.
Difference between single and dual hub tubing assemblies

FAQ

What is the difference between single and dual hub tubing assemblies?

In this FAQ, we help you answer what is the difference between single and dual hub tubing assemblies?

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

IS and HV fittings

FAQ

What is the difference between IS and HV Fittings?

IS stands for Inch Series, whereas HV stands for Hamilton Valve.

FAQ

Which tubing gauge do I need for my Microlab 600?

The Microlab 600 fill and dispense tubing assemblies are available with 12 or 18 gauge tubing.
Difference between single and dual hub tubing assemblies

FAQ

What is the difference between single and dual hub tubing assemblies?

In this FAQ, we help you answer what is the difference between single and dual hub tubing assemblies?
