18 Gauge Fill Tubing, Blunt, PN: 10106145

1219 mm, 18 gauge (1.905 mm O.D/ 1.092 mm I.D), fitting color: blue

Part # 10106145

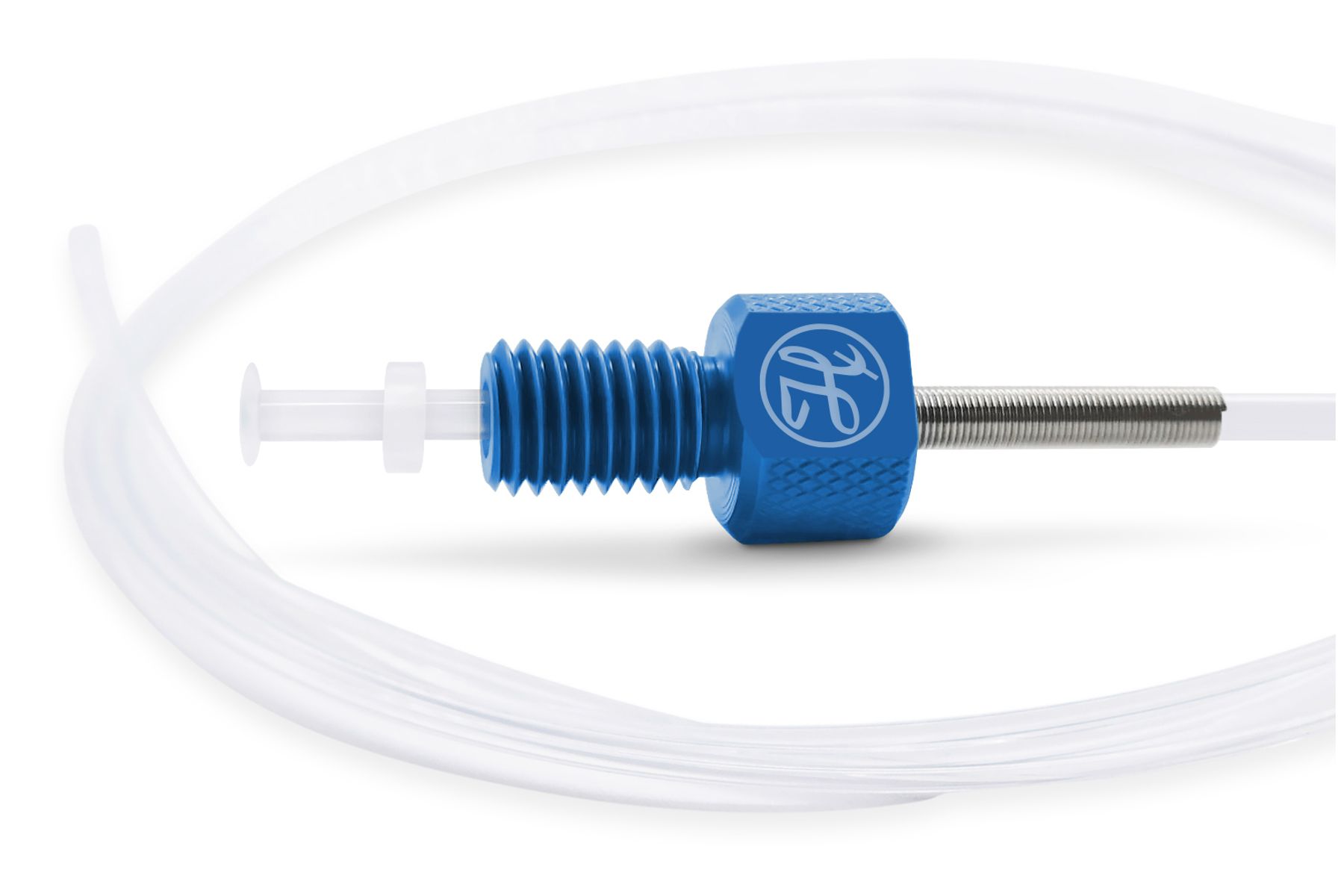

This 18 gauge Fill Tubing Assembly, PN: 10106145 features  one precision machined, ¼”-28 (UNF) PEEK fitting with 48"/ 1219 mm  of 18 gauge (0.075" O.D/0.043" I.D, 1.905 mm O.D / 1.092 mm I.D)  FEP tubing and strain relief spring(s). The fill tubing has a blunt end and is designed to go into a reservoir of liquid.

Receive More Information

This product is not available for purchase in your region.

18 Gauge Fill Tubing, Blunt, PN: 10106145 Details

Hamilton's Microlab 700 Fill Tubing Assembly features one precision machined, ¼”-28 (UNF) PEEK fitting with 48"/ 1219 mm  of 18 gauge (0.075" O.D/0.043" I.D, 1.905 mm O.D / 1.092 mm I.D) FEP tubing and strain relief spring(s). The fill tubing has a blunt end and is designed to go into a reservoir of liquid. Hamilton’s FEP tubing and PEEK fittings are chemically resistant, temperature resistant, and durable for a leak free connection each time. Choose from a standard stock option or define a custom tubing length.

Ideal for Reservoir-Based Fluid Handling

Minimizes Sample Contamination

Non-Reactive Tubing Material

  • Constructed from FEP (fluorinated ethylene propylene), the tubing is chemically inert and compatible with a wide range of aggressive solvents, acids, and biological reagents.
Scientific Citations

10106145 Specifications

Print
Tubing Material FEP
Gauge 18
Tubing Length 1,219 mm
Length 48"/ 1219 mm
Threads 1/4"-28 UNF
Fitting Color Blue
Fitting Material PEEK

10106145 Resources

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Difference between single and dual hub tubing assemblies

FAQ

What is the difference between single and dual hub tubing assemblies?

In this FAQ, we help you answer what is the difference between single and dual hub tubing assemblies?

FAQ

Which tubing gauge do I need for my Microlab 600?

The Microlab 600 fill and dispense tubing assemblies are available with 12 or 18 gauge tubing.
IS and HV fittings

FAQ

What is the difference between IS and HV Fittings?

IS stands for Inch Series, whereas HV stands for Hamilton Valve.
