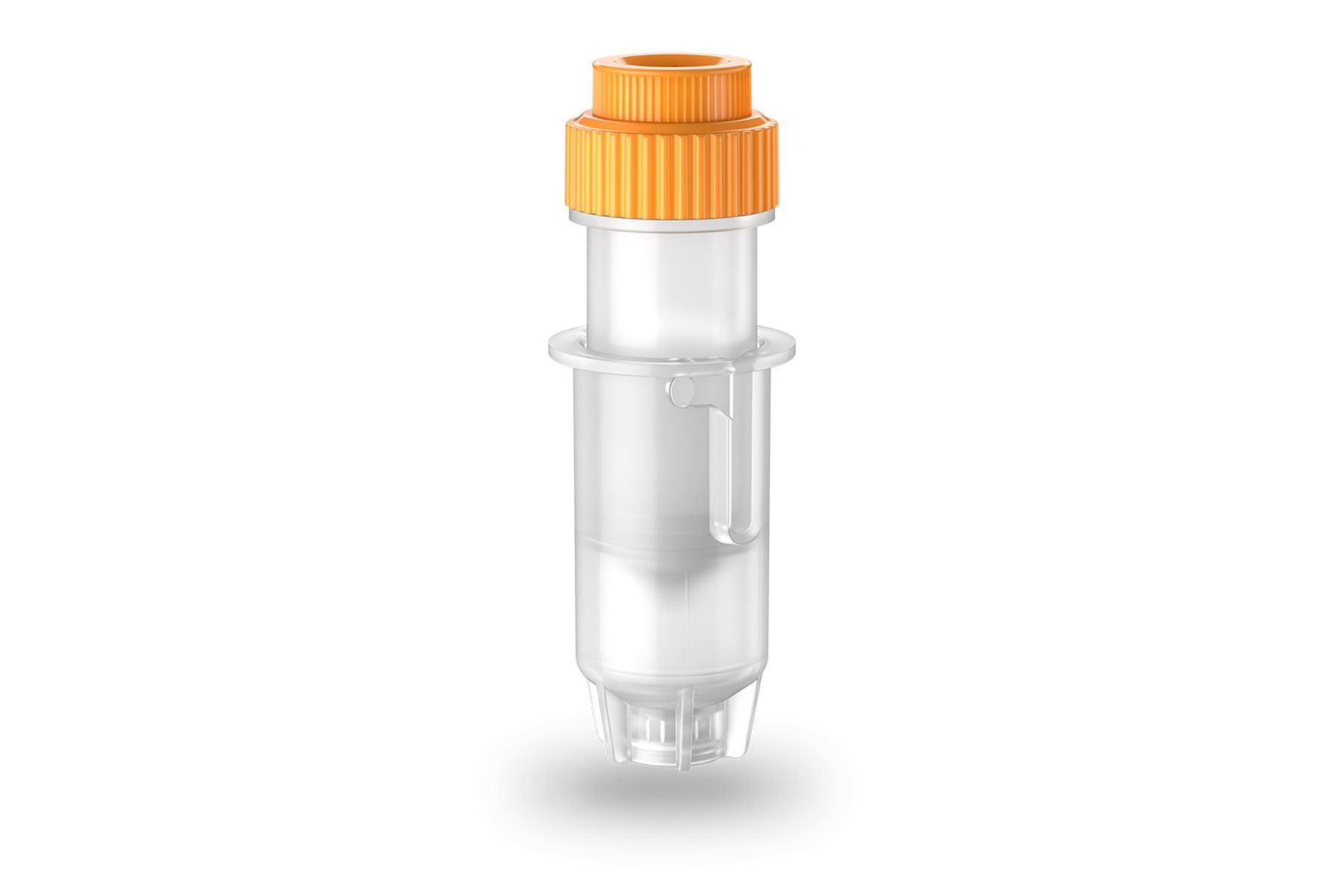

AutoLys Tubes

Filtered

Part # 235478

​​The AutoLys Tube is a fully enclosed tube-in-tube assembly for automated sample lysis and nucleic acid extraction on the AutoLys STAR assay ready workstation. The tubes are tested to meet or exceed industry-leading purity standards.

Receive More Information

Minimum: 1, Maximum: 1000

Commonly Grouped Accessories

AutoLys Tubes Details

AutoLys Tubes are purpose-built to automate tedious sample lysis and nucleic acid extraction steps when processing DNA. This novel tube assembly consists of a lid, an inner tube with a filter, and an outer tube with a 2D barcode.

Common applications Genomics, Nucleic Acid Extraction, Biobanking, In Vitro Diagnostics, Pre-Analytics & Primary Sample Processing

Strengthen yield, reproducibility, and overall DNA purity

Reduce time spent on manual sample lysis and nucleic acid extraction steps

Increase sample throughput with full sample chain of custody

Tube-in-Tube Assembly

  • Threaded lid is automatically manipulated using the AutoLys Channel on the AutoLys STAR assay ready workstation.
  • Inner tube contains 2 mm thick membrane filter. Non-filter version available in U.S. and Canada only.
  • Outer tube holds cleared lysate and is 2D barcoded to support sample tracking.

Quality Benchmarks

  • Tested to be free from DNase, RNase, endotoxins, human DNA, PCR inhibitors, and ATP.
  • Sterilized via ethylene oxide.

AutoLys Tubes Specifications

Print
Purity Level Free of DNase, RNase, Pyrogen (endotoxins), Human DNA, ATP, and PCR inhibitors
ANSI/SLAS N/A
Barcode Yes
Shelf Life 5 years after production date
Case Size Case of 500 tubes and caps (100 tubes per bag/100 caps per bag)
Tube Processing Temperature 15 °C to 50 °C (Lift and Lock, Decapping and Recapping)
Centrifugation 2,000 x g 10 minutes in Lift and Lock Position
Maximum Lysis Temperature 70 °C
Working Volume Range 200 µL to 500 µL
Tube Height 43.7 mm
Tube Height in Lift and Lock Position 53.3 mm
Membrane Thickness 2 mm
Tube Material Polypropylene - PP (cap and tube)
Recycling Code 5
Contains Lubricant Yes
CE, IVDR Compliant Yes
Sterilization Treated with ethylene oxide
Filter Yes
