Front view of the entry level platform for nanoliter dispensing and spotting for diagnostics

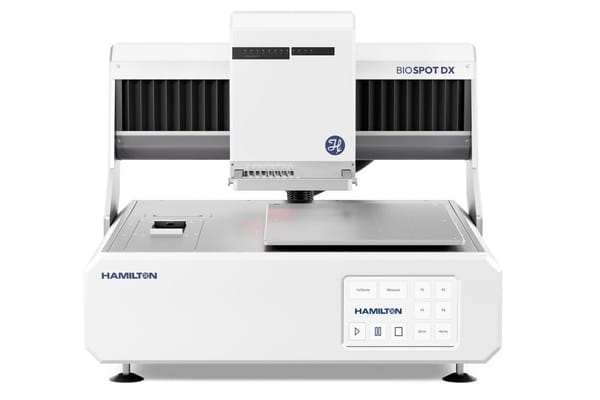

The BIOSPOT DX platform front view

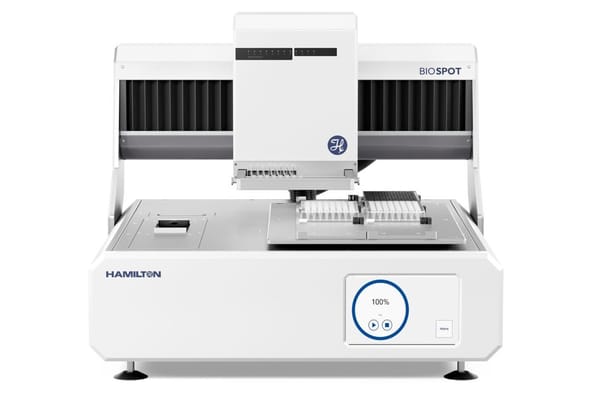

BIOSPOT Workstation for drug discovery
BIOSPOT® ARC

Compact benchtop dispenser for R&D labs, supports up to 2 channels and either 2 microplates or a 190×130 mm flat deck for early-stage assay testing.

BIOSPOT® DX

A flexible spotting platform designed to dispense ultra-low volumes onto virtually any substrate, ideal for biosensors, lateral flow assays, microfluidic devices, and diagnostic chip manufacturing.

BIOSPOT® Workstation

Specializes in microplate applications, achieving unparalleled accuracy in dispensing nanoliter volumes for compound screening and assay miniaturization.

Height 23.3 cm (9.17 in)
Height 50 cm (1 ft, 7.69 in)
Height 50 cm (1 ft, 7.69 in)
Width 41.8 cm (1 ft, 4.46 in)
Width 58 cm (1 ft, 10.83 in)
Width 58 cm (1 ft, 10.83 in)
Depth 67.1 cm (2 ft, 2.42 in)
Depth 90 cm (2 ft, 11.43 in)
Depth 90 cm (2 ft, 11.43 in)
PIPEJET®
SIJET
SMARTDROP®
VALVEJET
PIPEJET®
SIJET
SMARTDROP®
VALVEJET
PIPEJET®
SIJET
SMARTDROP®
VALVEJET
PIPEJET up to 2
PIPEJET up to 12
PIPEJET 8
SIJET up to 2
SIJET up to 12
SIJET n/a
VALVEJET n/a
VALVEJET up to 4
VALVEJET n/a
Maximum Supported Configuration 2
Maximum Supported Configuration 12
Maximum Supported Configuration 8
Channel Spacing Customizable
Channel Spacing Customizable
Channel Spacing Standard 9mm
Capacity (ANSI/SLAS Plates) 2
Capacity (ANSI/SLAS Plates) —
Capacity (ANSI/SLAS Plates) 6
Addressable Area 190 × 125 mm
Addressable Area 251 x 380 mm
Addressable Area —
Aspiration from Source Plate 1 n/a
Aspiration from Source Plate 1 Configurationd-dependent
Aspiration from Source Plate 1 Yes
SMARTDROP Optional
SMARTDROP Optional
SMARTDROP Included
TOPVIEW Optional
TOPVIEW Included
TOPVIEW Included
Ionizer n/a
Ionizer Optional
Ionizer Included
Absolute Positioning Accuracy 200 µm
Absolute Positioning Accuracy 50 µm
Absolute Positioning Accuracy 50 µm
Precision / Step Width 20 µm
Precision / Step Width 10 µm
Precision / Step Width 10 µm
Axis Speed X/Y: 120 mm/s ; Z: 30 mm/s
Axis Speed X/Y: 250 mm/s ; Z: 30 mm/s
Axis Speed X/Y: 250 mm/s ; Z: 30 mm/s
Computer User-provided
Computer Integrated
Computer Integrated
Software BFX Control
Software BFX Control
Software LifeLAB
Manufacturing Point of Care Tests Microneedle Coating
Manufacturing Point of Care Tests Microneedle Coating
Cell Biology Cell-Based Assays Pharma & Biopharma Drug Discovery ADME/DMPK Agri-Food and Beverage Agrigenomics In Vitro Diagnostics Toxicology
Talk to Our Experts
Talk to Our Experts
Talk to Our Experts

1 Aspiration from source plate; also supports dispensing pipe cleaning when enabled.
