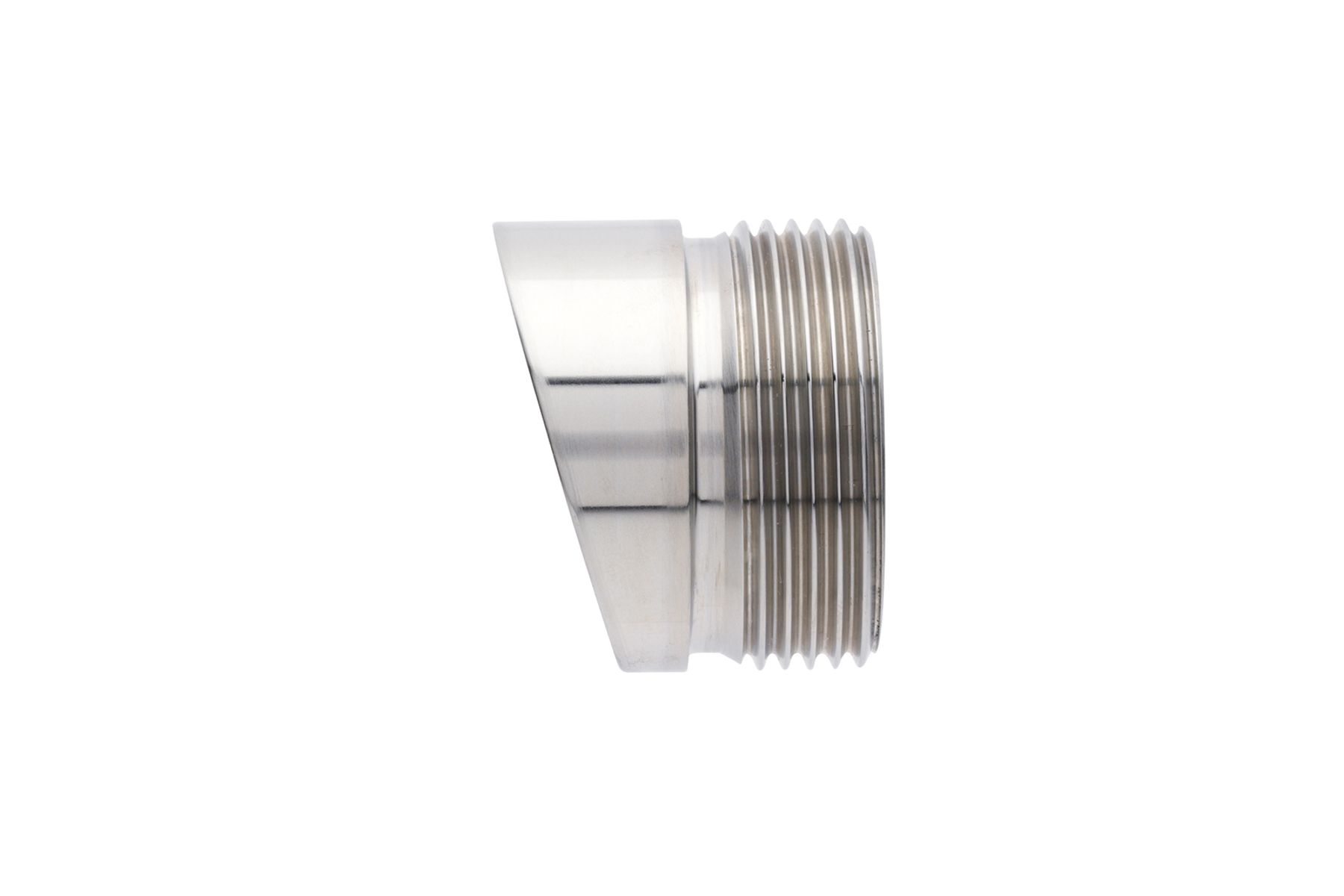

Safety Socket 1.4404-15-25

Part # 242570

Ensure optimal compatibility, hygienic sealing, and accurate measurements by using this robust 1.4404 or 1.4435 stainless steel safety sensor socket with a 25mm, 50mm, or 55mm O-ring position and flat end, designed for secure and leak-proof integration with hygienic housings.

Buy Now

Price

$

Minimum: 1, Maximum: 1000

Commonly Grouped Accessories

Safety Socket Details

These Safety Sockets are hygienic weld-in sockets specifically designed for hygienic housings such as the FlexiFit Bio. They offer versatility with availability in three different O-ring positions to meet various standards, and you can select between two types of stainless steel and two distinct end angles. The unique design of the Safety Socket narrows at the O-ring positions, ensuring a tight seal only when the housing's O-ring is precisely located. This safety feature is particularly valuable in pressurized processes, as any dripping process medium serves as an early warning, indicating that the housing should not be fully loosened. Consequently, these Safety Sockets are suitable for a broad spectrum of applications and installation requirements. When used in combination with a Hamilton housing and sensor, they guarantee the highest level of compatibility, hygienic sealing, and the most accurate measurement results.

Common applications Pharma & Biopharma, Water, Energy, & Environment, Power Generation, Agri-Food and Beverage, Novel Food Bioprocessing

 Leakage occurs before complete housing release.

Features a smooth, hygienic surface finish.

Available in 3 O-ring positions and 2 stainless steels.

Safety Design

  • Engineered to provide a crucial safety feature: the socket is designed to leak process medium before the housing is fully released.
  • This acts as a clear visual warning in pressurized systems, allowing for controlled intervention and preventing sudden, potentially hazardous releases.
  • This proactive leakage mechanism significantly enhances operational safety and minimizes the risk of spills or exposure.

Weld-in Socket

  • Constructed as a weld-in socket, ensuring a seamless and crevice-free integration into your system.
  • This design eliminates potential entrapment areas for bacteria and contaminants, making it ideal for applications demanding the highest standards of hygiene, such as in the pharmaceutical, food and beverage, and biotechnology industries.

O-ring Positioning Options

  • Available with a 25mm O-ring position, catering to specific dimensional requirements and compatibility with various hygienic housings and standards.
  • This precise O-ring placement is critical for achieving a reliable and leak-proof seal, ensuring the integrity of your process and the accuracy of your sensor readings.
  • The availability of three different O-ring positions across the product line provides flexibility for diverse installation needs.

Material Durability

  • Crafted from high-quality 1.4404 stainless steel, offering exceptional resistance to corrosion, chemicals, and high temperatures.
  • This robust material choice guarantees a long service life and reliable performance even in demanding environments, reducing the need for frequent replacements and minimizing downtime.

  • The measurement technology from Hamilton is hard to beat in terms of its measurement accuracy and reliability.

    The measurement technology from Hamilton that is used in our brewery is hard to beat in terms of its measurement accuracy and reliability. The planning security and cost stability with the subscription is very attractive and important to us. Hamilton offers great support and is always open to customer requests.

    Holger Bruckes
    Deputy head of Quality Assurance Mönchengladbach Brewery, Branch of OETTINGER Brewery GmbH

  • I could not be more pleased with my experience with Hamilton!

    My company has been using Hamilton probes for years and have always been happy with their performance! The team is always very helpful in trouble shooting issues and answering any questions that we may have about our probes. Overall, I could not be more pleased with my experience with Hamilton!

    Abigail Mann
    Bioprocessing Fermentation Associate at Heliae Development

Safety Socket 1.4404-15-25 Specifications

Print
Process Connection Welded / G 1¼"
Max. Diameter 42 mm
Serial Number No
Certificate Yes, 3.1 certificate with heat number
ATEX Approval II 1/2 G Ex ia IIC T4/T5/T6 Ga/Gb
II 1/2 D Ex ia IIIC T x °C Da/Db
IECEx Approval II 1/2 G Ex ia IIC T4/T5/T6 Ga/Gb
II 1/2 D Ex ia IIIC T x °C Da/Db
EAC Ex Approval II 1/2 G Ex ia IIC T4/T5/T6 Ga/Gb
II 1/2 D Ex ia IIIC T x °C Da/Db
UKEx Approval II 1/2 G Ex ia IIC T4/T5/T6 Ga/Gb
II 1/2 D Ex ia IIIC T x °C Da/Db
Autoclavable Yes
Steam Sterilizable Yes
CIP Yes
Operating Temperature Range -30 to 160 °C
Max. Pressure bar g 50 bar
Product Family Safety Sockets
Housing Material Stainless Steel 1.4404
O-ring Position (OP) 25 mm
End Angle 15°
Compliance Details See Material Specification document
Max. Total Length 35 mm

Safety Socket 1.4404-15-25 Resources

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

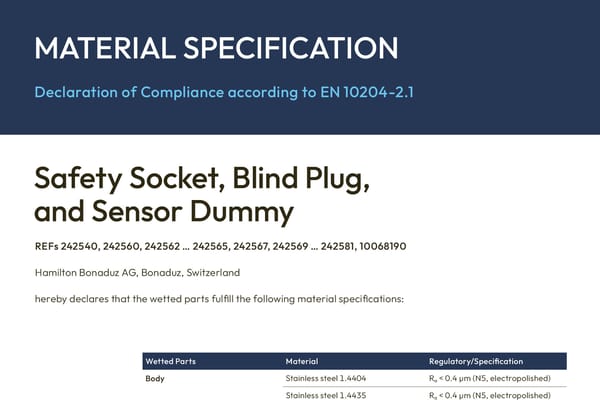

Material Specification document header for Safety Socket, Blind Plug, and Sensor Dummy by Hamilton Bonaduz AG
