VisiFerm ECS Cables

Hamilton genuine cables for VisiFerm ECS DO sensors provide power for the sensor, as well as, a conventional nanoAmp (nA) signal for bioreactors that are designed for polarographic DO sensors.
-
Powered Bioreactor Controller Cables (for replacement of polarographic DO)
-
ECS Power Cables (ArcAir to PC or passive hard-wired connections)
-
VP8 Cables (VisiFerm ECS connection to powered devices)
Powered vs. non-powered cables
Powered Cables
Hamilton Visiferm ECS DO sensors have built-in electronics within the sensor head. The electronics require a separate power supply to function, in addition to wires for signal transmission. 12 to 24V power supplied to the sensor depending on its source. If power is available at the process control system then the cable can be directly wired for power and signal using bare leads.
In many cases, such as bioreactor controllers, there is no power available at the device. These applications require a power supply on a third leg of the cable, separate from the sensor or the device. The connector at the sensor will be a VP8 cable connector. The connection at the opposite end can vary from either bare leads to specialized connectors such as BNC, Binder or Lemo depending on the controller manufacturer and their pin configuration.

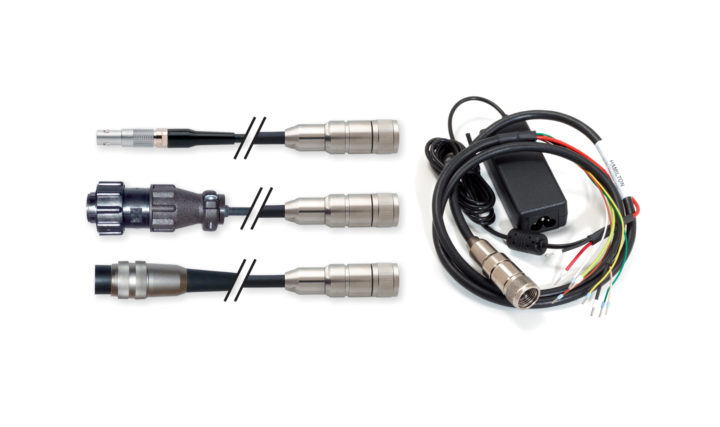

Example - A powered cable such as Ref 355245-XX shown above has a VP connector for the sensor, a Lemo connector that works with certain bioreactors, and a 3rd leg with power supply that provides external power to the VisiFerm sensor.
Since external power for sensors is a common requirement of many bioreactor controllers Hamilton has developed a Bioreactor Cable Guide. Click below to learn more.
Non-Powered Cables
Non-powered cables have dedicated wires for transmitting signals between the sensor and transmitter. The ECS sensor signal (nAmp) represents the measurement value. The opposite end of the cable is typically bare wire leads for connection to a transmitter and power supply. Special versions of these cables are also available for connection to bioreactors.

Guides
Resources
-
Catalog - Process Analytics
Download the Process Analytics sensor catalog to learn about the complete offering of Hamilton process sensors and accessories.
-
What is the -XX designation at the end of the cable part number?
Powered cables have a -XX designation which defines the plug type for different regions of the world. 01 for the European Union, 02 for Switzerland, 03 for the United States, 04 for the United Kingdom, 05 for Australia / New Zealand.
-
VP Cable Options
Hamilton offers several options for VP (Variopin) cables with open end connections. This Knowledge Base article explains the differences between these cables.
