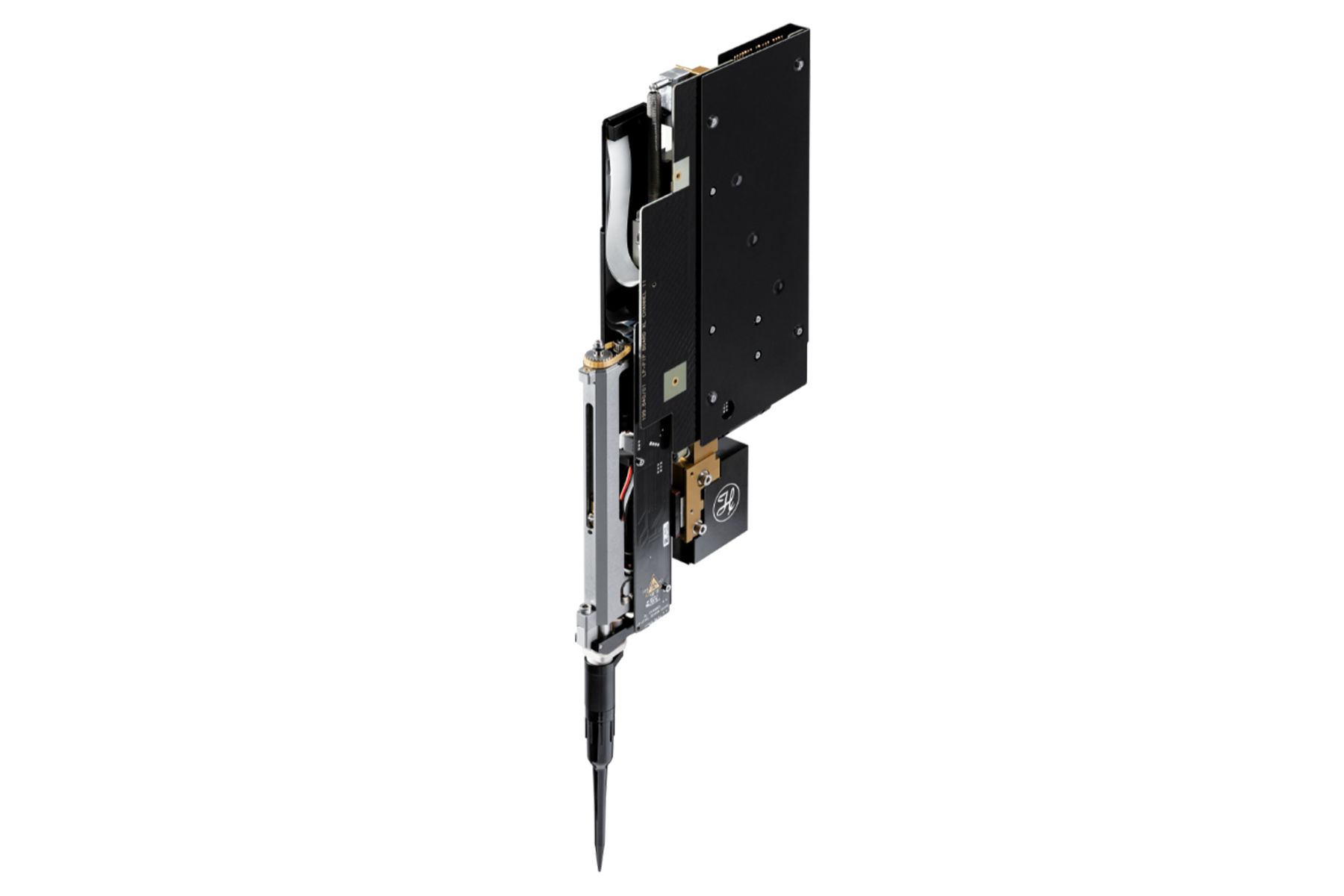

ZEUS 5mL, PN: 10106532

On-Board Intelligent Air displacement pipetting 5mL channel

Part # 10106532

ZEUS 5 mL is a liquid handling pipetting channel (PN: 10106532) designed for integration into instruments. One representative feature of the product is air displacement pipetting technology which enables the use of disposable tips by limiting cross-contamination and sample carry-over.

Receive More Information

This product is not available for purchase in your region.

Commonly Grouped

ZEUS 5mL, PN: 10106532 Details

Hamilton's ZEUS 5mL (Part: 10106532) is based on an innovative air-displacement technology. Air displacement enables the use of consumable pipetting tips which limits cross-contamination and sample carry-over. The plunger seal is positioned at the lowest possible position to limit the size of the air cushion above the liquid. This feature limits the influence of the environment and of the liquid properties for improved accuracy and precision.

The ZEUS 5mL pipetting channel has the ability to pipette in 18 mm pattern (face to face) with distance between two modules side by side of 36 mm. It is able to dispense volumes from 10 μL to 5mL with a maximum speed of 2500 μL/seconds ensuring high precision and accuracy. The 5mL channel is designed to travel up to 199 mm on Z-axis, which offers a wide range of possible Z-positions in the instrument.

Easy to be integrated by Hamilton CAN protocol

No longer require the integration of Z-axis in the instrument.

ZEUS 5mL, PN: 10106532 Specifications

Print
Weight 3.14 lbs (1.42 kg)
Power Requirements 40V± 5%, 1A
Communication Interface CAN (Hamilton protocol)
Operating Temp High 35 °C (95 °F)
Operating Temp Low 15 °C (60 °F)
Operating Humidity 30-85% (non-condensing, indoors)
Storage Temp High 70 °C (158 °F)
Storage Temp Low -25 °C (-13 °F)
Storage Humidity 40% to 80%, non-condensing
z-Drive Excursion ≥ 200 mm
z-Drive Resolution ≤ 0.015 mm/step
z-Drive Maximum Speed 128 mm/sec
Volume Range 10 - 5,000 µL
Pipetting Resolution ≤ 0.05 μl/step
Maximum Pipetting Speed 2500 μl/sec
Pipetting Mode Single and aliquot dispensing
Tip Detection Yes
Liquid Level Detection Pressure-based (pLLD) and capacitive detection (cLLD)
Pipetting Security Qualitative Pipette Monitoring (QPM) Anti-Droplet Control (ADC)
Operating Noise < 60 dBA, Indoor use only
Device Addressing up to 31 modules on a single CAN bus
RoHS 3 Compliant Yes
