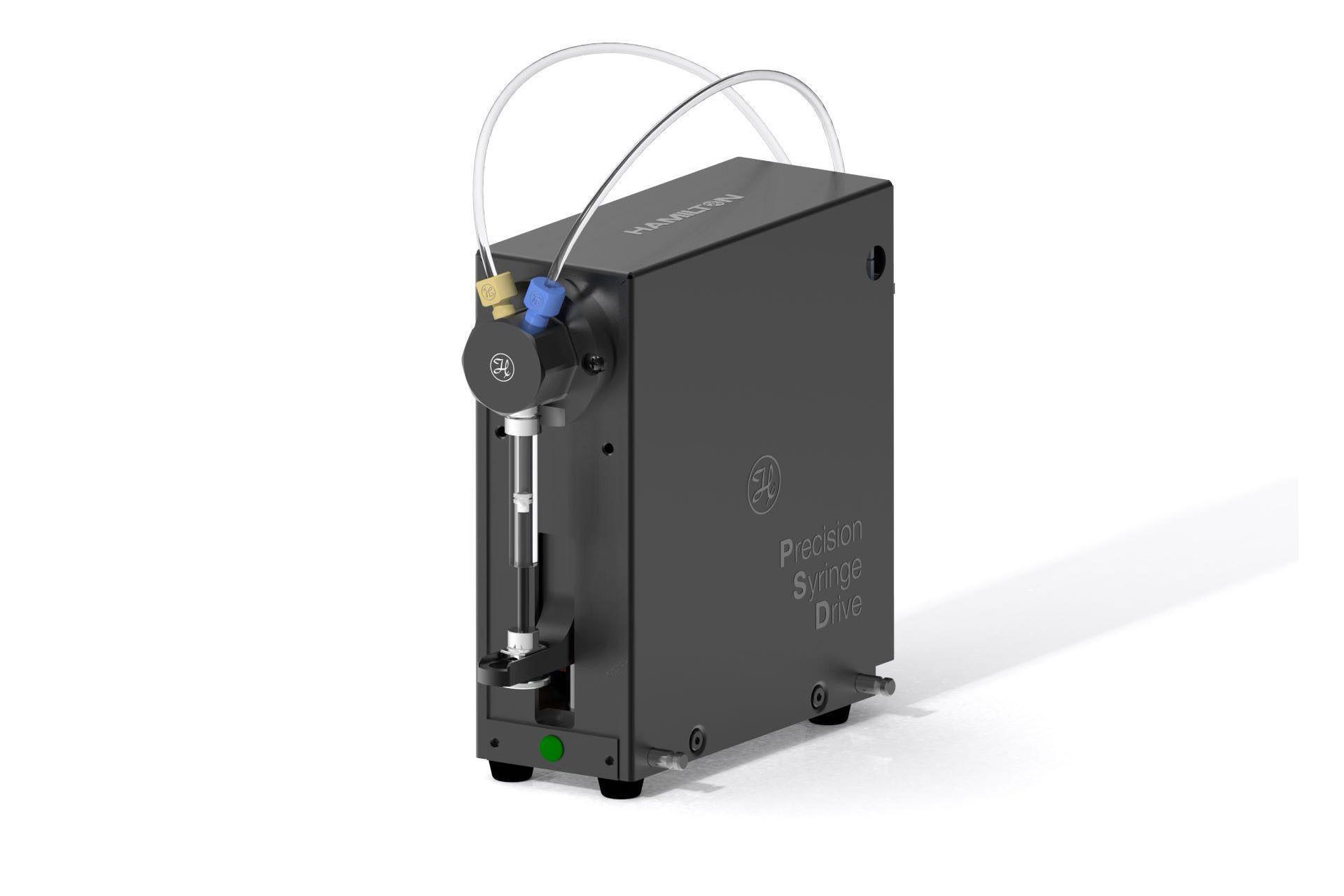

PSD/4 Encased Pumps
Ideal for evaluating performance before scaling up to integrated OEM solutions.
Compact Solution for Precise Liquid Handling
The PSD/4 Encased Syringe Pump offers precise liquid handling in a compact, stand-alone format ideal for academic, research, and low-volume industrial use. Designed to support testing, prototyping, and application development, it allows users to experience Hamilton’s precision before moving into full integration.
This powerful syringe pump is designed to handle all standard liquid handling functions including dispensing, serial dispensing, and diluting, having a stroke length of 30mm. Its small footprint makes it ideal for laboratories and production lines where space saving is important.
What you can expect
View all PSD/4 Encased Pumps
Planning to Integrate Hamilton’s PSD Pumps?
Get hands-on with Hamilton’s OEM Discovery Kit, a complete set designed to help you evaluate the PSD Encased syringe pump in real-world conditions.
The kit includes everything you need for testing, integration, and setup, plus a complimentary session with a Hamilton Product Manager for expert guidance.

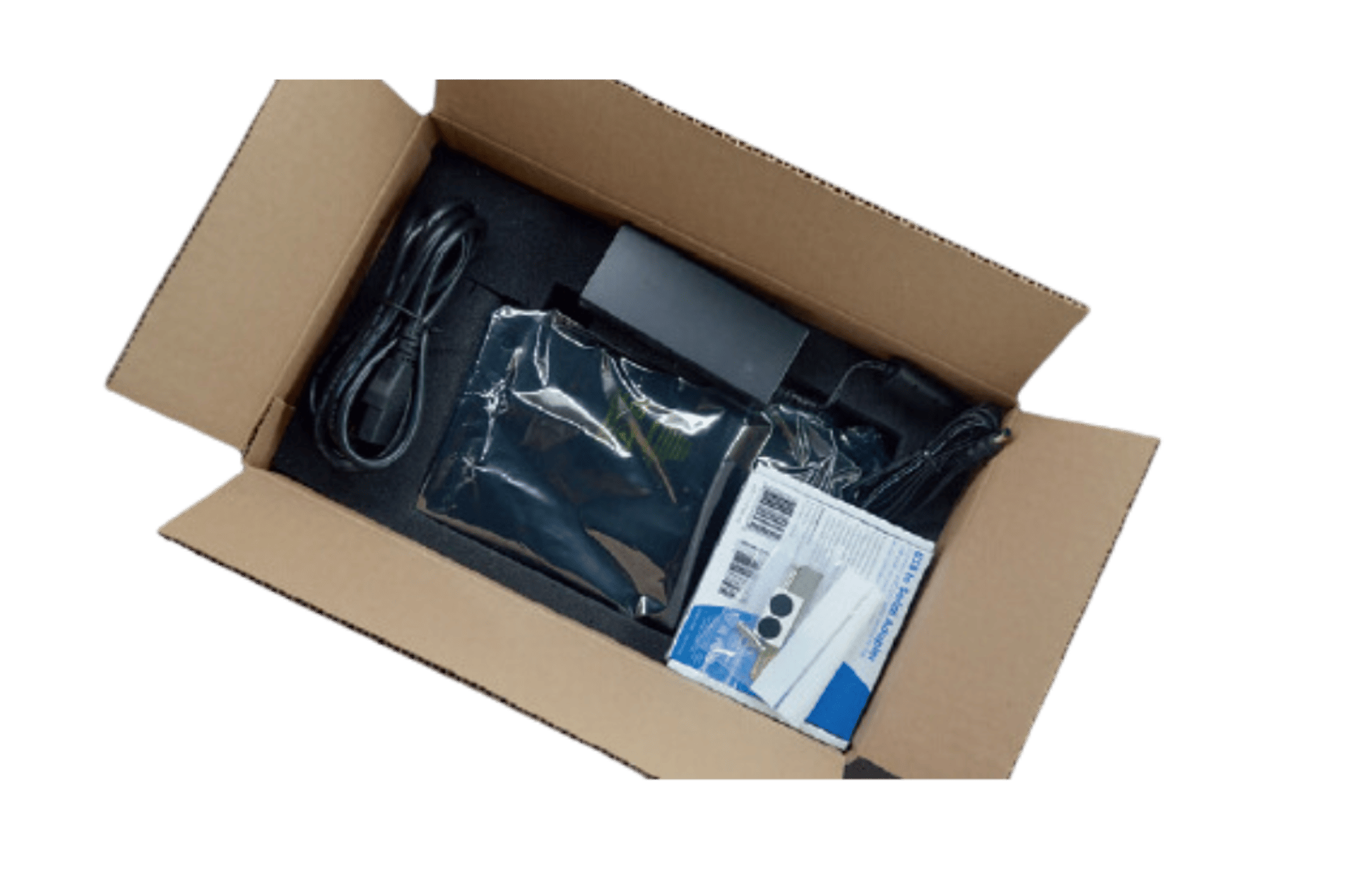

What’s Included with Your PSD/4 Syringe Drive
Inside the box, you will discover not only the PSD/4 itself but also a range of additional accessories to support your syringe pump usage:
• Country specific power cord
• Power adapter 24V
• USB to RS232 converter
• Locking pin x 2
• Adhesive caps x 2
• Board to board connector
• Memory stick with SW and manual
With this complete package, you have everything you need to start utilizing the precision and versatility of the PSD/4 in your laboratory or research setting.
Proven performance and longevity

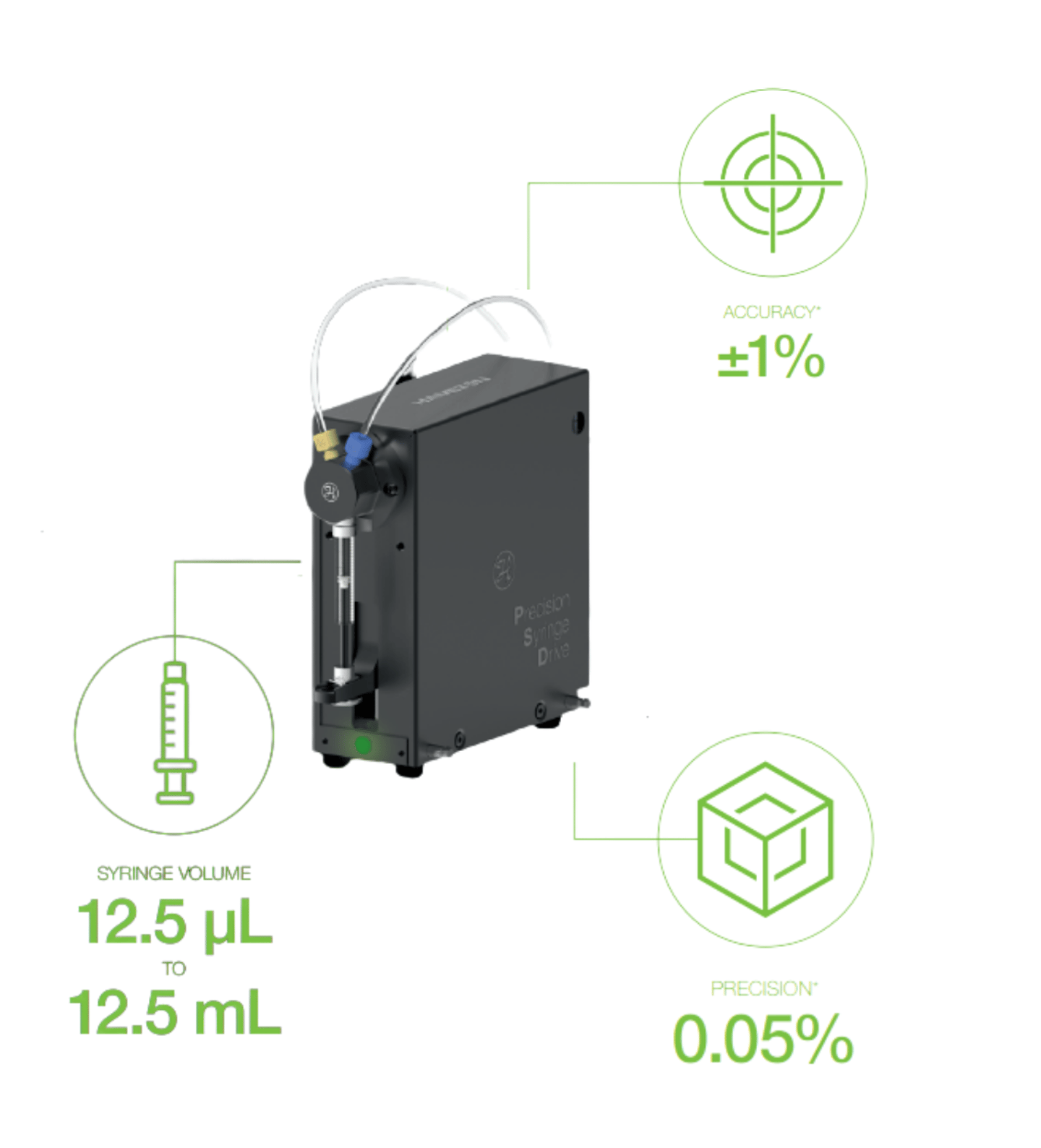

With an impressive accuracy of ±1% syringe volume, ranging from 12.5 μL to 12.5 mL, and a precision of 0.05%, the PSD/4 ensures precise and reliable liquid dispensing for a wide range of volumes.
Its robust construction and meticulous engineering guarantee consistent and accurate results, making it a trusted companion for various laboratory and research applications.
A half-height syringe pump for compact applications
The precision-manufactured body of the PSD/4 syringe pump offers a sturdy and rigid platform, ensuring optimal performance and minimizing overall system hysteresis. This results in improved accuracy and reliability in syringe plunger positioning.
Additionally, the self-lubricating and wear compensating lead nut further enhances the syringe pump's capabilities, providing unparalleled precision and smooth operation. With the PSD/4, you can confidently achieve precise and consistent liquid dispensing for your applications, making it an indispensable tool in your laboratory or research setup.
Consumables and Accessories
Enhance your PSD/4 setup with a curated range of compatible syringes, valves, cables, and accessories. These components ensure optimal performance and allow you to customize the pump for your specific liquid handling tasks.
Pump Specifications
| PSD/4 Encased Type | Highest Resolution (steps/stroke) | Fastest/Slowest (time/stroke) | Size = D X H X W (mm) | Linear Force Capability (lbf) | Valve Torque Capability (in oz) | Weight (lbs) |
|---|---|---|---|---|---|---|
| Standard | 24,000 | 1 sec / 50 min | 128 x 146 x 51 | 22 lbf / 9.98 kgf | 25 | 1721 |
| Smooth Flow | 192,000 | 14 sec / 8 h | 128 x 146 x 51 | 23 lbf / 10.43 kgf | 25 | 1721 |
| High Lift Force | 54,857 | 2.3 sec / 114 min | 128 x 146 x 51 | 40 lbf / 18.14 kgf | 25 | 1721 |
