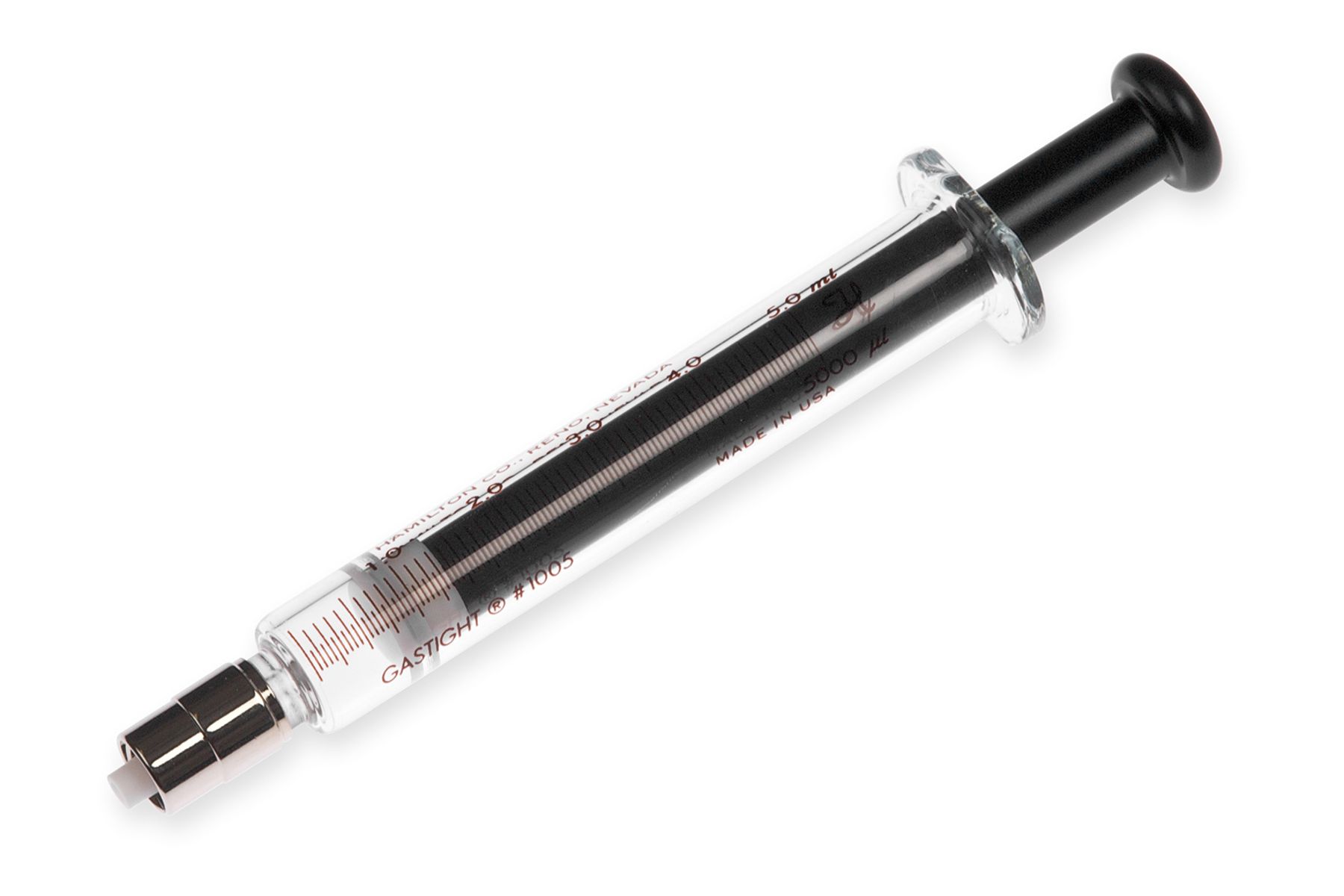

5 mL, Gastight Instrument Syringe, Luer Lock (TLL), PN: 81520

Needles Sold Separately

Part # 81520

This 1000 series syringe is a 5 mL Gastight #1005 syringe designed to manually dispense heterogeneous, volatile, and viscous samples. Commonly used with instruments, this syringe (PN: 81520) has a PTFE Luer Lock (TLL) termination.

Buy Now

Price

$

Minimum: 1, Maximum: 1000

5 mL, Gastight Instrument Syringe, Luer Lock (TLL), PN: 81520 Details

Hamilton's 1000 series, Gastight Model 1005 Luer Lock (TLL) Instrument Syringe with an X-style plunger is designed for manually dispensing both liquids and gases. It was designed for use in a variety of instruments, including the PSD/6,  Kratel Partoscope FD, Tecan Diluters and Samplers. Compatible with standard female Luer Lock connections. The 1000 series is a mid-volume Gastight syringe. They feature a polymer plunger tip that creates a leak-free seal. With a wide range of volume capabilities, terminations, needle options, and plunger styles, this syringe series provides exceptional flexibility and versatility. Hamilton syringes ensure an accuracy of ± 1%, superior durability, and are manufactured with the highest quality chemically resistant materials.

Compatible with Kel-F and Metal Hub Needles

Polymer Plunger Tip

  • A white polymer plunger tip effectively wipes the glass barrel, creating a leak-free seal.
  • Ensures a Gastight performance, suitable for liquids and gases.

X-Style Plungers

  • The plunger button features a 6-32 threaded hole, commonly used for mounting the syringe into a syringe pump.
  • Syringes with X-Style Plunger Buttons can also be used manually.
Scientific Citations

  • Gastight Syringes Ensures Integrity of Environment Sensitive Catalysts (or Samples)

    For such, we utilize highly reactive catalysts that are in many cases air and moisture-sensitive. Gastight Hamilton syringes are essential to maintaining the catalyst integrity and, therefore, ensuring reproducible and trustable results.

    Stella A. Gonsales
    Assistant Professor, University of Chemistry and Technology Prague | Department of Polymers

5 mL, Gastight Instrument Syringe, Luer Lock (TLL), PN: 81520 Specifications

Print
Volume 5 mL
Syringe Type Gastight
Syringe Series 1000
Termination PTFE Luer Lock (TLL)
Needle Metal (N) or Kel-F
Gauge No Needle Included
Point Style No Needle Included
Needle Length No Needle Included
Plunger Style X-Style
Fluid Path Borosilicate glass, PTFE
Autoclavable Yes
Gas Sterilizable Yes
Pressure 200 psig (13.8 bar)
Maximum Operating Temperature 80°C / 176°F
Minimum Operating Temperature 10°C / 50°F
Barrel Inner Diameter 0.406 inches (10.3 mm)
Barrel Outer Diameter 0.530 inches (13.5 mm)
Std Needle Dead Volume N/A
Sales Quantity 1 syringe per pack
Stroke Length 60 mm
Syringe Model Number 1005
Plunger Threaded Hole #6-32

5 mL, Gastight Instrument Syringe, Luer Lock (TLL), PN: 81520 Resources

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

HAM Reference Guide Syringes Needles

Catalog

Reference Guide - Laboratory Syringes and Needles

The Syringe and Needle Reference Guide provides detailed information on Hamilton’s full portfolio of syringes and needles. Everything from cleaning to selection charts to help you choose between syringe terminations.
HAM Guide Syringe Use Care

Guide

Syringe Care and Use Guide

Hamilton’s Syringe Care and Use guide outlines the basics of daily syringe use and operation so that scientists and technicians can achieve the highest level of accuracy and precision. Important topics covered include inspection, operating temperature, trapped air, and sample carryover.
HAM Catalog Selecting Right Syringe

Guide

Hamilton Guide to Selecting the Right Syringe

Select the right type of syringe for your manual application. View our syringe size chart and learn more about Hamilton's lab syringe needles in this guide. Top-quality materials and skilled workmanship ensure that our syringes consistently deliver the highest performance for reliable analyses.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Syringe Cleaning Kit

Article

Syringe Sterilization and Disinfecting Guide

Are you curious whether your Hamilton syringe can be sterilized and disinfected via ethylene oxide, autoclavation, or chemical disinfectants? Consult this table of syringe terminations, syringe needles, and tubing types to learn the possible ways to sterilize and disinfect your Hamilton syringe.
Syringes Graduations

Article

Syringe Graduations

Another aspect of proper syringe selection requires knowing the graduations visible on a particular syringe series and volume. This detailed table of data provides scale length, total scale divisions, major graduations, minor graduations, and sub-minor graduations of each syringe series by volume.
Syringe 1800 Series

Article

Syringe Dimensions

See the specific volumes, outer diameter measurements, and inner diameter measurements of all microliter syringes.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Hamilton Syringes

FAQ

Are Hamilton syringes suitable for PFAS testing?

Accuracy of Hamilton syringes 1

FAQ

How can I sterilize my syringe?

Chemical sterilization is the preferred method for all Hamilton products. Autoclaving syringes should only be used as a last resort and only where specifically stated. Syringe sterilization is not straightforward. Not all syringes can be autoclaved.
Accuracy of Hamilton syringes 1

FAQ

What is the difference between Bubble Free Prime (BFP) Syringes and Luer Lock (TLL) Syringes?

For any syringe pump, the key to achieving the most accurate dispenses is eliminating all air from the fluid path. Traditional syringes trap approximately 50 μL of air between the tip of the syringe and the valve. For small syringes, this trapped air is the last to leave the syringe and the first to be drawn back in, making them difficult to prime. The Bubble Free Prime (BFP) syringe features a conical plunger tip which expels the air from the syringe and valve decreasing the number of priming cycles required to eliminate air bubbles from within the flow path.
