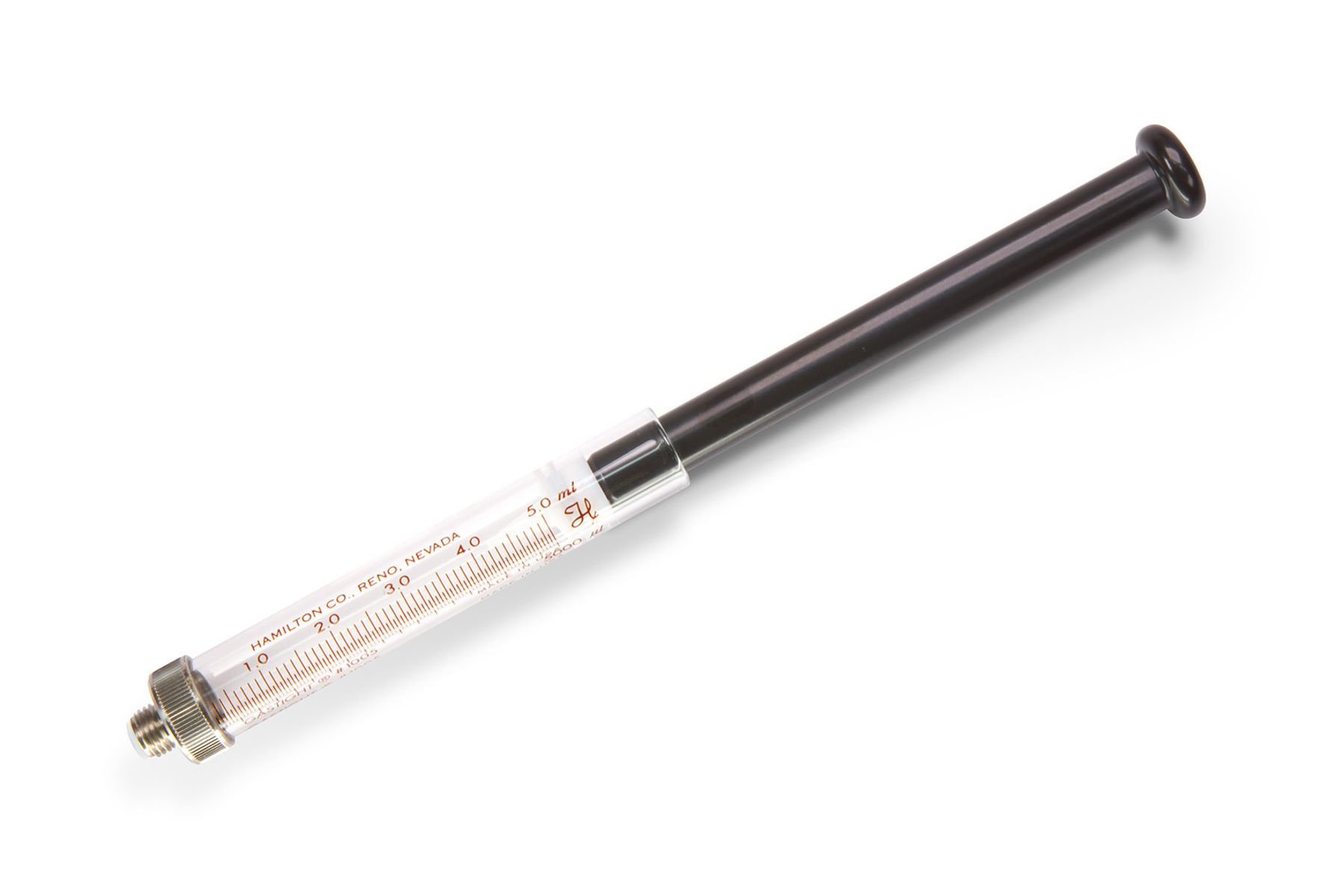

5 mL, Gastight Syringe, Bubble Free Prime (BFP, 5/16"-28), PN: 59000-45

No Needle Available

Part # 59000-45

This 1000 series syringe is a 5 mL Gastight #1005 syringe designed to manually dispense heterogeneous, volatile, and viscous samples. Commonly used with instruments, this syringe (PN: 59000-45) has a Bubble Free Prime™ (BFP, 5/16"-28) termination.

Buy Now

Price

$

Minimum: 1, Maximum: 1000

5 mL, Gastight Syringe, Bubble Free Prime (BFP, 5/16"-28), PN: 59000-45 Details

Hamilton's  1000 series, Gastight, Bubble Free Prime #1005 Bubble Free Prime (BFP, 5/16"-28) Syringes with X-Style plunger features a conical plunger tip which extends through the threaded termination of the syringe and into the valve. This unique design expels the air from the syringe and valve, decreasing the number of cycles required to prime the fluid path. This series of syringes are ideal for dispensing both liquids and gases. They have a polymer plunger tip that creates a leak-free seal.  Hamilton syringes ensure an accuracy of ± 1%, superior durability, and are manufactured with the highest quality chemically resistant materials.

Polymer Plunger Tip

  • A white polymer plunger tip effectively wipes the glass barrel, creating a leak-free seal.
  • Ensures a Gastight performance, suitable for liquids and gases.

Bubble Free Prime Plunger Tip

  • Features a conical plunger tip that extends through the 5/16" -28 threaded termination and into the valve.
  • This unique zero dead volume design expels air from the system and reduces the priming cycles required to eliminate air bubbles.

Scientific Citations

  • Gastight Syringes Ensures Integrity of Environment Sensitive Catalysts (or Samples)

    For such, we utilize highly reactive catalysts that are in many cases air and moisture-sensitive. Gastight Hamilton syringes are essential to maintaining the catalyst integrity and, therefore, ensuring reproducible and trustable results.

    Stella A. Gonsales
    Assistant Professor, University of Chemistry and Technology Prague | Department of Polymers

5 mL, Gastight Syringe, Bubble Free Prime (BFP, 5/16"-28), PN: 59000-45 Specifications

Print
Volume 5 mL
Syringe Type Gastight, Bubble Free Prime
Syringe Series 1000
Termination Bubble Free Prime™ (BFP, 5/16"-28)
Needle No Needle Available
Plunger Style X-Style
Fluid Path Borosilicate glass, PTFE, PFA
Autoclavable No
Gas Sterilizable Yes
Pressure 200 psig (13.8 bar)
Maximum Operating Temperature 80°C / 176°F
Minimum Operating Temperature 10°C / 50°F
Barrel Inner Diameter 0.406 inches (10.3 mm)
Barrel Outer Diameter 0.530 inches (13.5 mm)
Sales Quantity 1 syringe per pack
Plunger Tip Material PTFE
Stroke Length 60 mm
Syringe Model Number 1005

5 mL, Gastight Syringe, Bubble Free Prime (BFP, 5/16"-28), PN: 59000-45 Resources

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

HAM Reference Guide Syringes Needles

Catalog

Reference Guide - Laboratory Syringes and Needles

The Syringe and Needle Reference Guide provides detailed information on Hamilton’s full portfolio of syringes and needles. Everything from cleaning to selection charts to help you choose between syringe terminations.
HAM Guide Syringe Use Care

Guide

Syringe Care and Use Guide

Hamilton’s Syringe Care and Use guide outlines the basics of daily syringe use and operation so that scientists and technicians can achieve the highest level of accuracy and precision. Important topics covered include inspection, operating temperature, trapped air, and sample carryover.
HAM Catalog Selecting Right Syringe

Guide

Hamilton Guide to Selecting the Right Syringe

Select the right type of syringe for your manual application. View our syringe size chart and learn more about Hamilton's lab syringe needles in this guide. Top-quality materials and skilled workmanship ensure that our syringes consistently deliver the highest performance for reliable analyses.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Syringe 1800 Series

Article

Syringe Dimensions

See the specific volumes, outer diameter measurements, and inner diameter measurements of all microliter syringes.
Syringe Cleaning Kit

Article

Syringe Sterilization and Disinfecting Guide

Are you curious whether your Hamilton syringe can be sterilized and disinfected via ethylene oxide, autoclavation, or chemical disinfectants? Consult this table of syringe terminations, syringe needles, and tubing types to learn the possible ways to sterilize and disinfect your Hamilton syringe.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Plunger faq

FAQ

Can I order a replacement plunger for my syringe?

Most Gastight syringes have replacement plungers available under 'Accessories' on the product page, while Microliter syringes do not. 7000 series modified Microliter syringes have zero dead volume and a small plunger wire, but it's best not to remove the needle or plunger to avoid damaging the wire.
Accuracy of Hamilton syringes 1

FAQ

What is the difference between Bubble Free Prime (BFP) Syringes and Luer Lock (TLL) Syringes?

For any syringe pump, the key to achieving the most accurate dispenses is eliminating all air from the fluid path. Traditional syringes trap approximately 50 μL of air between the tip of the syringe and the valve. For small syringes, this trapped air is the last to leave the syringe and the first to be drawn back in, making them difficult to prime. The Bubble Free Prime (BFP) syringe features a conical plunger tip which expels the air from the syringe and valve decreasing the number of priming cycles required to eliminate air bubbles from within the flow path.
Hamilton Syringes

FAQ

Are Hamilton syringes suitable for PFAS testing?
