VisiFerm DO Arc (discontinued)

The VisiFerm DO Arc was designed to meet the demanding needs of hygienic applications in the biotechnology, bio pharmaceutical, and food and beverage industry. Upgrade to the next generation VisiFerm that reduces calibration frequency and has a higher robustness. Learn more:

SEE VISIFERM RS485 SENSORS

Receive More Information

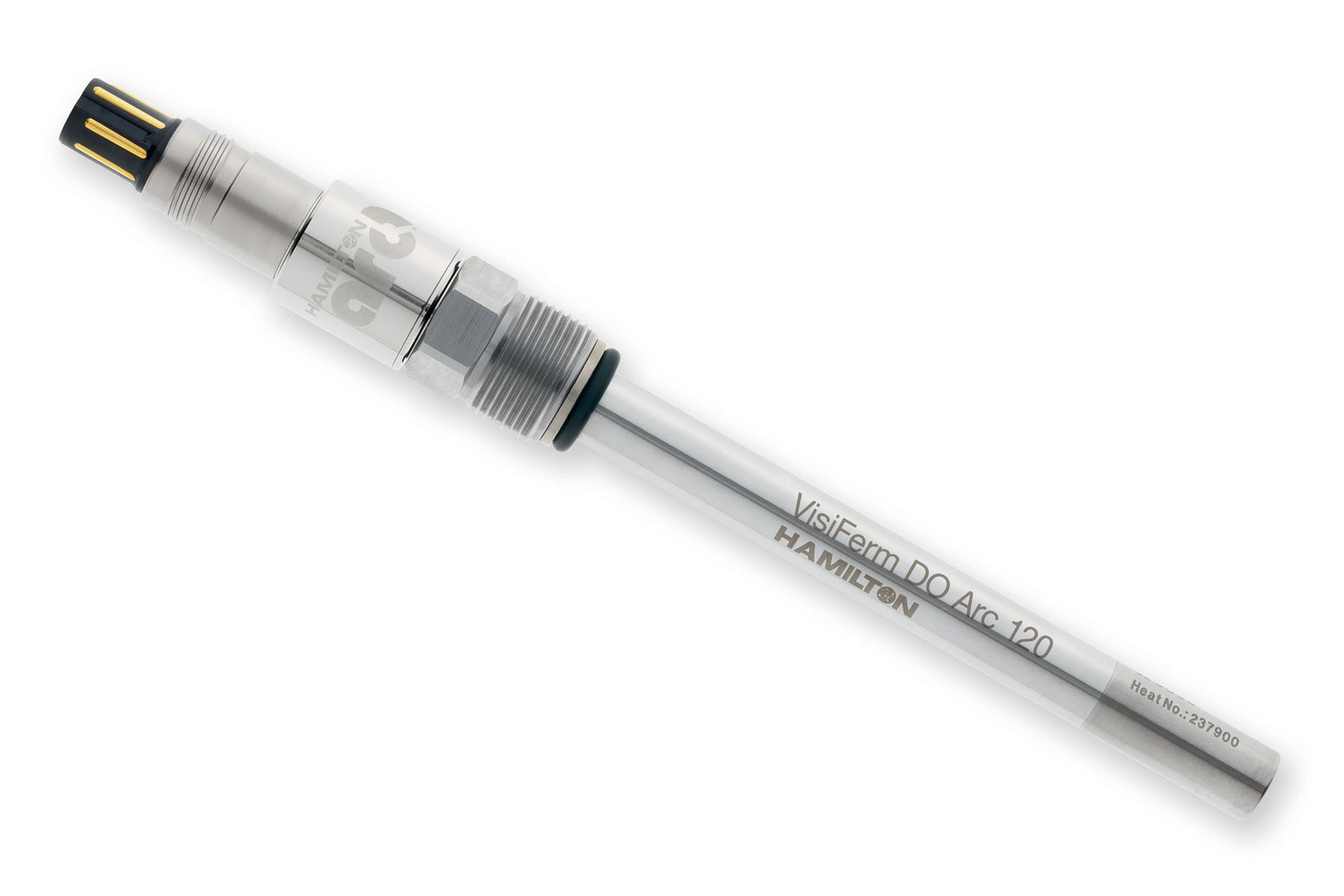

  • Dissolved Oxygen Sensor - VisiFerm Arc

VisiFerm DO Arc (discontinued) Details

The VisiFerm DO Arc was designed to meet the demanding needs of hygienic applications in the biotechnology, bio pharmaceutical, and food and beverage industry. The VisiFerm DO Arc optical dissolved oxygen sensor offers a simple way to upgrade from traditional polarographic sensors. The sensor measurement principle offers increased accuracy and reduced maintenance while the output provides both 4 - 20mA and Modbus digital outputs.

Upgrade to the next generation VisiFerm drastically reduces calibration frequency and has a higher robustness. Learn more about the new sensors: VISIFERM RS485 SENSORS

  • The measurement technology from Hamilton is hard to beat in terms of its measurement accuracy and reliability.

    The measurement technology from Hamilton that is used in our brewery is hard to beat in terms of its measurement accuracy and reliability. The planning security and cost stability with the subscription is very attractive and important to us. Hamilton offers great support and is always open to customer requests.

    Holger Bruckes
    Deputy head of Quality Assurance Mönchengladbach Brewery, Branch of OETTINGER Brewery GmbH

  • I could not be more pleased with my experience with Hamilton!

    My company has been using Hamilton probes for years and have always been happy with their performance! The team is always very helpful in trouble shooting issues and answering any questions that we may have about our probes. Overall, I could not be more pleased with my experience with Hamilton!

    Abigail Mann
    Bioprocessing Fermentation Associate at Heliae Development

VisiFerm DO Arc (discontinued) Specifications

Print
Process Connection PG13,5
Wetted Parts Stainless Steel 1.4435
EPDM (Ethylene propylene elastomer)
Electrical Connector VP8
Sensor Output Arc: Modbus, 4 to 20 mA
Measuring Range 4 ppb to 25 ppm (DO) 0 to 62.85 %-vol or 0 to 300 %-sat
Electrolyte None
Accuracy at 25 °C 1 ± 0.05 %-vol; 21 ± 0.2 %-vol; 50 ± 0.5 %-vol
Drift at Room Temperature < 1 % per week
Oxygen Consumption None
Temperature Sensor NTC 22 kOhm
Configurable Values DO: mbar; %-sat; %-vol; µg/l; mg/l; ppb/ppm (dissolved oxygen); Temperature: °C, °F, K
Surface Quality of Steel Ra < 0.4 µm (N5)
Analog Interface 1 4 to 20 mA for DO, programmable, galvanically not isolated; pulse width modulation 5 kHz
Digital Interface RS485 Modbus (max. 32 addresses)
Baud Rate 4800, 9600, 19200, 38400, 57600, 115200 Bd
Operating Voltage 7 to 30 VDC max. 1 W
Serial Number Yes
Response Time t98% < 30 s at 25 °C
Certificate Yes, with parameter settings and materials used
ATEX Approval No
IECEx Approval No
Diameter 12 mm
Autoclavable Yes, max. Temperature 130 °C
Steam Sterilizable Yes, max. Temperature 140 °C
CIP Yes
Operating Temperature Range -10 to 140 °C; the sensor provides no DO reading above 85 °C
Pressure Range bar g -1 to 12 bar
Required Flow None

VisiFerm DO Arc (discontinued) Resources

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Green circle icon with a dark navy lightbulb containing two interlocking gears, on a teal dotted background.

Article

VisiFerm ECS Versus DO Arc Sensor Outputs

Hamilton offers two different interfaces for the VisiFerm optical DO sensors. Learn the differences between ECS and RS-485 sensors.
Green circle icon with a crossed pencil and hammer symbol on a dark teal dotted background.

Article

Arc Sensors - Signal Averaging

Certain applications may introduce conditions that create fluctuating or "noisy" measurements. The noisy measurement can make process control challenging. One way to improve signal stability is to adjust the moving average setting using ArcAir software.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Two overlapping green speech bubbles with a question mark on a dark navy circular background

FAQ

Why should I upgrade my optical DO sensor to VisiFerm RS485?

The VisiFerm RS485 has new electronics offering end users a more robustness and higher performing sensor all while being compatible within existing installations by keeping the same total sensor length. Improved functionalities allow for more accurate calibrations along with diagnostics features such as cap and sensor quality indicators.
Two overlapping green speech bubbles with a question mark on a dark navy circular background

FAQ

Does temperature impact my oxygen measurement?

Yes, in a closed system, gas phase temperature is directly proportional to pressure and therefore measured oxygen content. In solution, temperature is inversely proportional to dissolved oxygen content.
Two overlapping green speech bubbles with a question mark on a dark navy circular background

FAQ

Does carbon dioxide sparging impact my DO measurement?

CO2 sparging will not impact the DO measurement using an optical DO sensor. CO2 can impact traditional polarographic DO sensors over time thus more frequent electrolyte replacement may be needed.
