Manual Valves
Compact and Inert Solvent Selection and Distribution
Hamilton (HV) Plug Valves provide an economical and flexible method of custom-building a fluid flow control system, from a simple on/off valve to a more complex multi-valve arrangement, using a combination of loop and distribution valves. The small valve body with its chemically inert PTFE/CTFE flow path is ideally suited for low pressure (100 psi) applications. All HV Plug Valves allow you to select and interchange a wide variety of fittings, adapters and tubing, including male and female luers, FEP tubing assemblies, and adapters that thread directly into the valve, providing an endless variety of valve configurations for any flow application.
View all Manual Valves

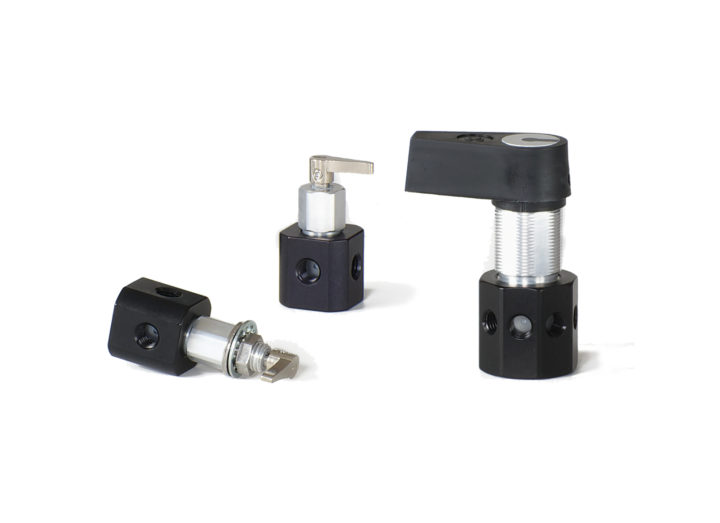

Manual Valve Types

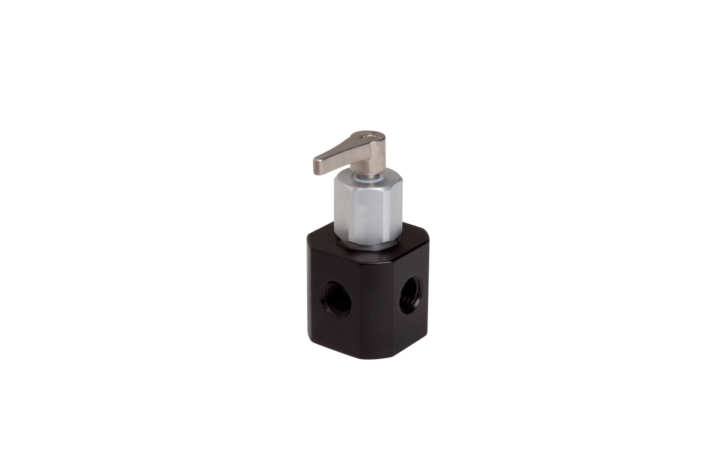

HV Standard Valves
The HV valve is physically the smallest valve and constitutes a basic unit for the control of fluids.
HVP Panel Mount Valves
The HVP valve is essentially the same as the HV valve except the HVP can be mounted into panels allowing for custom installation into control boards or instruments.
HVX Large Body Valves
HVX valves are physically the largest valves. A larger port internal diameter allows increased fluid flow even with moderately viscous fluids. HVX valves can be used free standing or panel-mounted using an optional locking nut.
Valve Specifications
| Description | HV | HVP | HVX |
|---|---|---|---|
| Dimensions | 19 mm sq | 19 mm sq | 25.4 mm sq |
| (0.75 in) | (0.75 in) | (1.0 in) | |
| Configuration | All | All | All |
| Nominal Port Diameter | 1.5 mm | 1.5 mm | 2, 3, 4 port 1.8 mm (0.070 in) |
| (0.059 in) | (0.059 in) | 6, 8 port dist. 1.5 mm (0.059 in) | |
| 6, 8 port loop 1.0 mm (0.040 in) | |||
| Operating Pressure | ≤ 0.7 MPa | ≤ 0.7 MPa | ≤ 0.7 MPa |
| (100 psig) | (100 psig) | (100 psig) | |
| Temperature Range | -12 to 38 °C | -12 to 38 °C | -12 to 38 °C |
| (10 to 100 °F) | (10 to 100 °F) | (10 to 100 °F) | |
| Wetted Path | PTFE* | PTFE* | PTFE* |
| CTFE** | CTFE** | CTFE** | |
| Break Away Torque | 0.07 - 0.11 Nm | 0.07 - 0.11 Nm | 0.07 - 0.11 Nm |
| (10 - 15 in oz) | (10 - 15 in oz) | (10 - 15 in oz) | |
| Threaded Connection | 1/4"-28 | 1/4"-28 | 1/4"-28 |
| Thread Depth | 5.6 mm | 5.7 mm | 5.6 mm |
| (0.219 in) | (0.223 in) | (0.219 in) | |
| Panel Mount | No | Yes for HVP | Yes for HVX |
| *PTFE (Polytetrafluoroethylene) **CTFE (chlorotrifluoroethylene) | |||
