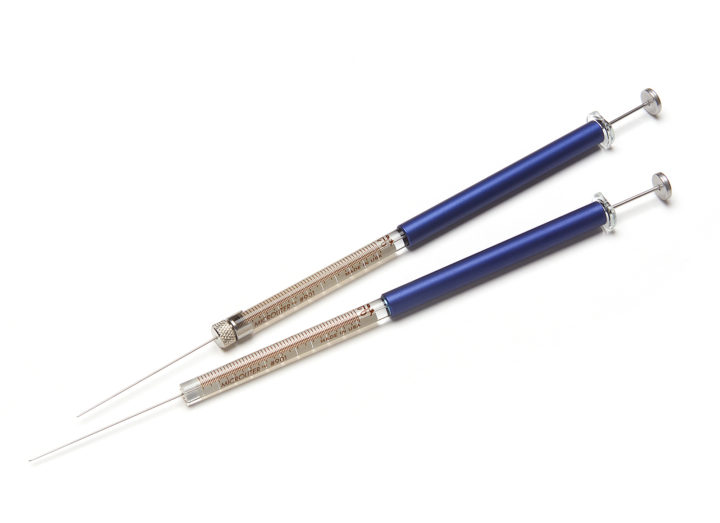

The 900 series syringe is the economical version of the 800 series syringe. This series of syringes is ideal for dispensing volumes from 0.5 μL up to 10 μL. The syringe holder is permanently attached to the syringe barrel. This reduces the initial cost of the syringe but eliminates the possibility of replacement components.
|Model Number||Volume||Barrel Inner Diameter||Stroke Length||Operating Pressure||Operating Temperature|
|95||5 µL||0.34 mm||54 mm||14 MPa||10 - 115 °C1|
|901||10 µL||0.49 mm||54 mm||14 MPa||10 - 115 °C1|
1 If the syringe termination is a cemented needle or luer tip cemented needle then the maximum temperature is 50 °C.
Needle Point Style GuideHamilton offers a variety of different needle point designs. Needle termination selection is very important to the proper function an application. Lab needles need to perform in many different environments and terminations are available in non-coring, beveled, drilled side port and more. Click to see which version is best for your application.
Needle Gauge IndexIn addition to being inert stainless steel, lab needles require proper sizing in order to function properly. The diameter of a needle is defined by its gauge. In addition to being inert stainless steel, lab needles require proper sizing in order to function properly. Hamilton company offers a wide spectrum of gauges. This index displays the internal and outer dimensions as well as the dead volume.
