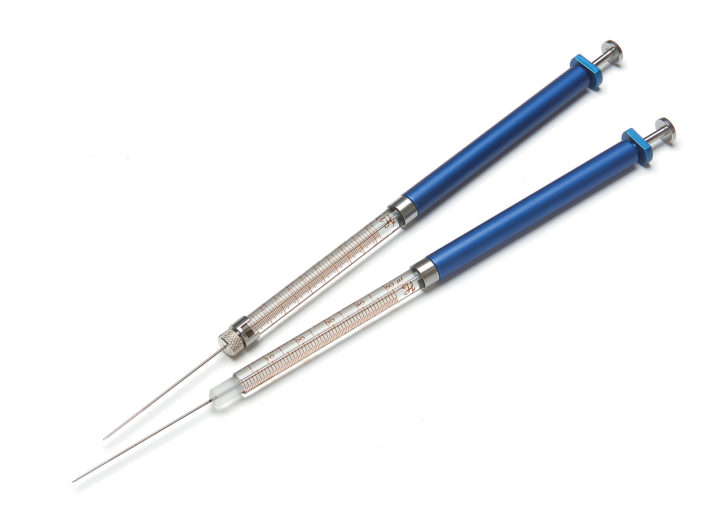

The 800 series syringes are the reinforced plunger version of the original 700 series syringes. Attached to the flange of the syringe is a blue Syringe Holder. The Syringe Holder provides a spot to hold the syringe that will not heat up the barrel causing dispense inaccuracies. Additionally it provides support to small volume plungers that are prone to bending during injection. This series of syringes is ideal for dispensing volumes from 0.5 μL up to 250 μL. A variety of different terminations and needle options are available in this series.
|Model Number||Volume||Barrel Inner Diameter||Stroke Length||Operating Pressure||Operating Temperature|
|85||5 µL||0.34 mm||54 mm||14 MPa||10 - 115 °C1|
|801||10 µL||0.49 mm||54 mm||7 MPa||10 - 115 °C1|
|802||25 µL||0.73 mm||60 mm||7 MPa||10 - 115 °C1|
|805||50 µL||1.03 mm||60 mm||7 MPa||10 - 115 °C1|
|810||100 µL||1.40 mm||60 mm||7 MPa||10 - 115 °C1|
|825||250 µL||2.30 mm||60 mm||7 MPa||10 - 115 °C1|
1 If the syringe termination is a cemented needle or luer tip cemented needle then the maximum temperature is 50 °C.
Needle Point Style GuideHamilton offers a variety of different needle point designs. Needle termination selection is very important to the proper function an application. Lab needles need to perform in many different environments and terminations are available in non-coring, beveled, drilled side port and more. Click to see which version is best for your application.
Needle Gauge IndexIn addition to being inert stainless steel, lab needles require proper sizing in order to function properly. The diameter of a needle is defined by its gauge. In addition to being inert stainless steel, lab needles require proper sizing in order to function properly. Hamilton company offers a wide spectrum of gauges. This index displays the internal and outer dimensions as well as the dead volume.
