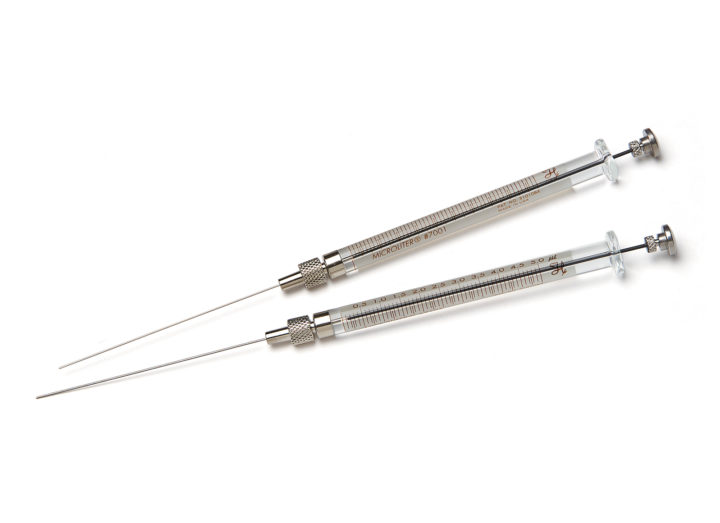

7000 Series Microliter Syringes
The 7000 series syringes are considered modified Microliter syringes for their unique zero dead volume design. This syringe series is ideal for dispensing volumes from 0.05 μL up to 5 μL. The fine gauge plunger wire extends all the way to the tip of the needle ensuring that all solvent is expelled from the needle. Therefore, it is not recommended to remove the needle or plunger.
7000 Series Specifications
| Model Number | Volume | Plunger Wire Outer Diameter | Stroke Length | Operating Pressure | Operating Temperature |
|---|---|---|---|---|---|
| 7000.5 | 0.5 µL | 0.104 mm | 60 mm | 41 MPa | 10 - 115 °C |
| 7001 | 1 µL | 0.145 mm | 60 mm | 41 MPa | 10 - 115 °C |
| 7101 | 1 µL | 0.145 mm | 60 mm | 41 MPa | 10 - 115 °C |
| 7002 | 2 µL | 0.206 mm | 60 mm | 41 MPa | 10 - 115 °C |
| 7102 | 2 µL | 0.206 mm | 60 mm | 41 MPa | 10 - 115 °C |
| 7105 | 5 µL | 0.325 mm | 60 mm | 41 MPa | 10 - 115 °C |
