1000 Series Syringes

Durable gastight syringe for scientific applications involving liquid and gas dispensing in mid-volume ranges from 1 mL to 100 mL. Multiple termination, needle gauge, needle point style, and other choices are available.

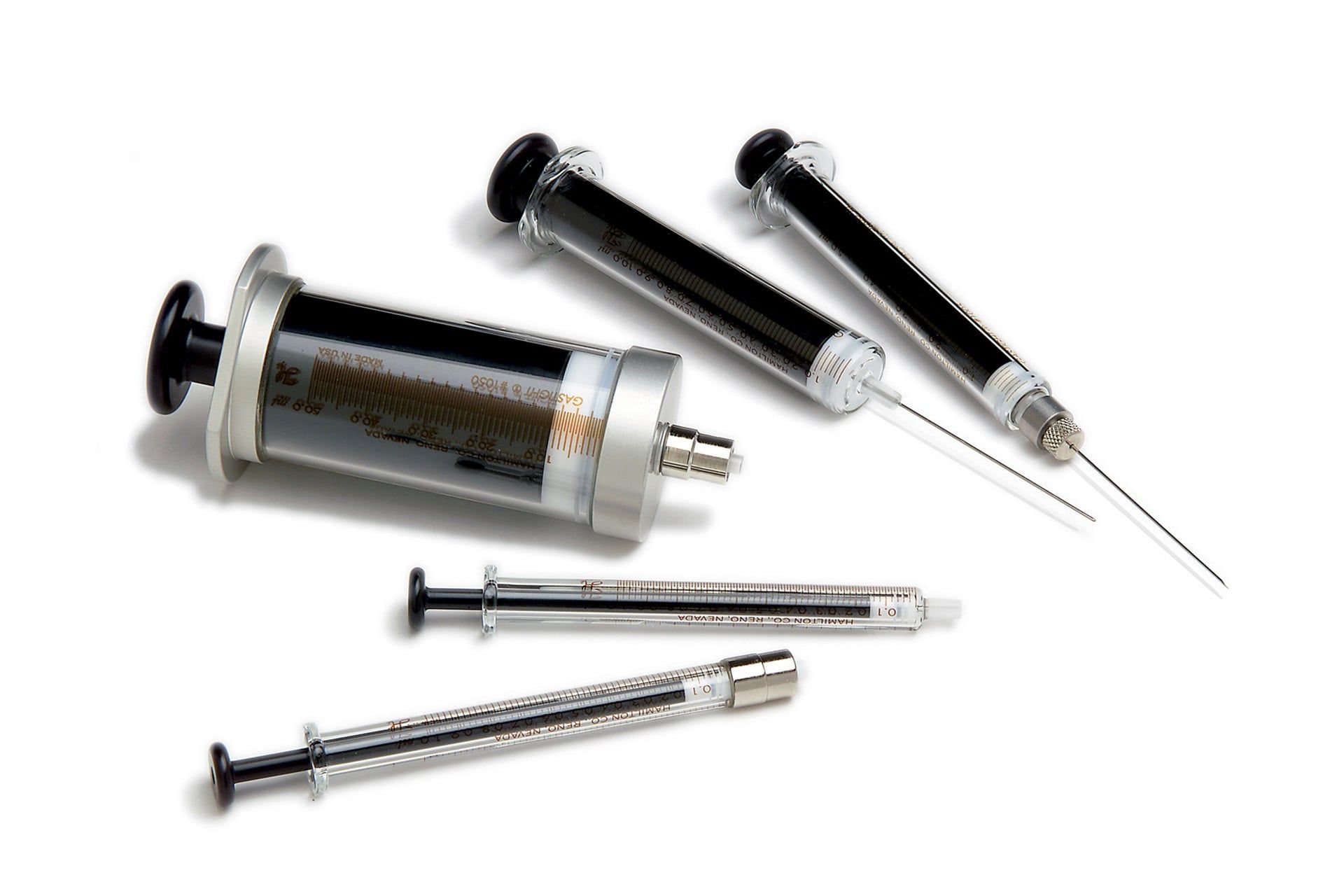

Syringe 1000 Series

Volumetric accuracy in mid-volume ranges

Hamilton 1000 series syringes dispense liquid and gas volumes in a multitude of applications like gas chromatography (GC), liquid chromatography (LC), analytical chemistry, and more. Designed for consistently leak-free performance, every Hamilton 1000 gastight syringe features a PTFE plunger tip to prevent sample loss. Additionally, a precision-machined glass syringe barrel makes the Hamilton 1000 gastight syringe an ideal choice when handling volatile gases and liquids with precise accuracy.

Choose from multiple sizes and options to match your scientific or analytical workflow and personal preference.

What you can expect

  • Versatile configurations

    Multiple gastight syringe options aid your unique application requirements.

  • Leak-free performance

    A PTFE plunger tip offers a tight fit to prevent evaporation and gas or liquid sample loss.

  • High-accuracy dispensing

    Precision-machined glass barrels with easy-to-read volume indicators ensure exact volume delivery.

View all 1000 Series Gastight Syringes

Compare
Part # Volume Syringe Type Termination Point Style Needle Length Syringe Variation Sales Quantity

JavaScript is required to view and filter products in this category.

1000 Series Specifications

Model NumberVolumeBarrel Inner DiameterStroke LengthOperating PressureOperating Temperature
1001 1 mL 4.61 mm 60 mm 1 MPa 10 - 115 °C1
1002 2.5 mL 7.29 mm 60 mm 1 MPa 10 - 115 °C1
1005 5 mL 10.30 mm 60 mm 1 MPa 10 - 115 °C1
1010 10 mL 14.57 mm 60 mm 1 MPa 10 - 115 °C1
1025 25 mL 23.03 mm 60 mm 0.7 MPa 10 - 80 °C1
1050 50 mL 32.54 mm 60 mm 0.7 MPa 10 - 80 °C1
1100 100 mL 32.54 mm 120 mm 0.7 MPa 10 - 80 °C1

1 If the syringe termination is a cemented needle or luer tip cemented needle then the maximum temperature is 50 °C.
