InchTrode

For precise and quick pH measurement in demanding applications. The PEEK shaft and polymer electrolyte enable easy multi-angled installation of sensors into processes. The Single Pore junction offers the best accuracy and response time due to direct contact between the reference and sample.

Receive More Information

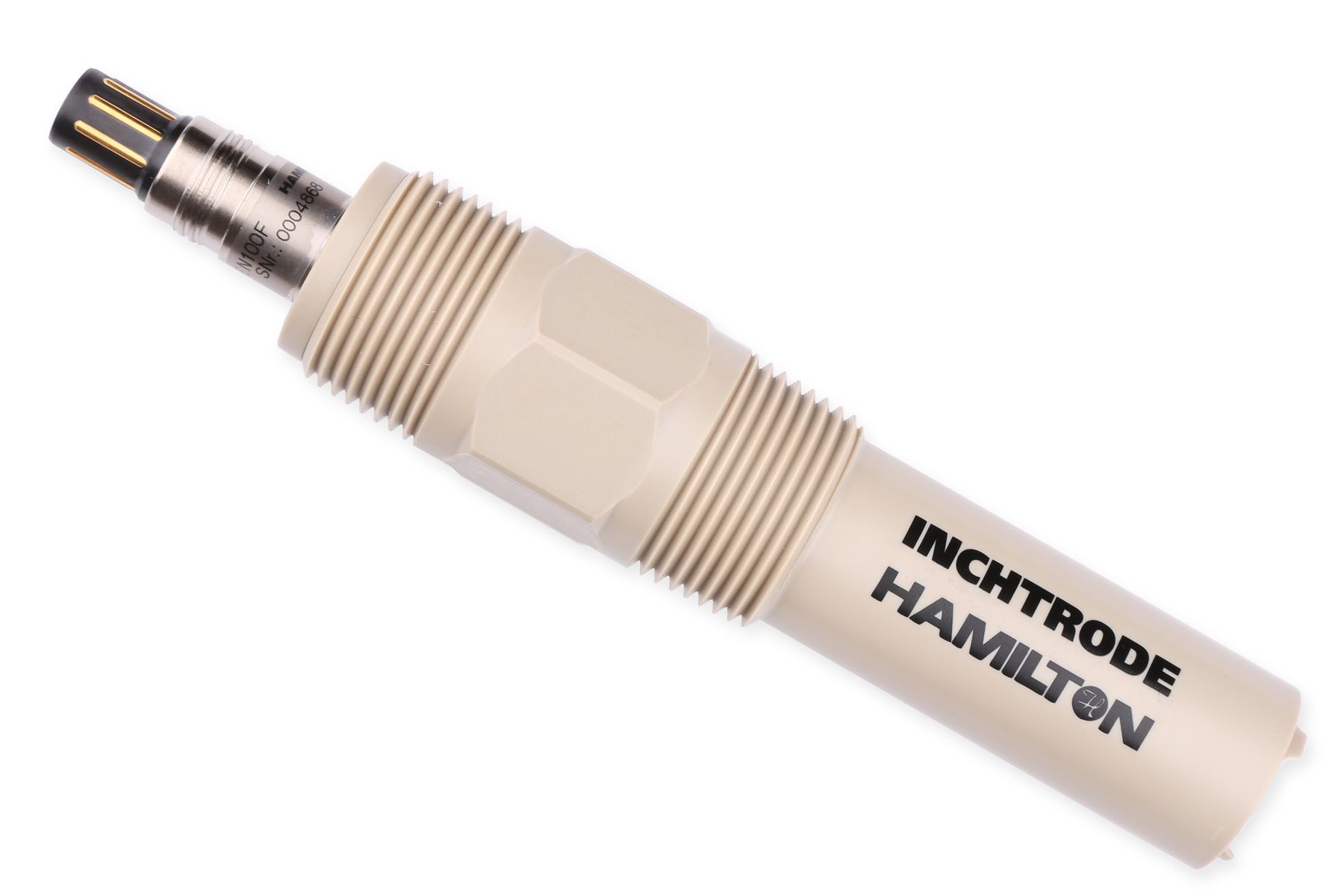

  • InchTrode N100F pH sensor

Commonly Grouped Accessories

InchTrode Details

The InchTrode sensors are designed to measure pH in demanding applications in the paper making industry as well as in the chemical industry. The Single Pore liquid junction guarantees rapid, high-quality measuring results due to direct contact between the sample and the Polisolve electrolyte.

The Single Pore liquid junction also ensures no clogging for minimal maintenance and longer sensor lifetime. The InchTrode sensors are easy to install without additional housing and have a robust PEEK shaft.

Designed to meet a range of demanding conditions, the series includes specialized models named under the following conventions:  F = Flat membrane, P = Cylindrical membrane, C = Fix cable.

Common applications Chemical Processes

Designed to withstand demanding applications.

Single Pore for direct sample contact with Polisolve electrolyte – no clogging.

Very long-lasting reference system.

Minimize Downtime

Rely on the very long-lasting reference system for extended operational periods and reduced maintenance.

Simplify Installation

Directly integrate the robust PEEK shaft sensor without needing additional housing, saving time and resources.

Scientific Citations

  • We particularly appreciated the professional and personable approach.

    The training on pH sensors was highly beneficial for us. After a detailed introduction to the fundamentals of pH measurement, electrode measurement principles, and the topic of troubleshooting/prevention, we had sufficient time to ask our specific questions. This enabled us to apply what we learned immediately and integrate it directly into our laboratory routine. We particularly appreciated the professional and personable approach of Mrs. Näf-Rüdiger, who guided us through the informative and application-oriented training session.

    Romy Alisch
    Scientist, Novozymes Berlin GmbH, Germany

  • I could not be more pleased with my experience with Hamilton!

    My company has been using Hamilton probes for years and have always been happy with their performance! The team is always very helpful in trouble shooting issues and answering any questions that we may have about our probes. Overall, I could not be more pleased with my experience with Hamilton!

    Abigail Mann
    Bioprocessing Fermentation Associate at Heliae Development

  • Hamilton pH sensors are characterized by their high measuring accuracy and long service life.

    Hamilton pH sensors are characterized by their high measuring accuracy and long service life. This contributes significantly to the control of our processes. They also help us to guarantee the required product quality and to further optimize processes.

    Felix Colin
    Bioprocess Engineer, AB Enzymes GmbH

InchTrode Specifications

Print
Wetted Parts GΙass
PEEK (Polyetheretherketone)
pH Glass Hamilton Type HF Glass
Measuring Range pH 0 to 14
Electrolyte Polisolve
Sensitivity 57 to 59 mV / pH at 25 °C
Zero Point 0 ± 20 mV
pH Glass Resistance Moderate
Diaphragm Single Pore ring
Number of Diaphragms 1
Reference System Hamilton Everef-L
Liquid Earth Yes
Serial Number Yes
Recommended Storage Hamilton Storage Solution or 3 M KCl
Certificate No
Autoclavable Yes
Steam Sterilizable Yes
CIP No
Operating Temperature Range -10 to 125 °C
Sample min Conductivity 2 µS/cm
Pressure Range bar g 0 to 10 bar at 25 °C, 0 to 6 bar at 130 °C

Compatibility with Hamilton Products

Discover compatible products and accessories.

  • Sensor Cables

    VP Sensor Cables
    Hamilton's VP (VarioPin) electrical connectors, with VP6 and VP8 options, are specifically designed for process sensors. These robust connectors feature an IP68 rating, withstand repeated autoclave cycles, and have a design that prevents moisture collection. Choose from open-end or M12 cables tailored for various sensor types and environments.
    Metal circular connector with multi-conductor cable and a separate mating plug showing gold contacts
    Browse All VP Sensor Cables

  • Traditional Transmitters

    Transmitter H110
    The Hamilton H110 is a versatile and reliable dual channel transmitter designed for precision monitoring in industrial applications.
    Hamilton Sensor Transmitter H110
    Compare Transmitters

InchTrode Resources

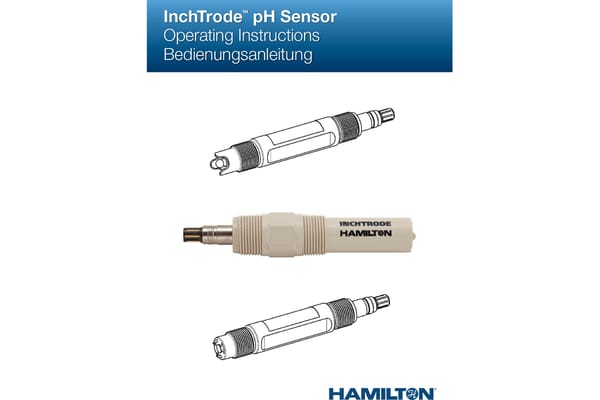

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

pH Calibration Procedure

Article

The pH Sensor Calibration Procedure

This article provides guidelines for calibrating a pH sensor or an industrial transmitter. The article provides best practices for handling sensors and liquid buffer solutions.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Two overlapping green speech bubbles with a question mark on a dark navy circular background

FAQ

What is a polymer-filled sensor and why would I choose it?

Polymer-filled sensors use solid (or nearly solid) electrolyte. This design keeps electrolyte from flowing out of the sensor and process liquid from poisoning or clogging the sensor. Polymer filled sensors are a great choice for industrial applications with strong chemicals, particulates and elevated pressures.
Compare Products
Services
Qualification IQ/OQ

Support for the qualification of Hamilton equipment including complete documentation. Readying your process for GMP manufacturing activities.

Maintenance and Calibration Services

Preventative maintenance and regular service contracts. Schedule on-site service dates to ensure your sensors are properly maintained and your process is optimized.

On-Site Service Diagnostics

Diagnosing and resolution of process system problems on-site. Finding the root cause and presenting a solution to fit your needs.

On-Site Training

User trainings and on-site trainings for technicians. Tailored training ranging from basic operation to advanced calibration and maintenance.

Modular Service Contracts

Hamilton offers modular service contracts tailored to your requirements, featuring a basic module complemented by optional add-ons.

Installation Support

Installation, set-up, and calibration support directly on-site. Our field service team ensures your sensors and cables are installed and functioning correctly.

Application and Technical Support

Hamilton's Technical Support team is here to provide product trouble-shooting, repair, application support, virtual start-up support, and more.
