RetractoFit BV
Ensures Safe Operation
Ball Valve Design
Prevents Contamination
Clean & Calibrate Fast
Simple Retraction
No Process disruption
Pressure Tolerant
Stainless Steel Build
Designed for Pipelines
Safe and Hygienic Sensor Operation
The RetractoFit BV retractable probe housing securely holds a sensor while allowing for its extraction, cleaning, and calibration without stopping the overall process. The hygienic design helps to prevent contamination, ensuring reliable and uninterrupted progress.

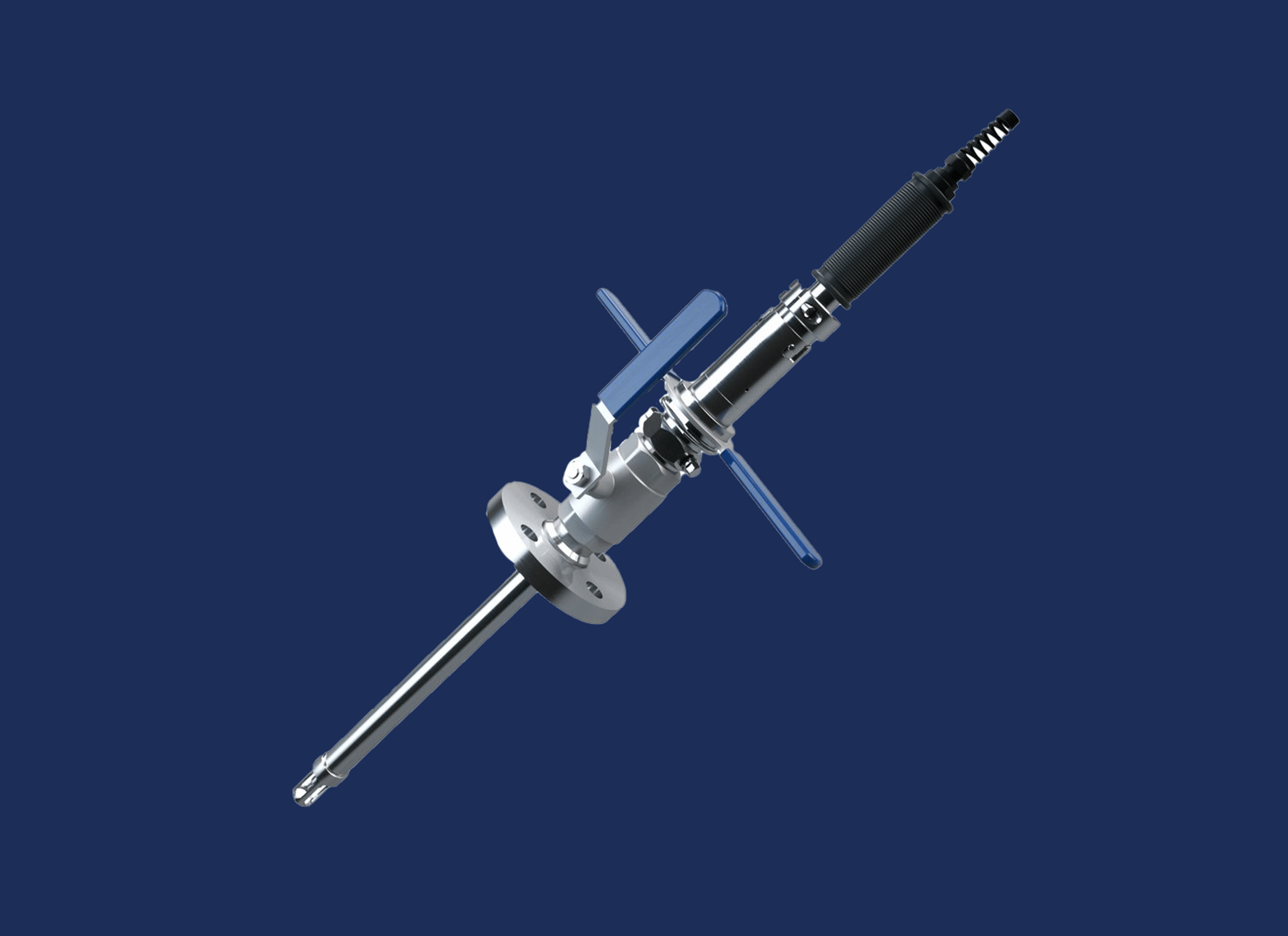

RetractoFit BV Retractable Sensor Housing
Supporting Reliable In-Line Measurements
The RetractoFit BV is a manually operated retractable probe housing that can be used with Hamilton Sensors for Process Analytics sensors for process analytics with 120 mm, 12 mm, and PG13,5 connections. It is specially designed to allow for deep yet adjustable sensor immersion into pipes and vessels.
Simple ball valve design
This cost-effective sensor housing is crafted from stainless steel, and includes an innovative ball valve design. This ball valve separates the sensor from the active process to allow for safe extraction without disruption or contamination risk. After the probe is cleaned and calibrated, it may be reinserted into the process by opening the ball valve. Contact us with your special needs.
The RetractoFit BV allows quick,safe sensor extraction while processes continue to run without contamination risk.
With its ball valve design, the RetractoFit BV provides reliable process insulation. Users can freely maintain the sensor without process downtime.
With its ball valve design, the RetractoFit BV provides reliable process insulation. Users can freely maintain the sensor without process downtime.
This manually retractable probe housing is an easy and cost-effective solution for sensor cleaning, calibration, and removal to simplify routine maintenance.

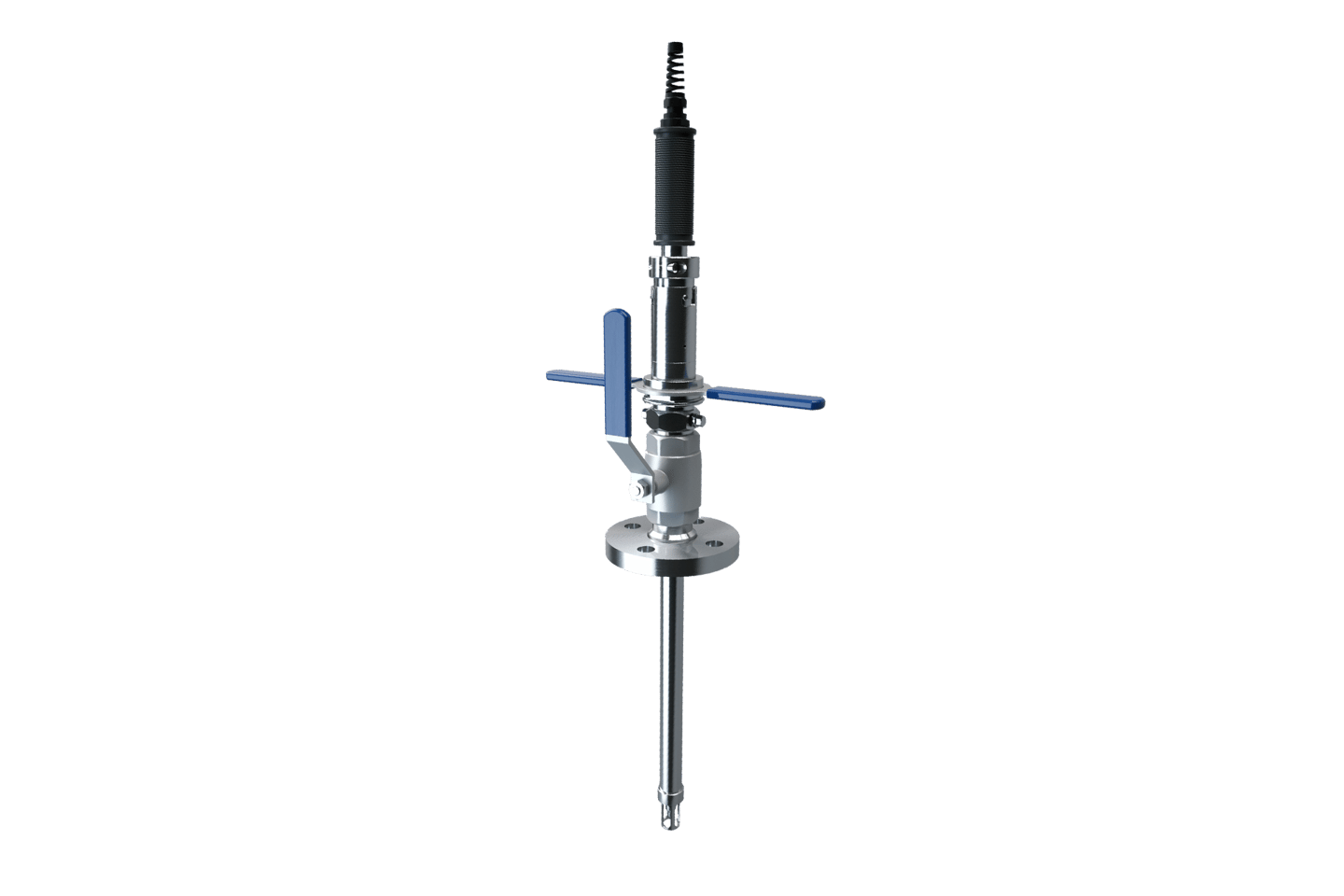

Explore RetractoFit BV
The RetractoFit BV is designed for reliable and safe in-line measurement. Its key features allow for convenient sensor maintenance and operational integrity.
1
Retractable Design
The retractable probe housing allows sensor insertion and retraction without interrupting the process.
2
Reliable Ball Valve
Equipped with a ball valve, the RetractoFit BV ensures reliable process insulation.
3
Manual Operation
The manually operated and axially movable drive unit is straightforward and cost-effective.
4
Hygienic Construction
Crafted from stainless steel (1.4404 / 316L), the RetractoFit BV fhelps to prevent contamination in sensitive processes

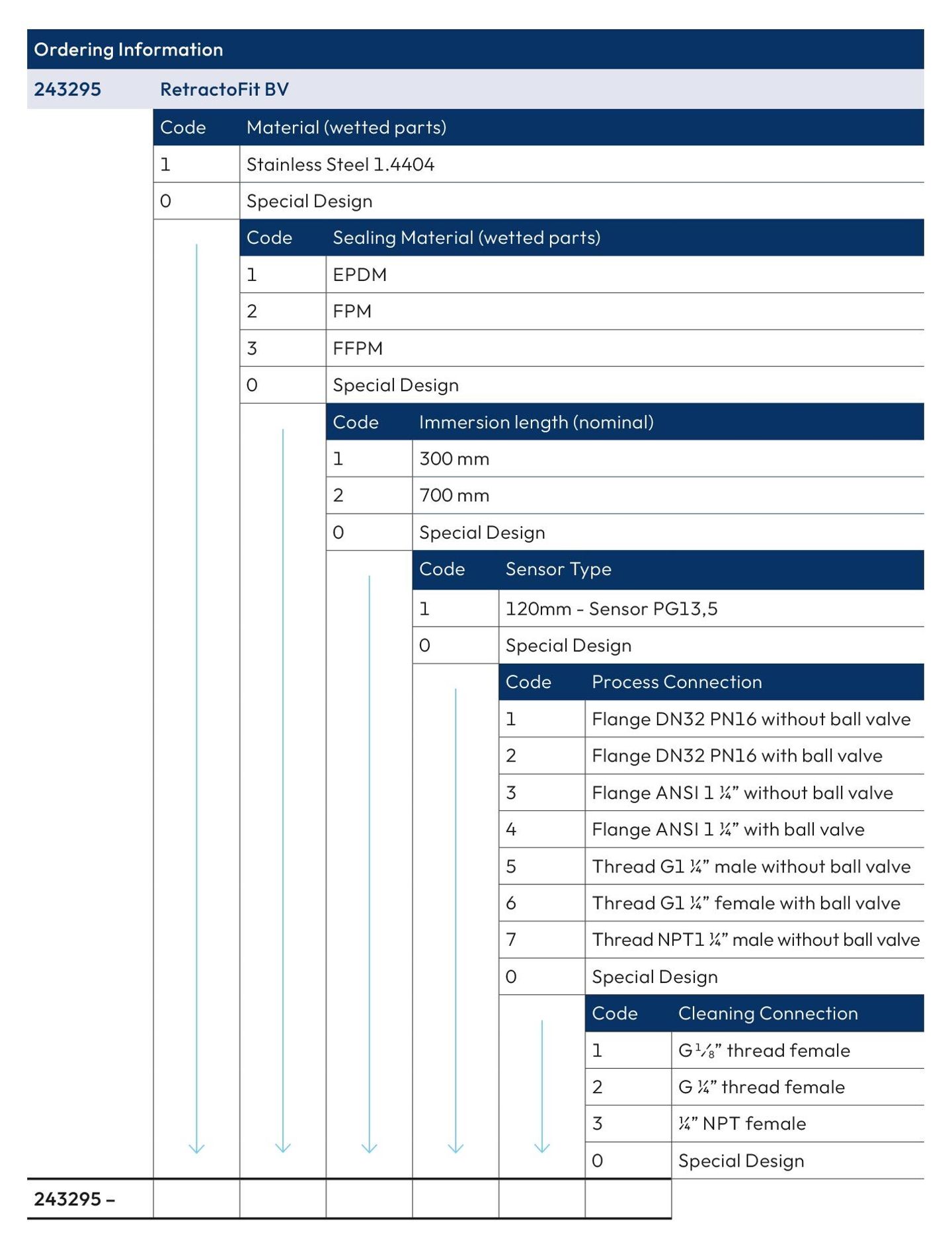

Ordering Information
Webinars
Process Analytics Webinar
Explore our upcoming live and on-demand virtual events
RetractoFit BV Retractable Sensor Housing Specifications
RetractoFit BV Specifications
Print- Wetted Parts
- Stainless Steel 1.4404
- Housing Material
- Stainless Steel 1.4404 / 316L
- Pressure Range (bar g)
- 0 to 12 bar
- For Sensors with
- 120 mm, 12 mm, PG13,5
- Process Connection
- Flange DN32 / ANSI 1 ¼"
Thread G1 ¼"
MNPT1 ¼"
- Housing Insertion Depth
- 300 mm / 700 mm nominal
- Temperature Range
- -10 to 130 °C
- Sealings
- EPDM; FKM (Viton)
FFKM (Kalrez)
- Drive unit
- Manually operated; Axially movable
- Feedback
- Without
- Product Name
- RetractoFit BV
Support your entire workflow with Hamilton's integrated products.

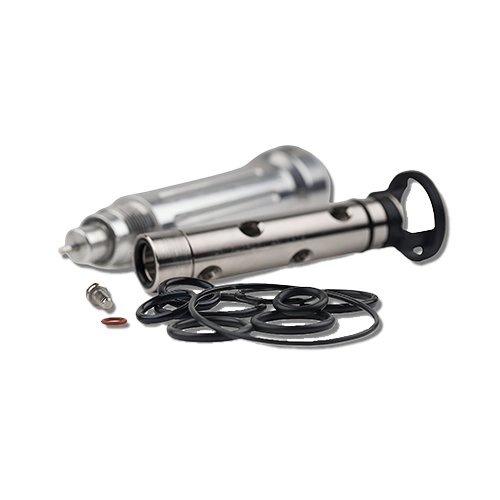

Housing Parts
