Retractex C Manual or Pneumatic Retractable Housing
Wetted Parts
Versatile Options
Connections
Sturdy Performance
0-16 Bar
Process Pressure Range
Simple, Thorough
In-place Cleaning
Process Continuity
Satisfies Demanding Requirements
Trust in the Retractex C to safely house your sensors in harsh chemical environments. The retractable design, exceptional chemical resistance, and easy sensor cleaning – even during operation – support uninterrupted monitoring and safe processing.

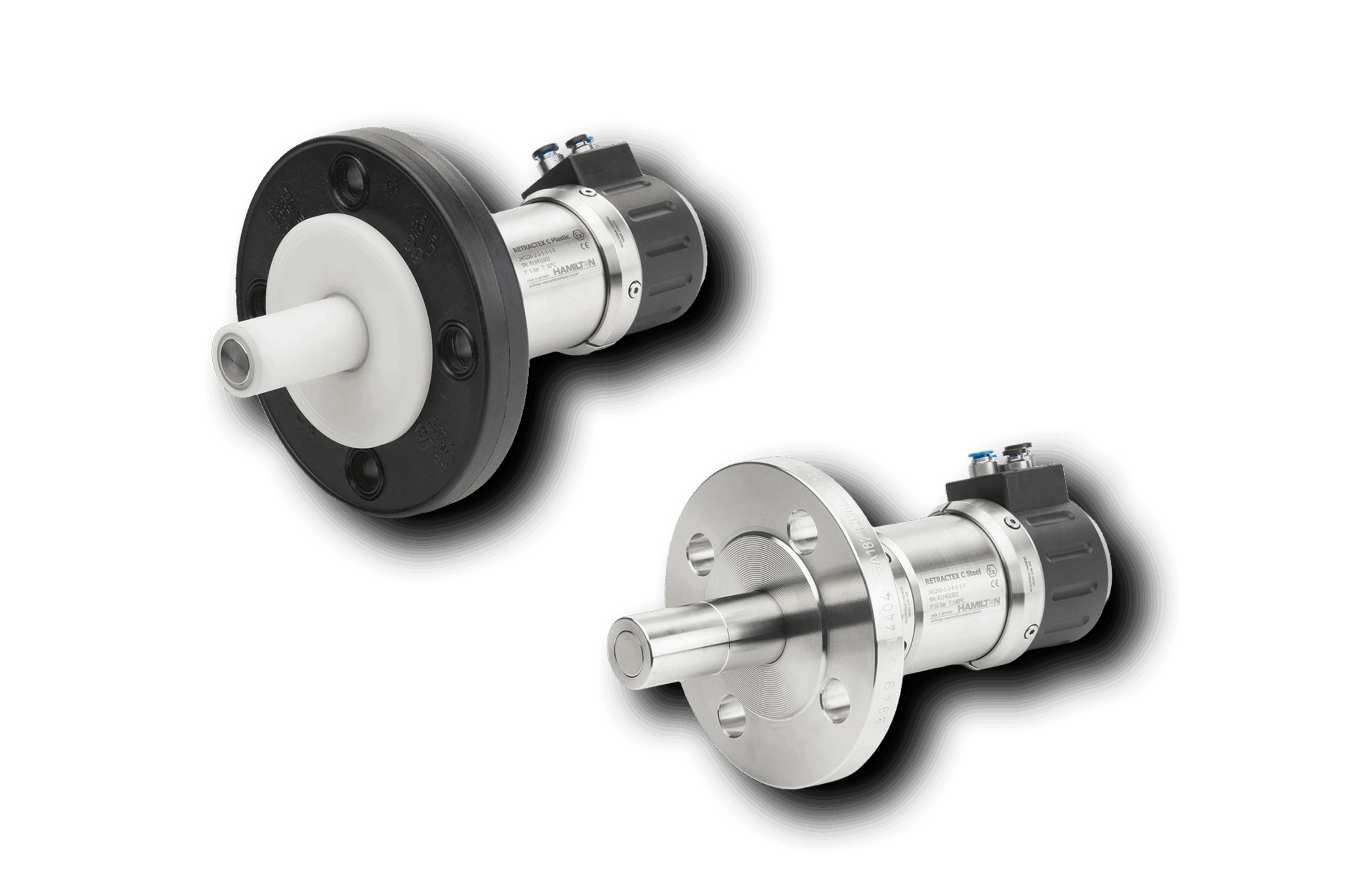

Retractex C Manual or Pneumatic Retractable Housing
Versatility, Even in Demanding Chemical Applications
Retractex C is a retractable sensor housing designed for chemical industry applications, supporting process pressures up to 16 bar. Stainless steel and plastic models are available for exceptional durability and chemical resistance, each with manual or pneumatic retraction. Additionally, various process connections and sealing materials support maximum flexibility.
The Retractex C is ideal for cleaning sensors in live processes within chemical plants. With its retractable design and built-in PTFE scraper, the sensor can be cleaned without disrupting operations, ensuring accurate readings and minimizing downtime. This allows for continuous monitoring and enhances process safety and efficiency, making it a reliable choice for demanding environments.
The Retractex C houses 225 mm sensors with a 12 mm shaft diameter, including our sensors for process analytics, and features a short stroke of 36 mm for low seal wear and high reliability.
Safeguarding Processes and Users
The patented cleaning design allows thorough in-place cleaning, including the space between the socket and rinsing chamber, to increase process efficiency. Retractex C includes safety features such as “no sensor – no insertion” and a leakage-check window for visual inspections.

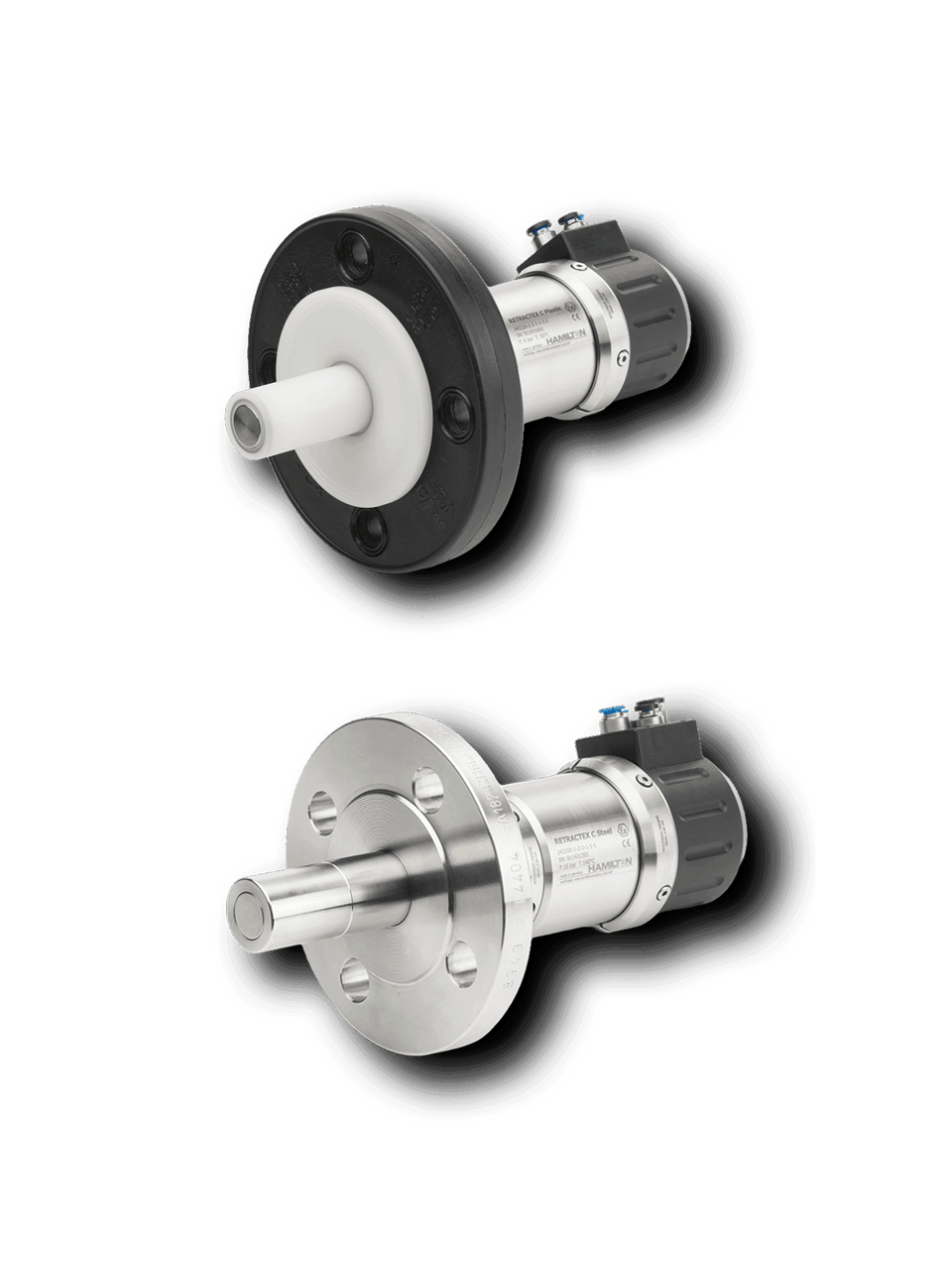

Featured Technologies
-
Long-term Performance
Retractex C is well-suited for daily use in chemical environments thanks to minimal seal wear from its short 36 mm stroke and in-place cleaning.
-
Exceptional Durability and Chemical Resistance
Select stainless steel or plastic housings, along with your choice of sealing materials, to withstand high-pressure applications or tough chemicals.
-
Compliance with International Requirements
Retractex C sensor housings meet rigorous quality standards set by international bodies such as ATEX, IECEx, UKEx, and EAC Ex.
Select stainless steel for durability or PVDF, PEEK, and PP for chemical resistance.
Supports sensors that are 225 mm long with a shaft diameter of 12 mm. See Hamilton’s selection of sensors for process analytics.

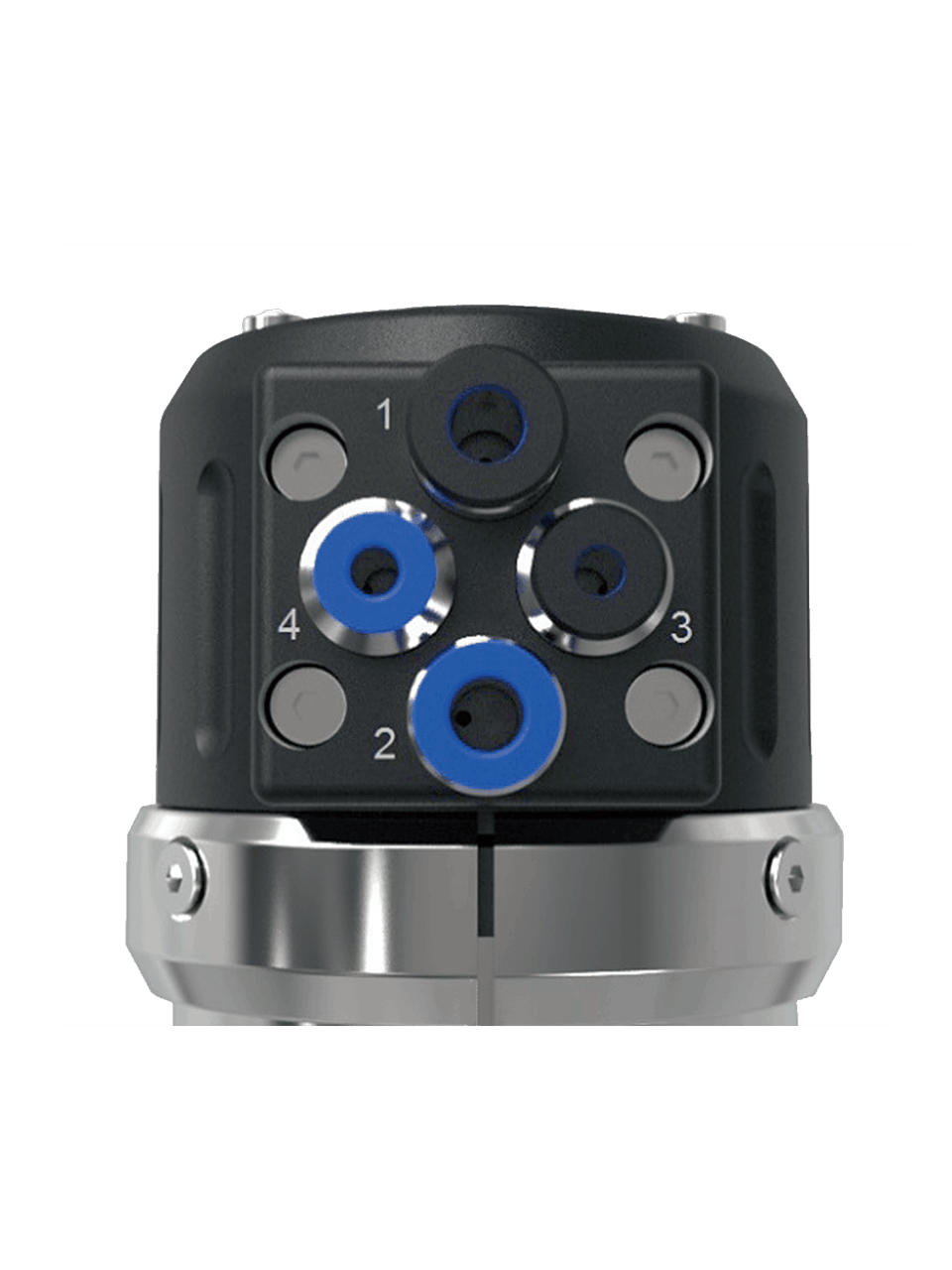

Color-coded connectors simplify pneumatic housing installation, reducing setup time.

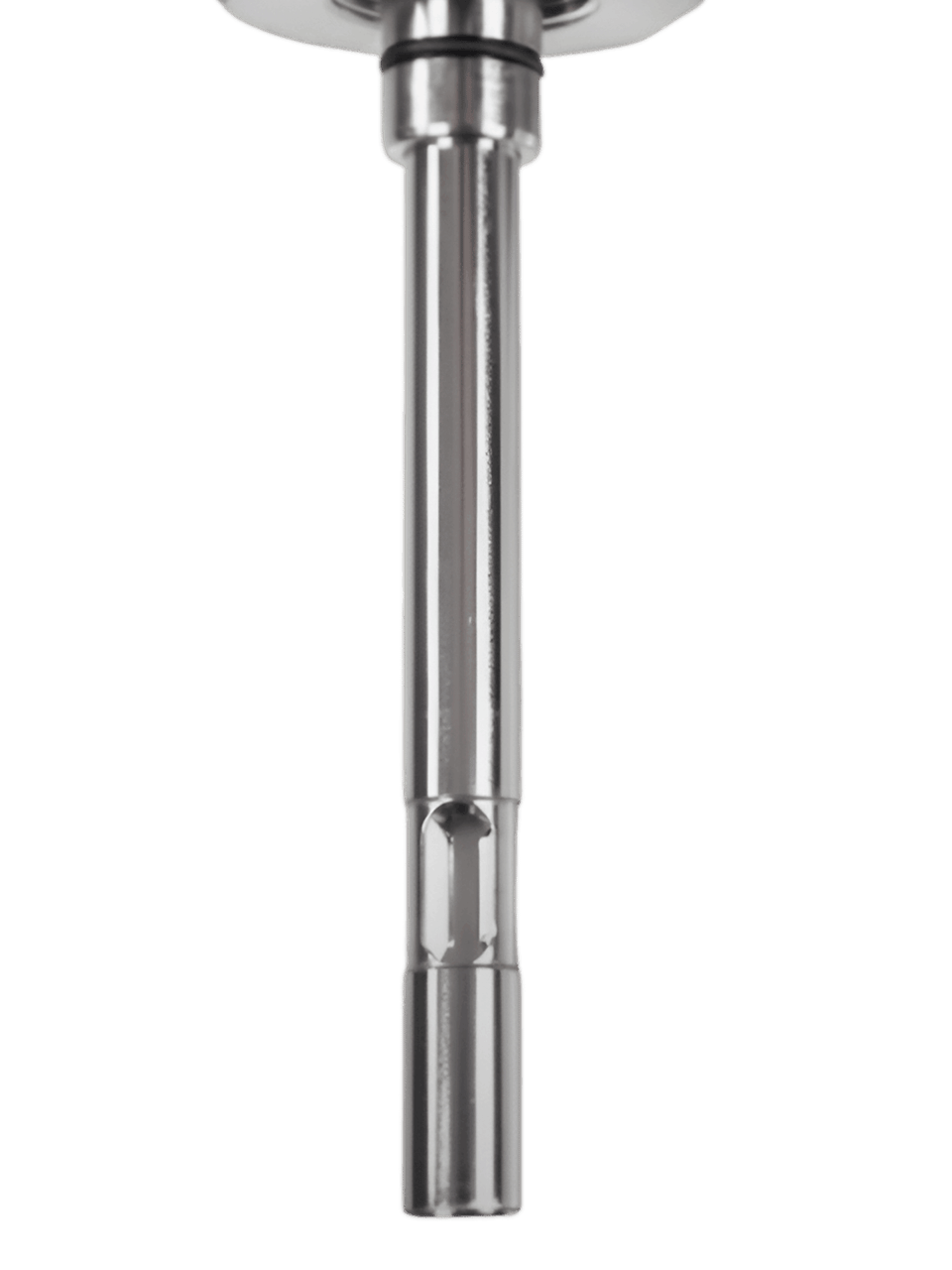

Allows complete sensor and housing cleaning while processes are running to support uninterrupted productivity.

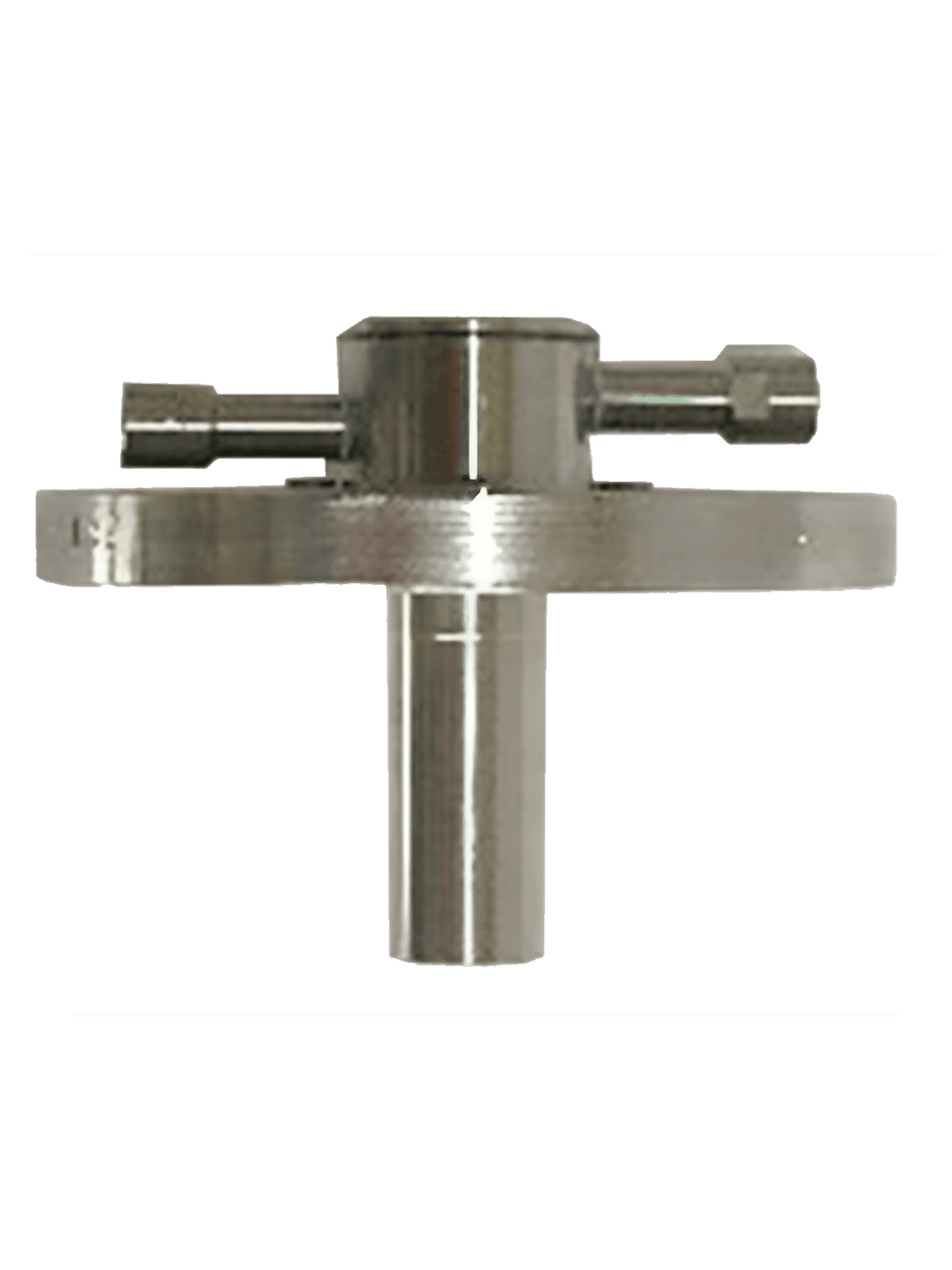

Facilitates cleaning fluid introduction for manual cleaning or automated cleaning with our RetractoControl 2.

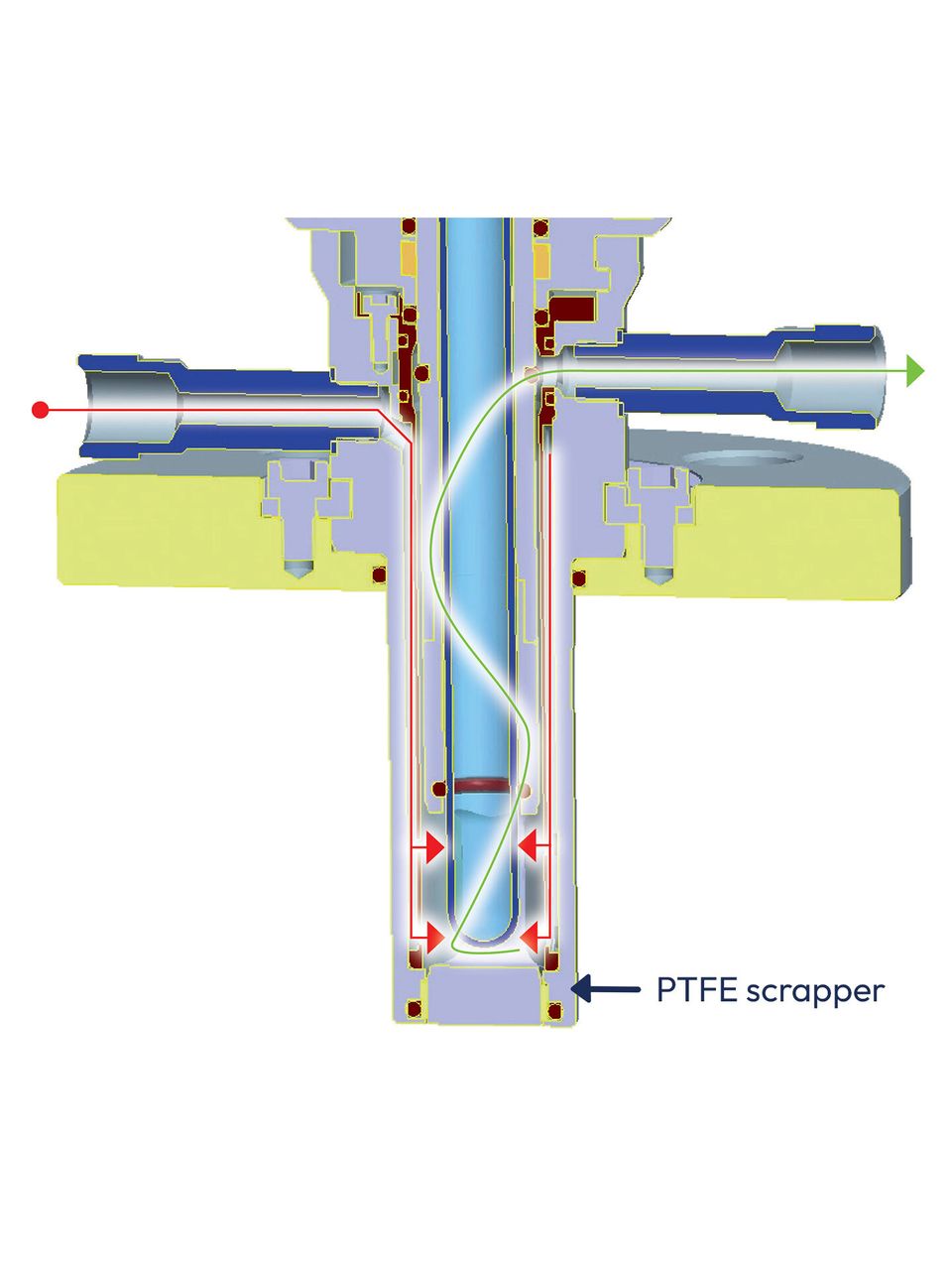

This scraper with o-ring built into the insertion tube prevents process build-up from contacting the internal o-ring seals.

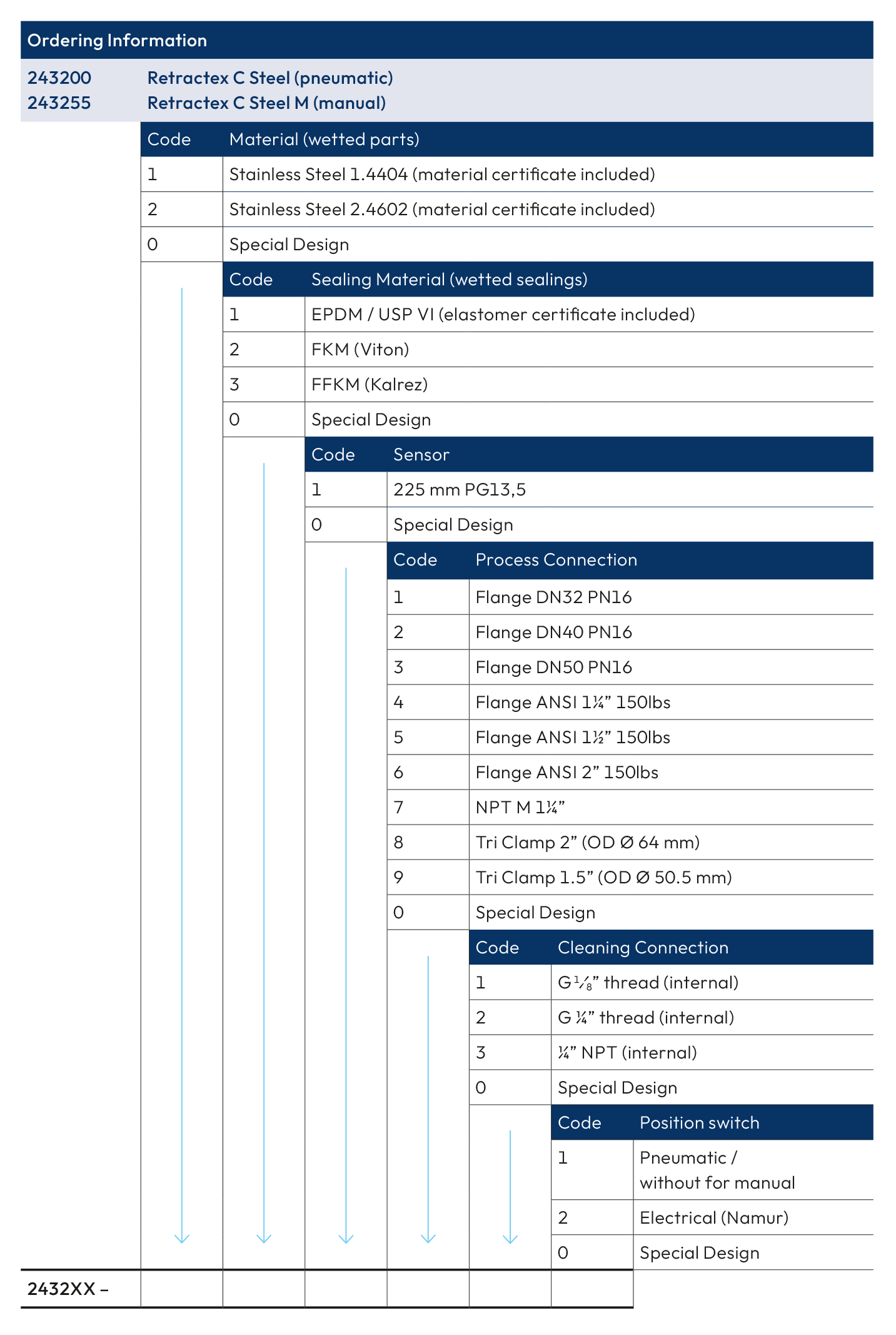

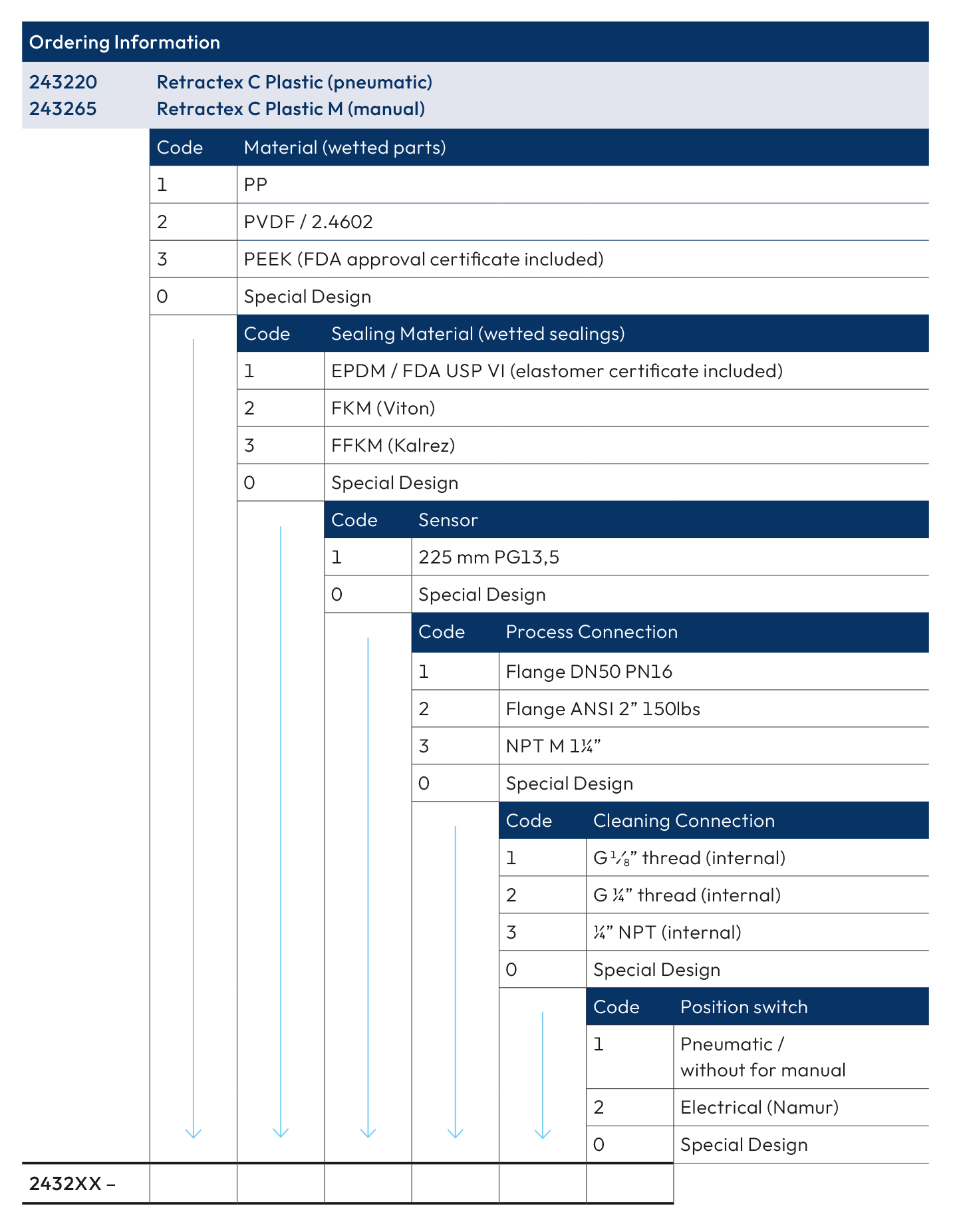

Retractex C Ordering Information
Retractex C Steel | Retractex C Plastic |
 |  |
Webinars
Process Analytics Webinars
Explore our upcoming live and on-demand virtual events
Retractex C Specifications
Retractex C Specifications
Print- Wetted Parts
- Stainless Steel 1.4404
PVDF, PEEK, or PP;
EPDM, FKM or FFKM
- Pressure Range (bar g)
- 0 to 16 bar (< 120 °C), 10 bar (120 to 140 °C)
- For Sensors with
- 12 mm; PG13,5; 225 mm
- Surface Quality of Steel
- Ra < 0.8 μm (N6)
- ATEX approval (Steel)
- II 1/2 G Ex ia IIC T4/T5/T6 Ga/Gb
II 1/2 D Ex ia IIIC T x °C Da/Db
- IECEx approval (Steel)
- II 1/2 G Ex ia IIC T4/T5/T6 Ga/Gb
II 1/2 D Ex ia IIIC T x °C Da/Db
- UKEx approval (Steel)
- II 1/2 G Ex ia IIC T4/T5/T6 Ga/Gb
II 1/2 D Ex ia IIIC T x °C Da/Db
- EAC Ex approval (Steel)
- II 1/2 G Ex ia IIC T4/T5/T6 Ga/Gb
II 1/2 D Ex ia IIIC T x °C Da/Db
- ATEX approval (Plastic)
- II 1/2 G Ex ia IIA T4/T5/T6 Ga/Gb
and II 1/2 G Ex ia IIB T4/T5/T6 Ga/Gb
See certificate for restrictions (cannot be used in dust)
- IECEx approval (Plastic)
- II 1/2 G Ex ia IIA T4/T5/T6 Ga/Gb
and II 1/2 G Ex ia IIB T4/T5/T6 Ga/Gb
See certificate for restrictions (cannot be used in dust)
- UKEx approval (Plastic)
- II 1/2 G Ex ia IIA T4/T5/T6 Ga/Gb
and II 1/2 G Ex ia IIB T4/T5/T6 Ga/Gb
See certificate for restrictions (cannot be used in dust)
- EAC Ex approval (Plastic)
- II 1/2 G Ex ia IIA T4/T5/T6 Ga/Gb
and II 1/2 G Ex ia IIB T4/T5/T6 Ga/Gb
See certificate for restrictions (cannot be used in dust)
- Temperature Range
- Operating Temperature Range
- -10 – 140 °C

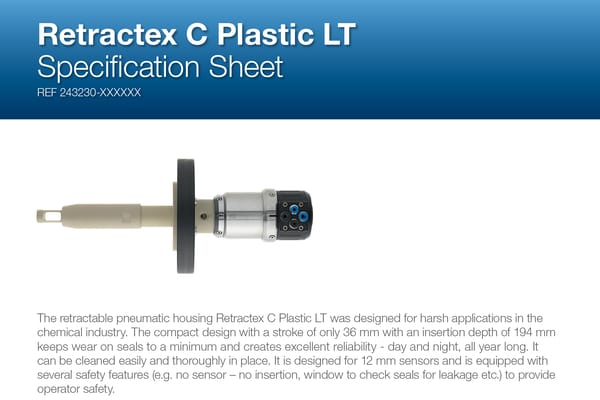

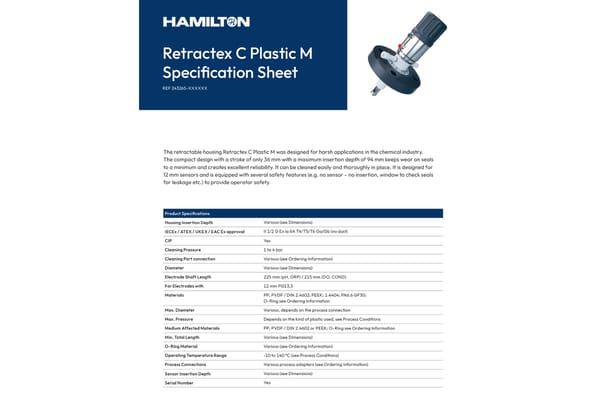

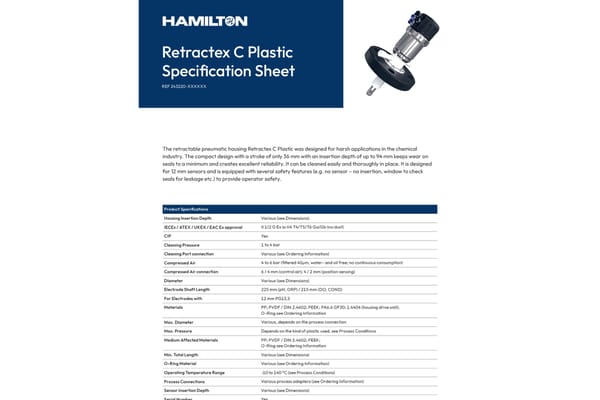

Retractex C Resources
