RetractoFit Sensor Housings

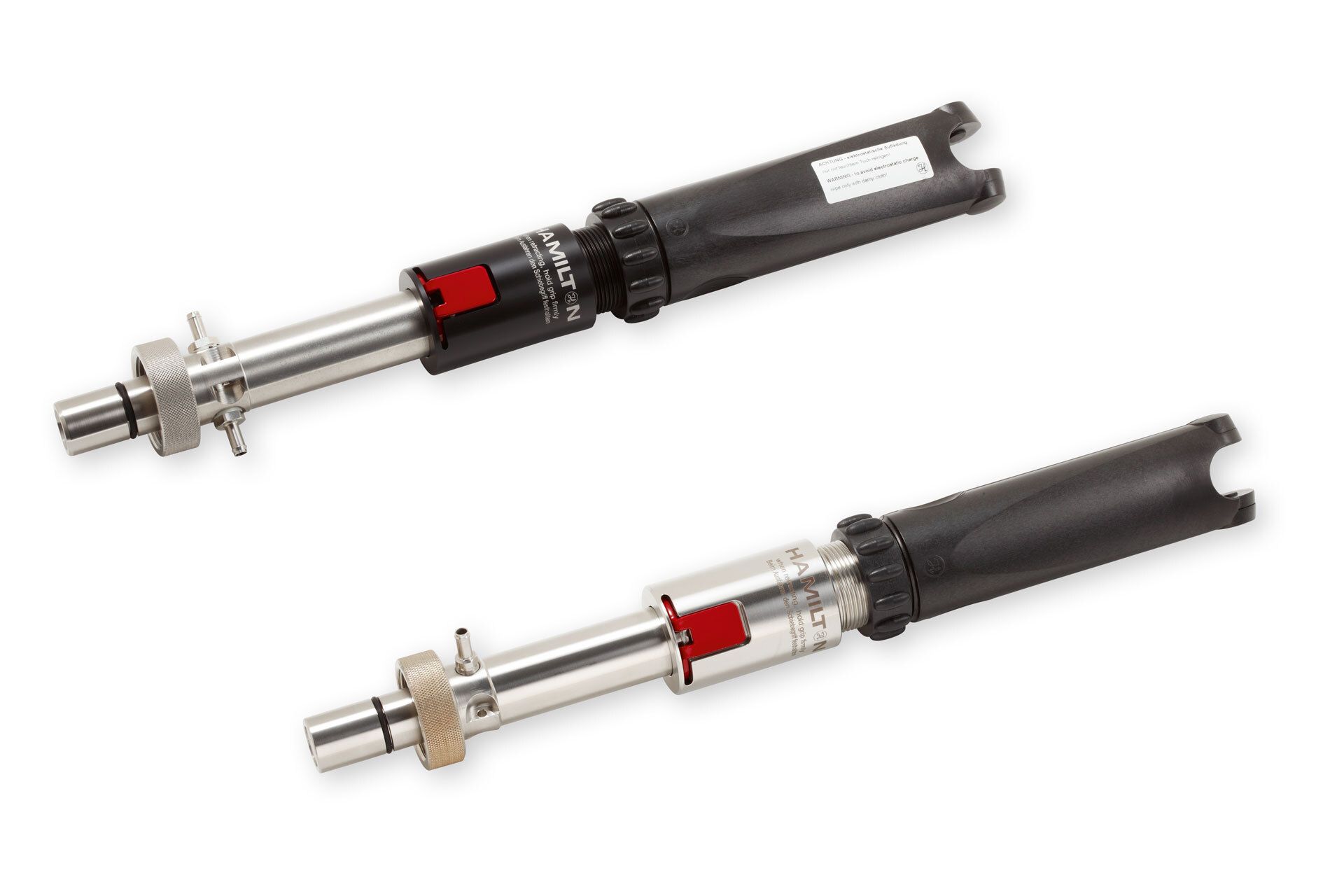

Retractofit Retractable Sensor housings

Safe sensor extraction during running processes.

The RetractoFit products are manually retractable housings designed for 225 mm sensors in industrial applications with process pressures up to 6 bar. They  allow mounting and dismounting of sensors while the process is running. For safe operation, the housing prevents insertion without a sensor and removal during measurement.  RetractoFit housings are easy to use and maintain: only one press on the red button is needed to move the sensor into or out of the process. All o-rings can easily be replaced by the operator without special tools. The RetractoFit is available in different versions.
Standard RetractoFit housings (237240 & 237490) have options for either stainless steel or PEEK wetted components. The RetractoFit Bio (237440 & 237480) includes a special rinsing chamber with angled connections for optimal cleaning.

  • I could not be more pleased with my experience with Hamilton!

    My company has been using Hamilton probes for years and have always been happy with their performance! The team is always very helpful in trouble shooting issues and answering any questions that we may have about our probes. Overall, I could not be more pleased with my experience with Hamilton!

    Abigail Mann
    Bioprocessing Fermentation Associate at Heliae Development

Benefits of using Hamilton RetractoFit Sensor Housings:

  • Contamination-Free Design

    The hygienic design of the housings avoids contamination.

  • Increased Safety

    Housings enable safe sensor extraction during a running process.

  • Ease of Use

    Simplified use and maintenance of the housings do not require the special tools.

RetractoFit Sensor Housings Resources

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Process analytics catalog

Catalog

Catalog - Process Analytics

Download the Process Analytics sensor catalog to learn about the complete offering of Hamilton process sensors and accessories.
Operating instructions retractofit easy

Technical Manual

Operating Instructions - RetractoFit Easy

Download the operating instructions for the RetractoFit Easy manual retractable sensor housing.

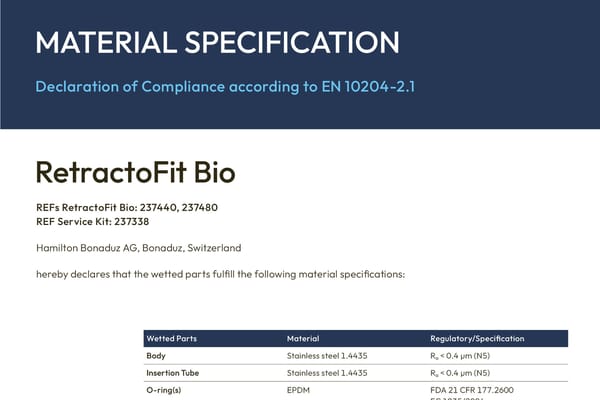

Material Specification document for RetractoFit Bio, Declaration of Compliance per EN 10204-2.1, showing wetted parts table

Material Specification

Material Specification - RetractoFit Bio - EN 10204-2.1 - 695204

Download the material specifications for the RetractoFit Bio retractable sensor housing, providing detailed information on material composition and relevant regulatory standards.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Gloved hand holding smartphone displaying sensor data graphs, with two process sensors connected via cables to steel equipment

Webinar

Revolutionizing Maintenance: Enhancing Performance and Efficiency with Intelligent Sensors

In this webinar, we discuss the possibilities available today to revolutionize the maintenance process and deliver better products at a reduced cost. By embracing the benefits of digital data, biotech companies can take advantage of the latest technology.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Green circular play button icon on a dark blue blurred background

Article

Retractex - Pneumatic Retraction and Cleaning

Trying to understand how Hamilton Retractex housings can be automated? This short video shows retraction and cleaning.
Green circle icon with a dark navy lightbulb containing two interlocking gears, on a teal dotted background.

Article

Glossary of Sensor & Biopharma Acronyms & Abbreviations

Acronyms and abbreviations are commonly used with process analytics measurements found in the biopharma industry. This glossary is an attempt to de-code some of the more frequently used acronyms.
Green circular play button icon on a dark blue blurred background

Article

Retractex - Manual Insertion and Seal Replacement

This short overview video demonstrates how Hamilton Retractex housings with the manual insertion option work as well as disassembly and seal replacement.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Two overlapping green speech bubbles with a question mark on a dark navy circular background

FAQ

Which retractable housing should I use?

Hamilton makes three families of retractable housings. The Retractofit is our basic manually retractable housing. It is only available with G1-1/4" process connection and has no other options. The Retractex family offers both manual and pneumatic versions with a variety of materials and process connections that can be selected depending on the applications. Finally the RetractoMaster is specifically designed for use with the ChemoTrode refillable sensors.
Two overlapping green speech bubbles with a question mark on a dark navy circular background

FAQ

Which Safety Socket do I need?

Hamilton Safety Sockets have three main options to consider - Stainless steel grade, angle, and length. Click to learn more.
