Arc Wi Wireless Bluetooth Adapters for probes
There are two versions of the Wi Wireless Bluetooth adapter. This article gets into the selection, wiring, and isolation of these products.
Hamilton manufactures the Arc Wi Adapters to provide Bluetooth wireless communications between Arc intelligent sensors and PCs / mobile devices running ArcAir software. There are two adapter versions: Wi 1G and Wi 2G. While these products look similar there are some basic considerations in selecting between each wireless product.
Wi 1G Bluetooth Adapter
Physical differences
The Wi 1G Adapter (Ref 243460) has a male VP connector. The cable required to connect to your control system needs a female VP connector.
When should I specify the Wi 1G Adapter?
The Wi 1G Adapter is a good choice for customers using the ECS signal (nA) or Modbus for direct connection to the bioreactor controller. Both ECS signal and Modbus RTU digital sensor signal pass through the Wi 1G Adapter. Wiring and recommended cables are listed below.
Note – a separate pulse width modulated 4 - 20mA output signal can also be derived from the Wi 1G Adapter but additional galvanic isolation maybe required. Refer to operators manual for more information.
Wi 1G wiring and accessories
| Ref | Description | Length | Interface |
|---|---|---|---|
| 243460 | Arc Wi 1G Adapter BT | – | Bluetooth 4.0 |
| 243499 | Wireless Converter BT | – | Bluetooth 4.0 |
| 355263 | Sensor Data Cable VP 8 | 1 m | 4-20 mA/Modbus |
| 355264 | Sensor Data Cable VP 8 | 3 m | 4-20 mA/Modbus |
| 355265 | Sensor Data Cable VP 8 | 5 m | 4-20 mA/Modbus |
| 355266 | Sensor Data Cable VP 8 | 10 m | 4-20 mA/Modbus |
| 355267 | Sensor Data Cable VP 8 | 15 m | 4-20 mA/Modbus |
| 355268 | Sensor Data Cable VP 8 | 20 m | 4-20 mA/Modbus |
| 355217 | Sensor Cable VP 8 | 1 m | ECS mode (only VisiFerm DO) |
| 355218 | Sensor Cable VP 8 | 3 m | ECS mode (only VisiFerm DO) |
| 355219 | Sensor Cable VP 8 | 5 m | ECS mode (only VisiFerm DO) |
| 355220 | Sensor Cable VP 8 | 10 m | ECS mode (only VisiFerm DO) |
| 355221 | Sensor Cable VP 8 | 15 m | ECS mode (only VisiFerm DO) |
| 355222 | Sensor Cable VP 8 | 20 m | ECS mode (only VisiFerm DO) |
Wi 2G Bluetooth Adapter
Physical Differences

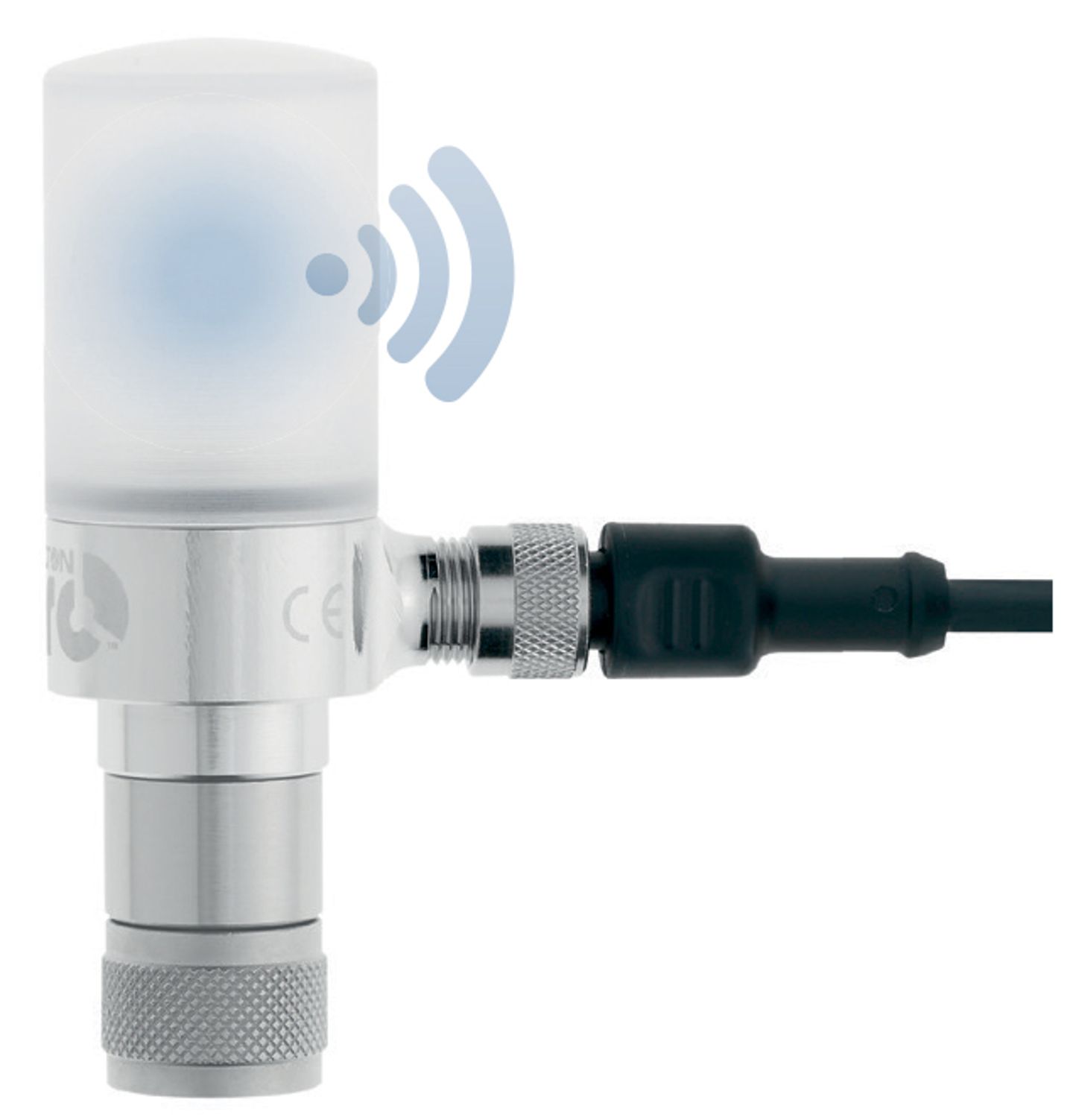

The Wi 2G Bluetooth Adapter (Ref 243470) uses an M12 8-pole connector to mate to the control system. The lighted connector head is also slightly taller (14mm) than the Wi 1G.
When should I specify the Wi 2G Adapter?

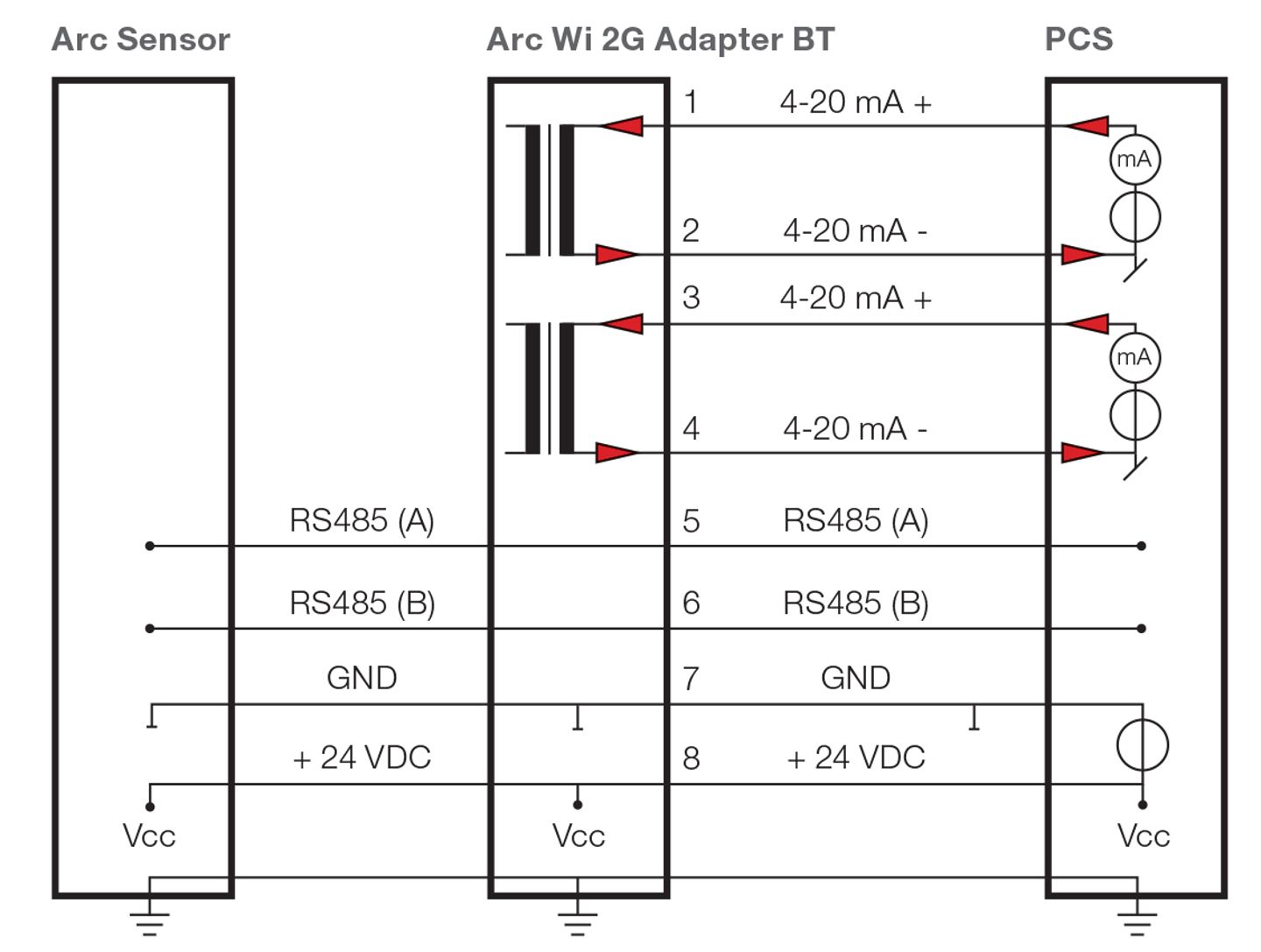

The Wi 2G Adapter includes internal galvanic isolation of the 4 - 20 mA current outputs which simplifies installation of four wire connections in production installations. It is a good choice for environments where the potential for a ground loop may exist. The Wi 2G Adapter passes through (2) each 4 - 20mA outputs as well as the Modbus RTU signal to the control system. Wiring and cable recommendations are listed below.
Wi 2G wiring and accessories
| Ref | Description | Interface |
|---|---|---|
| 243470 | Arc Wi 2G Adapter BT | Bluetooth 4.0 |
| 355320 | Sensor Cable M12 8 Pole | 4-20 mA/Modbus |
| 355321 | Sensor Cable M12 8 Pole | 4-20 mA/Modbus |
| 355322 | Sensor Cable M12 8 Pole | 4-20 mA/Modbus |
Related Content
- See how Arc Intelligent Sensors can be wired directly to process control equipment such as Programmable Logic Controllers (PLC).
- Using the 4 to 20mA for process control? Learn about how bilinear outputs can help improve your measurement.
- See the accessories pages to view cables for each Wi Adapter.
