|Electrical Connector||VP8 / VP8|
|Analog Interface 1||4 to 20 mA, programmable|
|Analog Interface 2||4 to 20 mA for Temp., programmable|
|Analog Interface 1 and 2||Galvanically not isolated; pulse width modulation 3.5 kHz|
|Frequency Range||2.45 GHz (IEEE 802.15.1)|
|Transmitting Power||Max. 4 dBm|
RS485 Modbus (max. 31 addresses)
|Max Range in Process Environment||~ 20 m|
|Operating Voltage||7 to 30 VDC|
|Operating Temperature Range||5 to 70 °C|
|Protection Rating||IP 67|

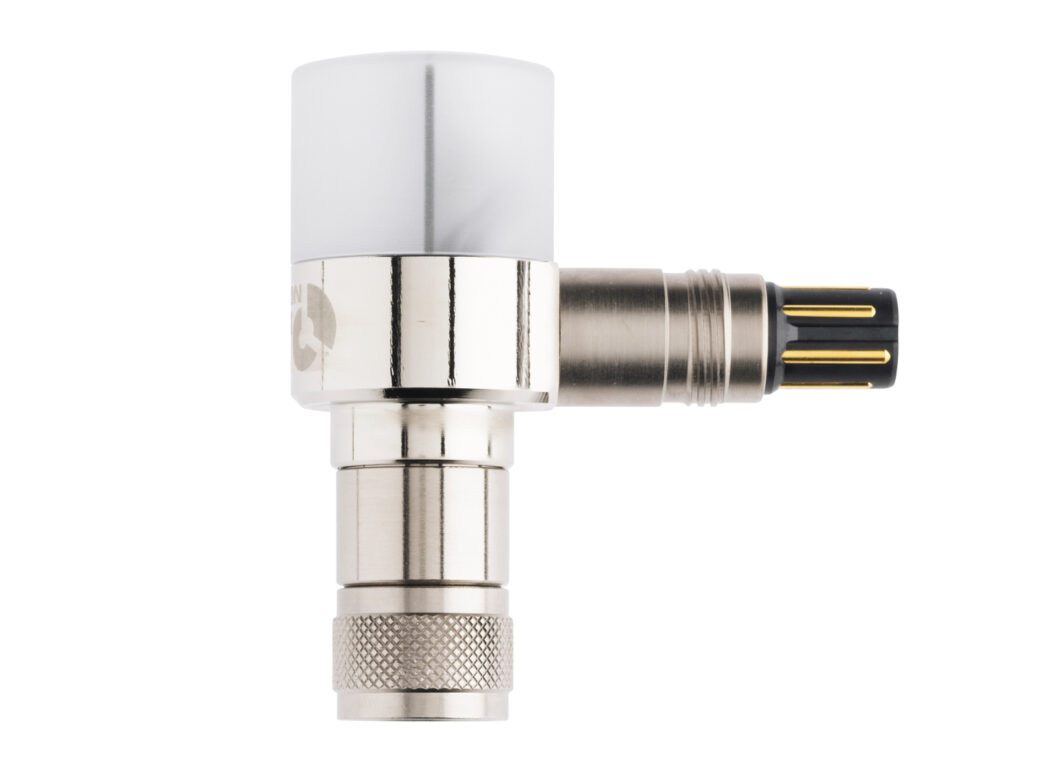

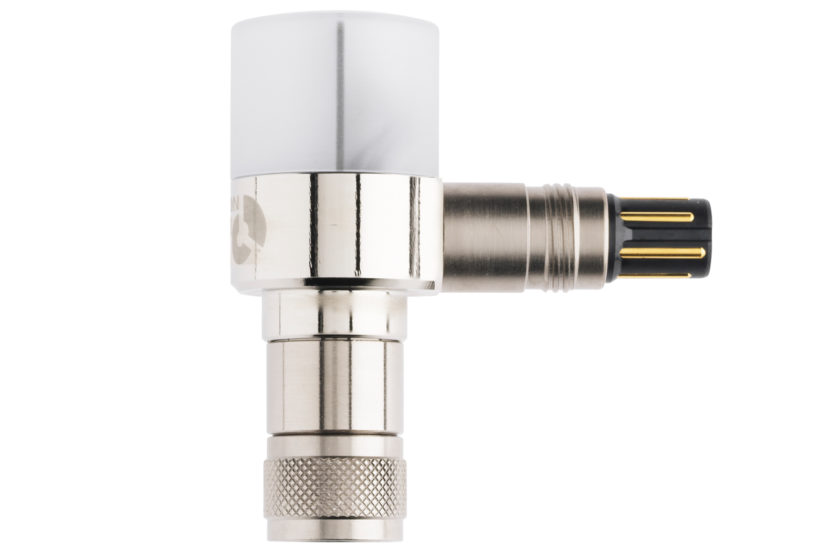

Specification SheetArc Wi 1G Adapter BT
Catalog - Process AnalyticsDownload the Process Analytics sensor catalog to learn about the complete offering of Hamilton process sensors and accessories.
Brochure - Arc Intelligent SensorsArc Intelligent sensors offer a new way to connect to your process control system.
How do I communicate with an Arc sensor?Arc sensors have a built-in micro-transmitter within the sensor. ArcAir software is a powerful tool to access data, configure and calibrate the sensor. This can be done with Bluetooth wireless communication or with a wired connection directly to a PC.
Which wireless adapter do I need for my sensor?Hamilton makes two Bluetooth wireless adapters - Wi 1G and Wi 2G. The Wi 1G is designed for VisiFerm sensors using the ECS (nA) signal. The Wi 2G is better choice with Arc sensors.
How do I calibrate my Arc sensor?ArcAir Basic and Advanced software have built in calibration and report tools for Arc sensors. Connect the Arc sensor to ArcAir and utilize the step by step calibration instructions. Click to learn more about connecting Arc sensors to ArcAir software.
ArcAir Software Connectivity OptionsCommunication between Arc sensors and ArcAir Software can be accomplished via wired or wireless (Bluetooth) connections.
Arc Wi Wireless Bluetooth Adapters for probesThere are two versions of the Wi Wireless Bluetooth adapter. This article gets into the selection, wiring, and isolation of these products.
Modbus Communication Basics for Arc Intelligent SensorsThis simple primer article discusses the basic setup of Modbus for Arc intelligent sensors and VisiFerm ECS DO sensors.
