Cell Care STAR
Consistent Cultures
Cell Maintenance
Reproducible and Scalable
All-in-One Solution
6-, 24-, 96-Well
Walkaway High-Throughput
User-Friendly Interface
Cell Control Software
Real-Time Monitoring
Standardized Cell Culture Workflows
Cell culture maintenance and a wide range of cell-based workflows are fully supported by this integrated platform, powered by Cell Control Software.

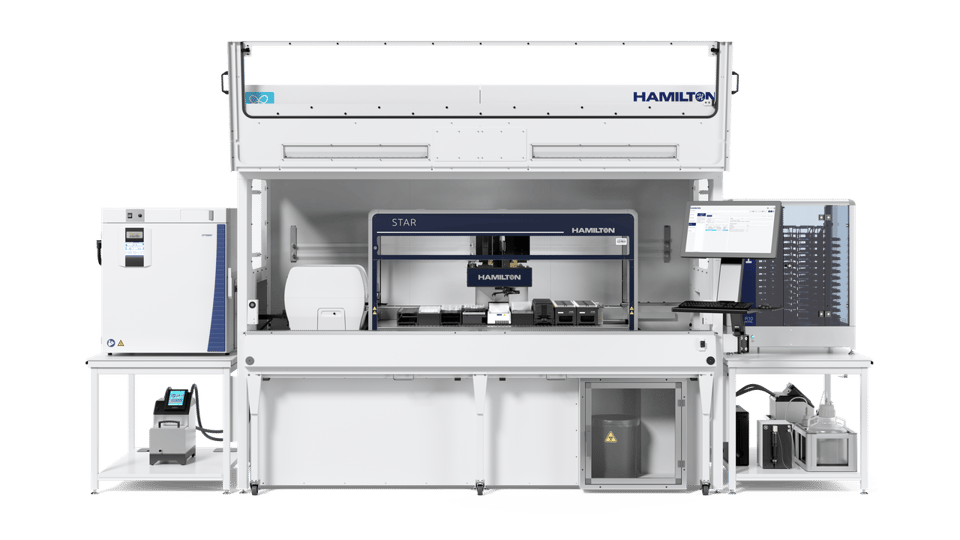

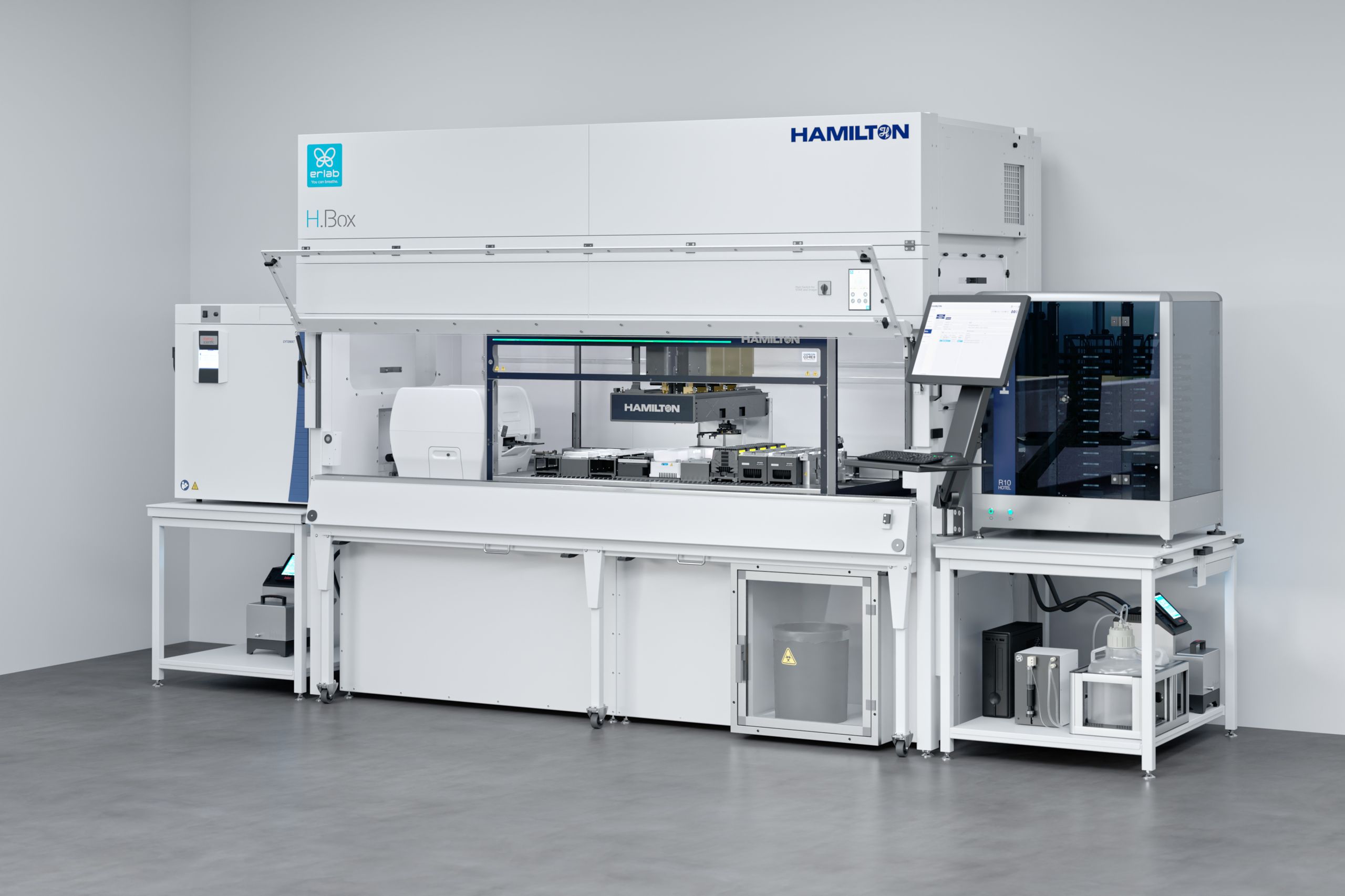

Automated Solution for Mammalian Cell Culture
The Cell Care STAR is designed to standardize and scale adherent mammalian cell culture and downstream cell-based workflows. Built on Hamilton’s market-leading Microlab STAR liquid handling platform and housed in a biosafety class II cabinet, this all-in-one solution integrates automated incubation for up to 170 plates, a high-resolution Cell Imaging Reader, and a plate hotel with capacity for up to 130 plates. On deck, DeckWatch features two cameras that continuously record and monitor workflow steps in real time. This preconfigured, fully automated workstation enables seamless scheduling over multiple weeks, supporting uninterrupted cell culture workflows with minimal user intervention.
Great Care for Your Mammalian Cells
The system is designed to accommodate ANSI/SLAS barcoded culture plates in various formats, enabling precise sample tracking and full batch traceability. It features a comprehensive portfolio of advanced modules that ensure cells are handled with accuracy, consistency, and optimal care across a wide range of cell culture applications.
Cell Control Software
Cell Care STAR is powered by intuitive Cell Control software, designed for users managing long-term cell culture workflows. The software enables flexible execution of complex automated processes while simplifying the management of process parameters.
Common applications Cell Biology, Cell Culture, Cell-Based Assays, Pharma & Biopharma, Drug Discovery
Featured Technologies
-
Liquid Handling TechnologyTADM – Total Aspiration & Dispense Monitoring
For Real-Time Pipetting Accuracy
During aspirate and dispense steps, TADM monitors real-time pressure changes in each Hamilton liquid handler pipetting channel. Results are compared against expected values to expose anomalies like bubbles and insufficient volumes. Sample transfers are verified with a digital audit trail.
-
Transport SolutionsPlate Gripper
For Flexible Integration
Plate Grippers move labware to-and-from any position on the Hamilton automated liquid handling deck. For even greater hands-free efficiency and workflow integration, the Plate Grippers can transport plates to-and-from nearby off-deck devices (access location is platform-specific).
-
Pipetting TechnologyDPS - Dynamic Positioning System
For Efficient Movements
DPS enables all channels to pipette simultaneously, even across non-uniform patterns. Unlike fixed channels with equidistant spreading, DPS offers efficient yet flexible liquid handling for cherry picking, non-uniform and variable volume samples, and complex pipetting workflows.
As a pre-configured, off-the-shelf automated workstation, Cell Care STAR combines optimized hardware and software into a turnkey solution that’s ready to use upon arrival.
Standardized cell maintenance and cell-based workflows eliminate manual variability and enhance reproducibility across laboratories, even as processes scale.
Cell Control software offers a flexible, user-friendly interface that supports resource forecasting, real-time consumable monitoring, and complete batch traceability.
The Cell Care STAR includes onboard imaging, incubation, waste management, and storage to maximize continuous operation with minimal user intervention.
Explore the Cell Care STAR

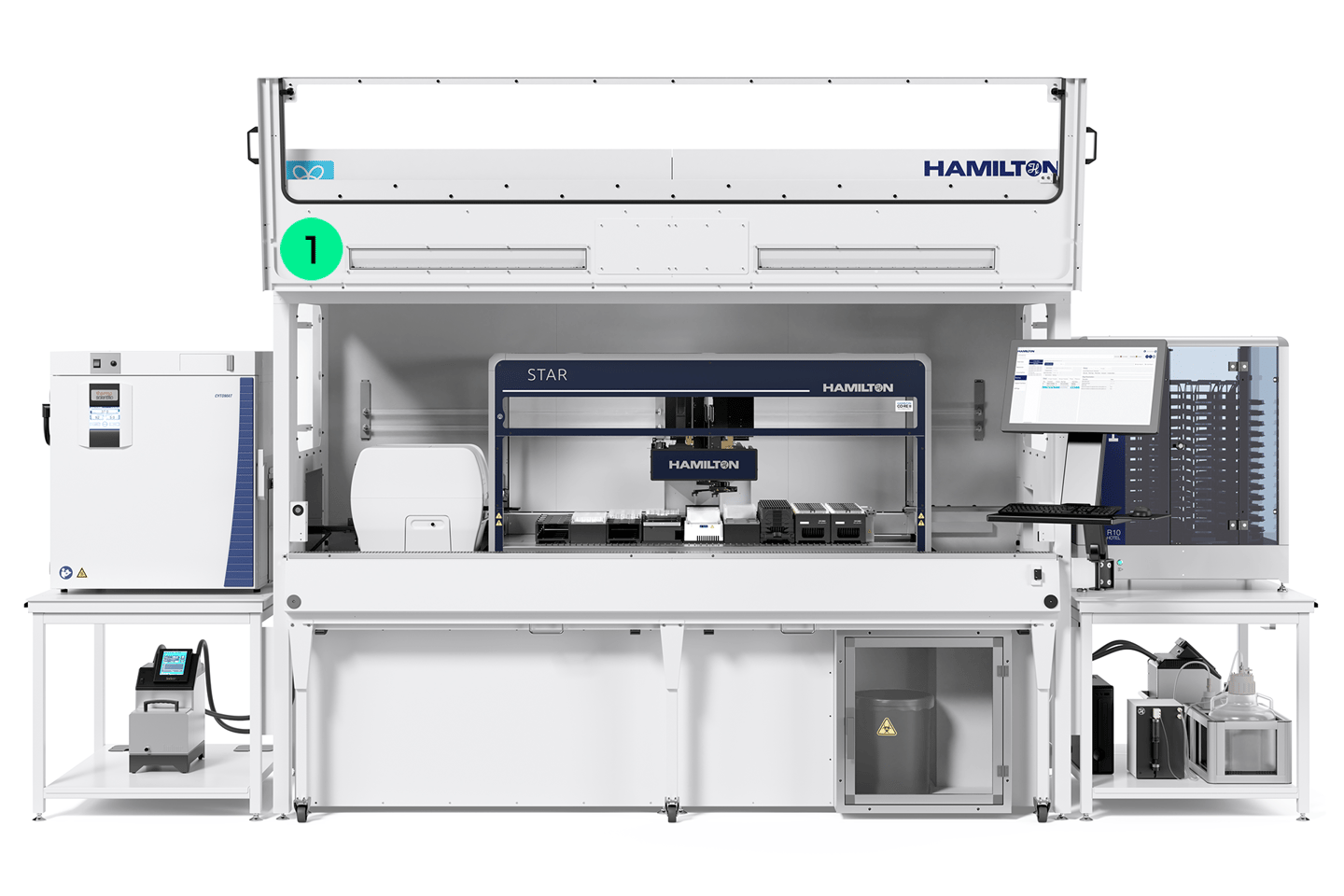

1
Erlab Noroit Class II Safety Cabinet
The Erlab Noroit H-Box Biosafety Cabinet protects samples, users, and the environment with HEPA H14 filtration and an ergonomic design.
2
Microlab STAR
The Microlab STAR automated liquid handler provides unmatched pipetting accuracy and precision using CO-RE II Technology. It also houses modules that support comprehensive cell culture workflows.

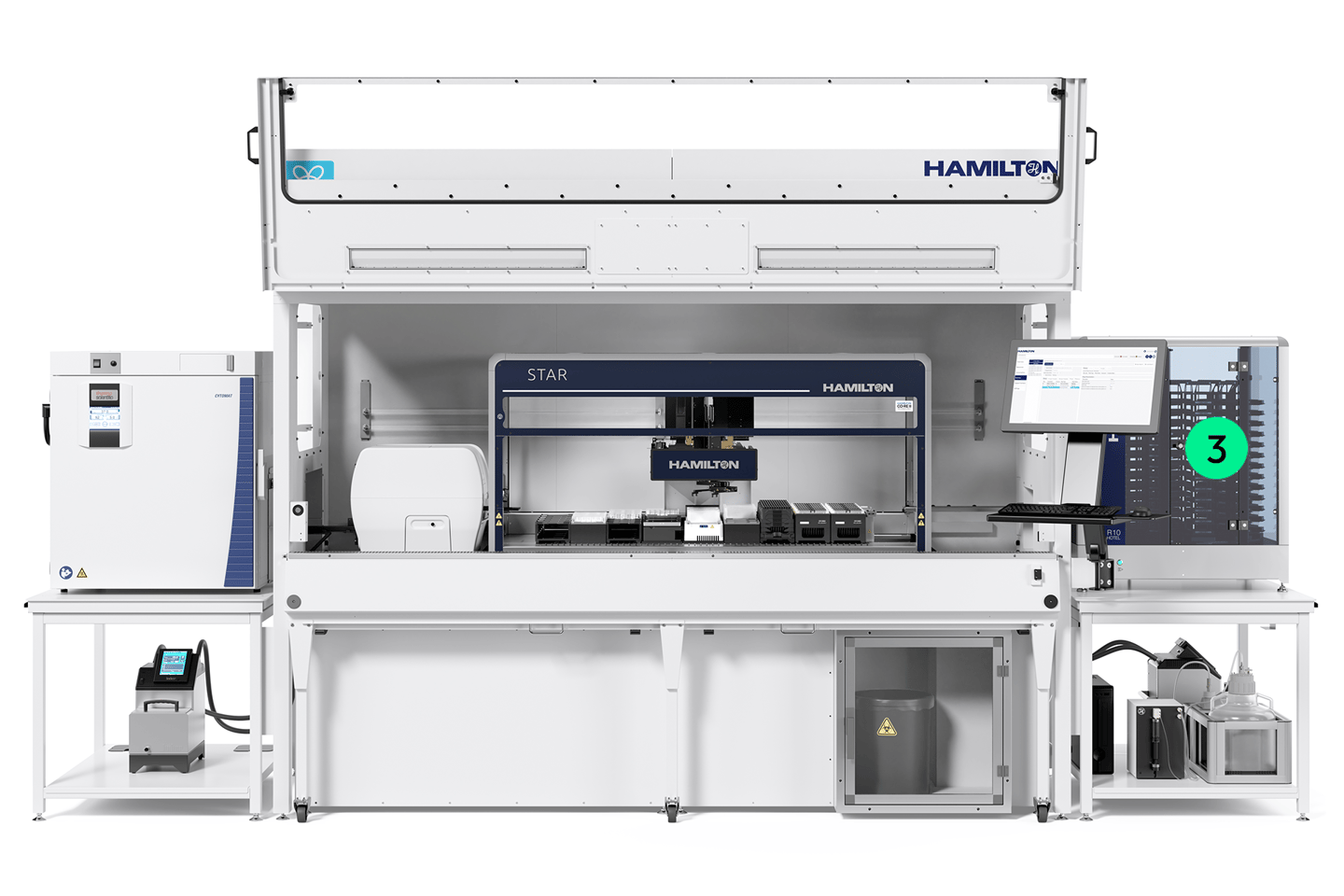

3
Hamilton R10 Hotel
This plate hotel securely stores up to 130 ANSI/SLAS plates to boost cell culture automation efficiency.

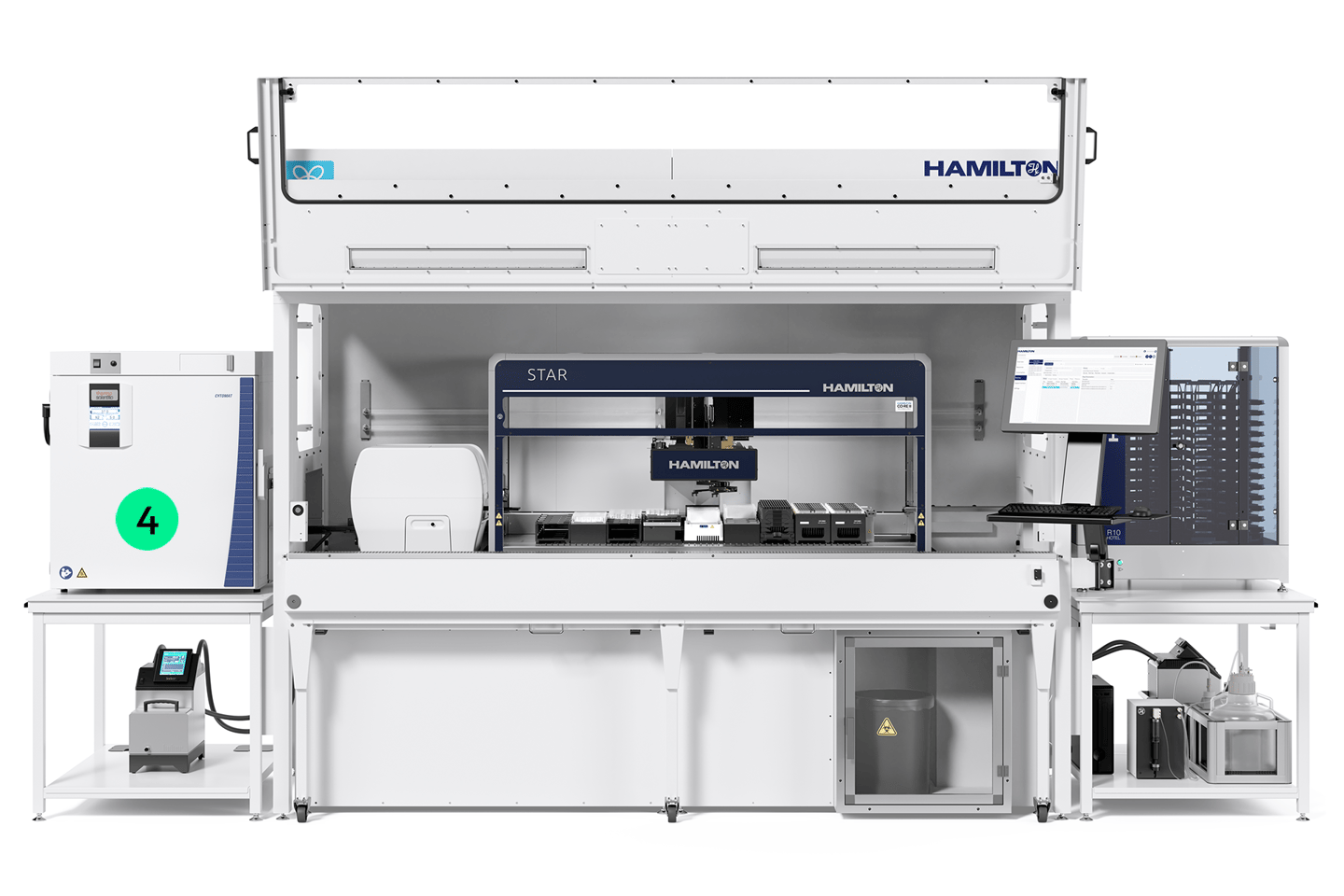

4
Thermo Scientific Cytomat 10 C Cell Incubator
The automated incubator, hosting up to 170 plates, provides the ideal environment to ensure optimal and consistent cell growth conditions.

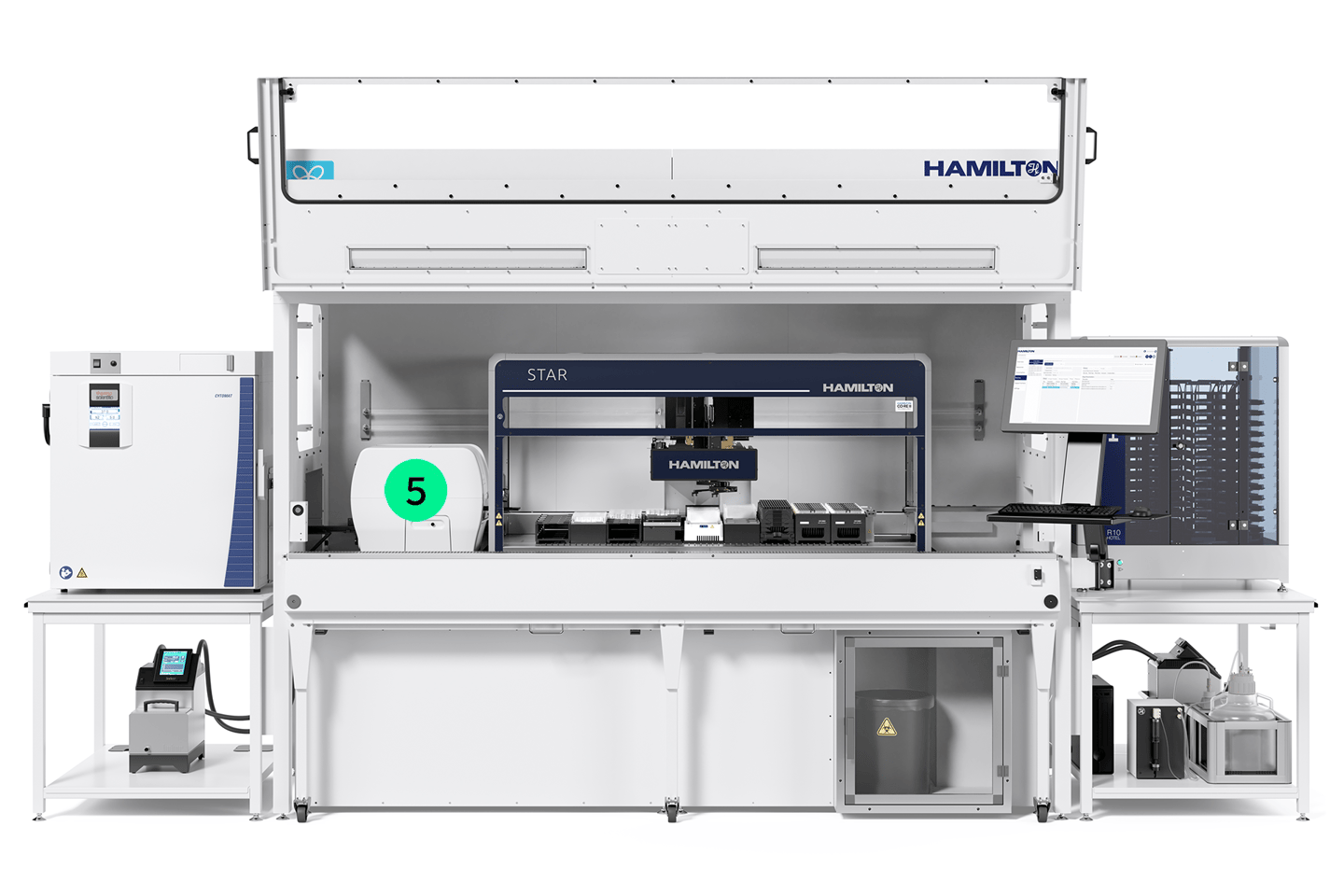

5
Agilent BioTek Cytation 1 Cell Imaging Reader
This cell imaging plate reader combines fluorescence and brightfield imaging with multi-mode detection for cell imaging, making it ideal for morphology and confluency checks.

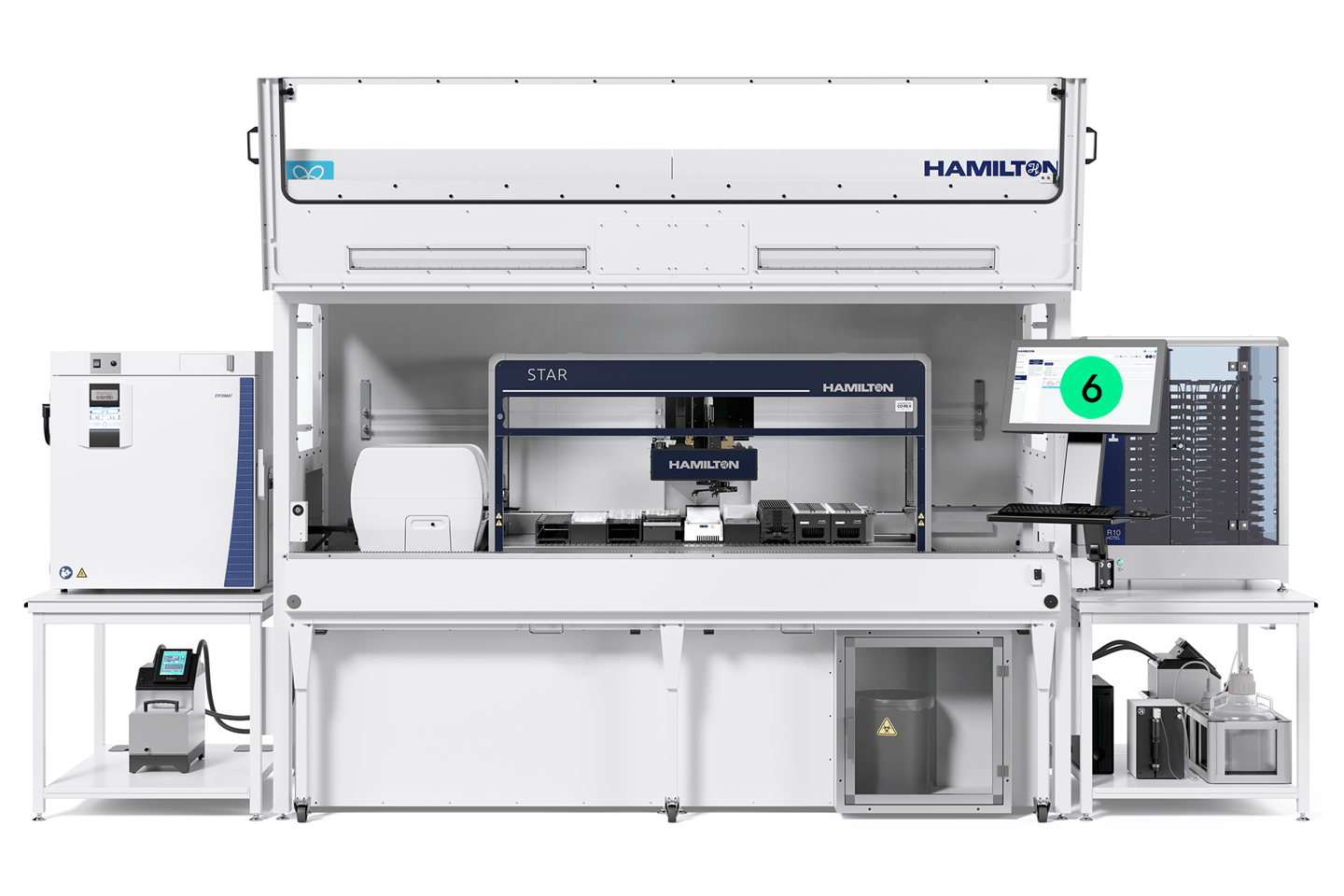

6
Cell Control Software
Cell Control software provides real-time system and batch updates to enable effortless monitoring and timely user intervention in dynamic cell-based workflows.
Cell Care STAR Specifications
Cell Care STAR Specifications
PrintSystem Dimensions
- Height
- 2.48 m (8 ft, 1.6 in)
- Width
- 4.75 m (15 ft, 6.97 in)
- Depth
- 1.34 m (4 ft, 4.91 in)
Transport Tools
- CO-RE Gripper
- Standard
- Internal Plate Gripper (IPG)
- Standard
Platform/Accessories
- Capacity (ANSI/SLAS Positions)
- Up to 170
- Device Integration
- 180° (Left and Right)
Sample Loading and Tracking Options
- Sample Loading
- Automatic
- Autoload Barcode Scanner (1D)
- Standard
Pipetting Options
- 1 mL Channels
- 8
- Pipetting Range 1
- 1 µL - 1000 µL
1 Depending on Configuration
Cell Care STAR Resources
Browse app notes, user guides, specification documents, and more in our Knowledge Center.
Browse app notes, user guides, specification documents, and more in our Knowledge Center.
Browse app notes, user guides, specification documents, and more in our Knowledge Center.
