1700 Series Syringes

Hamilton 1700 series syringes offer precise, leak-free liquid and gas handling for dispensing volumes from 1 µL to 500 µL. With many configurable options, these gastight syringes are ideal for versatile use.

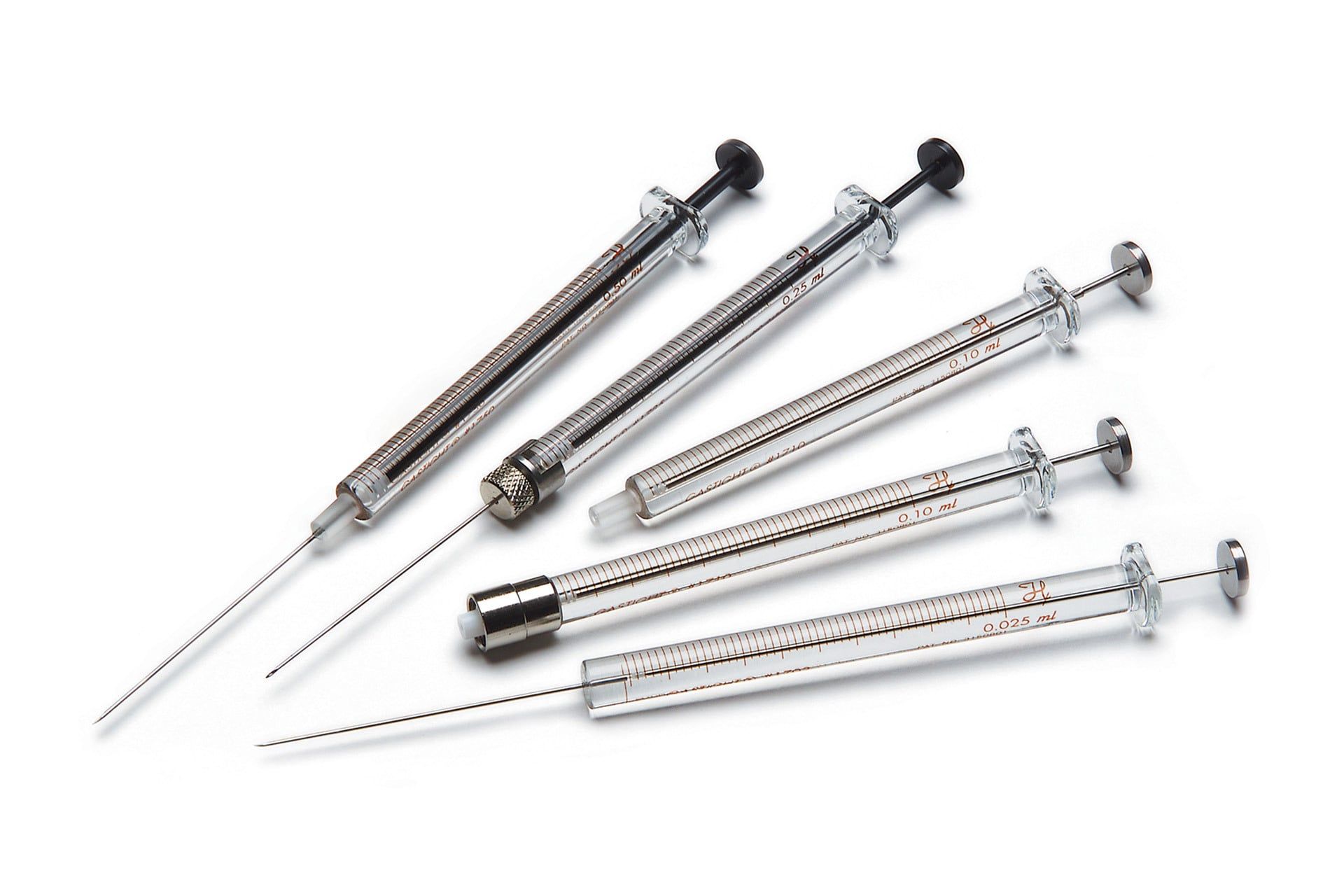

Syringe 1700 Series

Leak-free performance for precision dispensing

As the gastight version of our renowned 700 series syringes, Hamilton 1700 Series Gastight Syringes deliver high-precision liquid and gas handling in analytical and laboratory applications. Constructed with a high-precision glass barrel and a gastight PTFE plunger tip, the 1700 series syringes are ideal for applications requiring high accuracy and repeatability.

Select from multiple volumes, syringe types, terminations, and needles for diverse application compatibility.

What you can expect

  • Choices to fit broad application range

    Dispenses gases and liquids from 1 µL-500 µL with many configuration options to personalize your gastight syringe.

  • Highly accurate and repeatable operation

    An airtight seal from the syringe’s PTFE plunger tip prevents evaporation, contamination and sample loss.

  • Durable and long-lasting dispensing

    Engineered for repeatable performance and chemical resistance, even when working with volatile samples.

View all 1700 Series Gastight Syringes

Compare
Part # Volume Syringe Type Termination Point Style Needle Length Syringe Variation Sales Quantity

JavaScript is required to view and filter products in this category.

Hamilton 1700 Series Specifications

Model NumberVolumeBarrel Inner DiameterStroke LengthOperating PressureOperating Temperature
170110 µL0.46 mm60 mm7 MPa10 - 115 °C1
170225 µL0.73 mm60 mm7 MPa10 - 115 °C1
170550 µL1.03 mm60 mm7 MPa10 - 115 °C1
1710100 µL1.40 mm60 mm7 MPa10 - 115 °C1
1725250 µL2.30 mm60 mm3 MPa10 - 115 °C1
1750500 µL3.26 mm60 mm3 MPa10 - 115 °C1

1 If the syringe termination is a cemented needle or luer tip cemented needle, then the maximum temperature is 50 °C.


Additional Syringe Resources

Glass Syringe Care and Use

With proper care and handling, Hamilton syringes have provided unsurpassed performance for many years. Hamilton manufactures a variety of syringe accessories to improve or modify the functionality of a standard syringe, including tools to prevent plunger bending, increase reproducibility, and clean the syringe for a prolonged lifetime.
HAM Guide Syringe Use Care

Try the Visual Needle Builder

Take the hassle out of syringe needle selection with Hamilton's visual tool to guide you through the selection process.
Hamilton Needle Builder

Hamilton Grants

Hamilton Company has always been a proud supporter of higher education and learning. We currently offer grant programs available to teaching and research facilities to help with research and discovery. Each month, multiple winners are selected and announced on our social media feed.
Hamilton Syringe Grant Thumbnail

University Discount Program

Hamilton is committed to higher education and believes in the importance of developing the next generation of scientists. Learn how you can save 25% on all syringes, needles, pipettes, tips, and HPLC columns purchased throughout the year.
Hamilton University Discount

1700 Series Gastight Syringes Resources

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

HAM Reference Guide Syringes Needles

Catalog

Reference Guide - Laboratory Syringes and Needles

The Syringe and Needle Reference Guide provides detailed information on Hamilton’s full portfolio of syringes and needles. Everything from cleaning to selection charts to help you choose between syringe terminations.
HAM Guide Syringe Needle Assembly

Guide

Guide - Syringe and Needle Assembly

Take a look at our useful syringe and needle assembly guide. See how to easily assemble and disassemble or lab syringes. We combine the highest quality materials with skilled craftsmanship, ensuring the highest possible performance of every precision fluid device we manufacture. With proper care and handling, the Hamilton needles will provide years of use.
HAM Catalog Selecting Right Syringe

Guide

Hamilton Guide to Selecting the Right Syringe

Select the right type of syringe for your manual application. View our syringe size chart and learn more about Hamilton's lab syringe needles in this guide. Top-quality materials and skilled workmanship ensure that our syringes consistently deliver the highest performance for reliable analyses.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

What needle do i need

FAQ

I have a syringe, which needle do I need?

If you already have a syringe and need a Hamilton needle, you can determine the appropriate needle if you know one of the following: 1) the glass syringe termination; 2) the glass syringe part number; or whether you are dealing with a common plastic syringe. Click the heading to learn more.
Accuracy of Hamilton syringes 1

FAQ

What is the difference between a Syringe and a Calibrated Syringe?

These syringes are manufactured the exact same way. The Calibrated Syringe is a serialized syringe including a Certificate of Calibration traceable to NIST, whereas the Syringe does not include a certificate. Hamilton Company offers a recalibration service for Calibrated Syringes. All Calibrated Syringe part numbers begin with CAL.
Accuracy of Hamilton syringes 1

FAQ

What is the accuracy of Hamilton syringes?

Hamilton syringes are manufactured to be accurate within ±1% of nominal volume, and with precision within 1%, measured at 80% of total scale volume. The design of our barrel and plunger dimensions assures high levels of accuracy and precision. The Hamilton Company Quality System is ISO 9001: 2015 certified.
