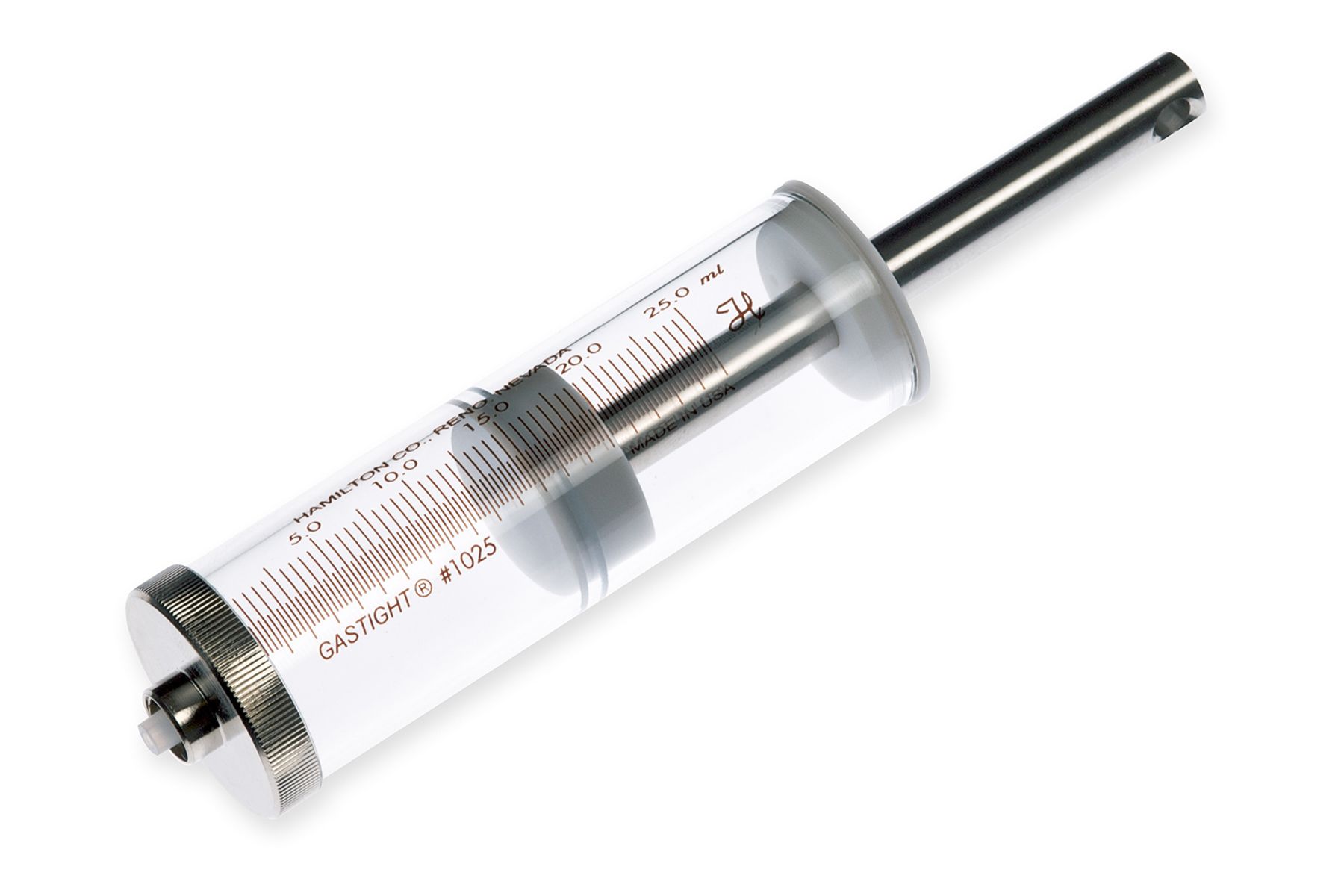

25 mL, Gastight Instrument Syringe, PTFE Luer Lock (TLL), PN: 9880-55

No Needle Available

Part # 9880-55

This 1000 series syringe is a Gastight #1025 syringe designed to manually dispense heterogeneous, volatile, and viscous samples. Commonly used with instruments. This 25 mL syringe (PN: 9880-55) has a PTFE Luer Lock (TLL) termination.

Receive More Information

Minimum: 1, Maximum: 1000

25 mL, Gastight Instrument Syringe, PTFE Luer Lock (TLL), PN: 9880-55 Details

Hamilton's 1000 series, Gastight Instrument # 1025   PTFE Luer Lock (TLL) Syringe with Side Post Mounting (XL) plunger is designed for dispensing both liquids and gases in a variety of instruments. Compatible with standard female Luer Lock connections. The 1000 series is a mid-volume GasTight syringe. They feature a polymer plunger tip that creates a leak-free seal. With a wide range of volume capabilities, terminations, needle options, and plunger styles, this syringe series provides exceptional flexibility and versatility. Hamilton syringes ensure an accuracy of ± 1%, superior durability, and are manufactured with the highest quality chemically resistant materials.

Polymer Plunger Tip

  • A white polymer plunger tip effectively wipes the glass barrel, creating a leak-free seal.
  • Ensures a Gastight performance, suitable for liquids and gases.

Side Post Mounting Plunger

  • Incorporates a stop mechanism to protect the plunger tip, enhancing durability and reliability for instrument use.
  • Specifically designed for full-height syringes with a 60 mm stroke length.
Scientific Citations

  • Gastight Syringes Ensures Integrity of Environment Sensitive Catalysts (or Samples)

    For such, we utilize highly reactive catalysts that are in many cases air and moisture-sensitive. Gastight Hamilton syringes are essential to maintaining the catalyst integrity and, therefore, ensuring reproducible and trustable results.

    Stella A. Gonsales
    Assistant Professor, University of Chemistry and Technology Prague | Department of Polymers

25 mL, Gastight Instrument Syringe, PTFE Luer Lock (TLL), PN: 9880-55 Specifications

Print
Volume 25 mL
Syringe Type Gastight
Syringe Series 1000
Termination PTFE Luer Lock (TLL)
Needle Instrument Syringe
Gauge No Needle Included
Point Style No Needle Included
Needle Length No Needle Included
Plunger Style Side Post Mounting (XL)
Fluid Path Borosilicate glass, PTFE
Autoclavable No
Gas Sterilizable Yes
Pressure 100 psig (6.9 bar)
Maximum Operating Temperature 80°C / 176°F
Minimum Operating Temperature 10°C / 50°F
Barrel Inner Diameter 0.907 inches (23.0 mm)
Barrel Outer Diameter 1.07 inches (27.1 mm)
Std Needle Dead Volume N/A
Sales Quantity 1 syringe per pack
Syringe Model Number 1025

25 mL, Gastight Instrument Syringe, PTFE Luer Lock (TLL), PN: 9880-55 Resources

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

HAM Reference Guide Syringes Needles

Catalog

Reference Guide - Laboratory Syringes and Needles

The Syringe and Needle Reference Guide provides detailed information on Hamilton’s full portfolio of syringes and needles. Everything from cleaning to selection charts to help you choose between syringe terminations.
HAM Guide Syringe Use Care

Guide

Syringe Care and Use Guide

Hamilton’s Syringe Care and Use guide outlines the basics of daily syringe use and operation so that scientists and technicians can achieve the highest level of accuracy and precision. Important topics covered include inspection, operating temperature, trapped air, and sample carryover.
HAM Catalog Selecting Right Syringe

Guide

Hamilton Guide to Selecting the Right Syringe

Select the right type of syringe for your manual application. View our syringe size chart and learn more about Hamilton's lab syringe needles in this guide. Top-quality materials and skilled workmanship ensure that our syringes consistently deliver the highest performance for reliable analyses.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Hamilton 59000-15, 50 Microliter Gastight Model 1705 Bubble Free Prime Instrument Syringe

Article

Gastight Syringe Operating Parameters

Access operating parameters for Hamilton’s Gastight Syringes, including the 1000, 1700, and 1800 Series, as well as Super Syringes. Ensure optimal performance and compatibility for your application.
Syringe 1800 Series

Article

Syringe Dimensions

See the specific volumes, outer diameter measurements, and inner diameter measurements of all microliter syringes.
Microliter vs. Gastight Article

Article

What's the Difference Between Microliter vs. Gastight Syringes?

In this article, we grouped our most popular syringes by unique physical characteristics and materials, making it easy to compare microliter and gastight syringes. We also provide a detailed anatomy of each syringe.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Accuracy of Hamilton syringes 1

FAQ

What is the difference between Bubble Free Prime (BFP) Syringes and Luer Lock (TLL) Syringes?

For any syringe pump, the key to achieving the most accurate dispenses is eliminating all air from the fluid path. Traditional syringes trap approximately 50 μL of air between the tip of the syringe and the valve. For small syringes, this trapped air is the last to leave the syringe and the first to be drawn back in, making them difficult to prime. The Bubble Free Prime (BFP) syringe features a conical plunger tip which expels the air from the syringe and valve decreasing the number of priming cycles required to eliminate air bubbles from within the flow path.
Accuracy of Hamilton syringes 1

FAQ

What are the most versatile syringes made by Hamilton?

Gastight syringes are the most versatile syringes. Plungers are replaceable if they get bent. Any of the Metal hub, Kel-F or Removable needle allow for the replacement of needle if they become bent or plugged.
Plunger faq

FAQ

Can I order a replacement plunger for my syringe?

Most Gastight syringes have replacement plungers available under 'Accessories' on the product page, while Microliter syringes do not. 7000 series modified Microliter syringes have zero dead volume and a small plunger wire, but it's best not to remove the needle or plunger to avoid damaging the wire.
