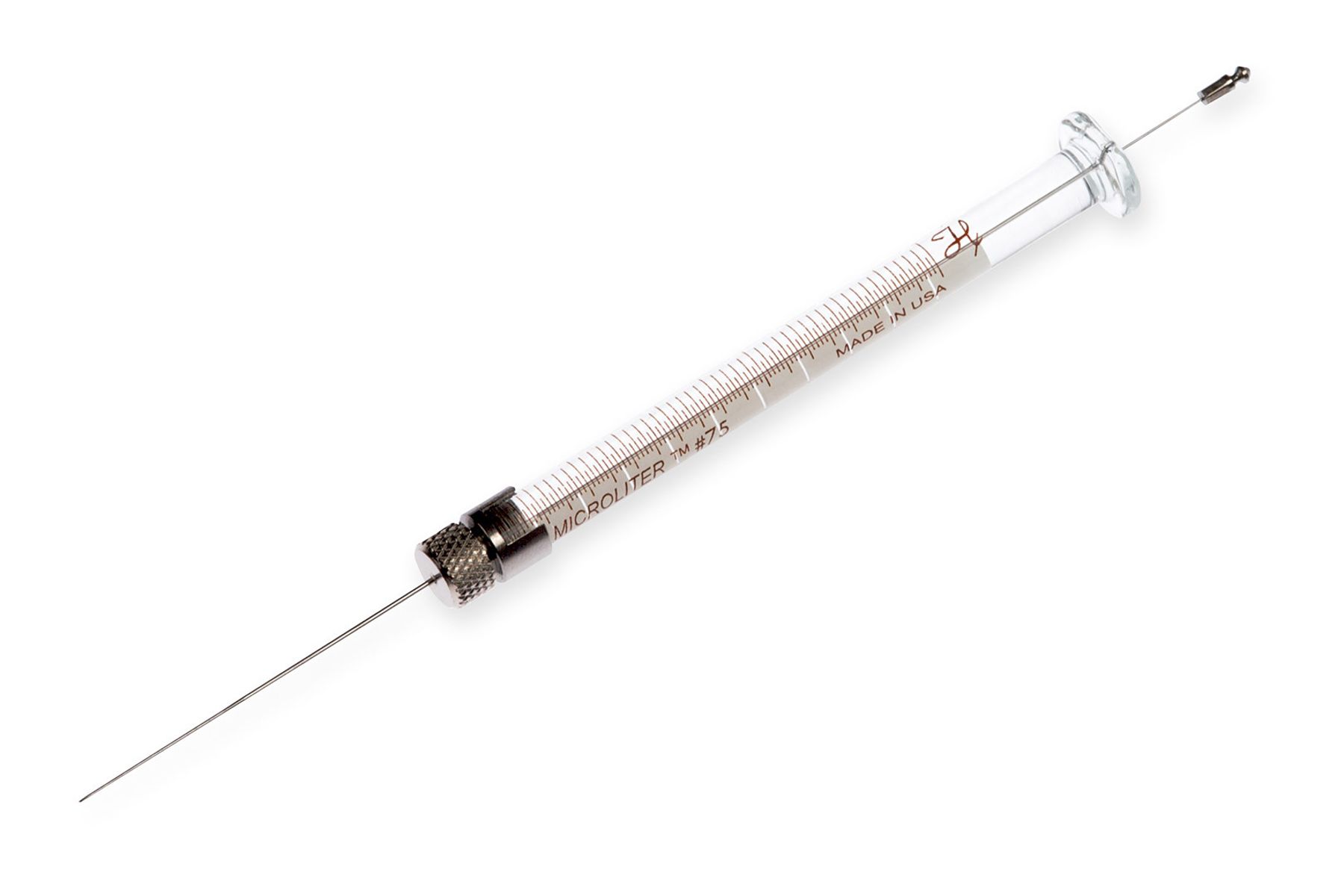

5 µL Microliter Autosampler Agilent Syringe Removable Needle (RN), PN: 87959

23s-26s gauge, 1.71 in (43.4 mm), point style AS: conical, autosampler

Part # 87959

This 700 series #75 syringe features a stainless-steel plunger individually fitted to its barrel, giving it a velvet feel. This 5 µL syringe (PN: 87959) is made from high-quality and chemically resistant materials. View Compatible Autosamplers

Buy Now

Price

$

Minimum: 1, Maximum: 1000
Quantity: 1| Print

5 µL Microliter Autosampler Agilent Syringe Removable Needle (RN), PN: 87959 Details

Hamilton's 700 series, Microliter #75 Removable Needle (RN) Syringe compatible with Agilent GC Autosamplers 7693A, 7673, 7683, 6850.

Hamilton's 700 series syringes offer a velvet feel, featuring a stainless-steel plunger crafted to fit the glass barrel with a tolerance of less than three-thousandths of a millimeter. Designed for Agilent GC autosamplers, these syringes ensure dimensional accuracy, optimal needle length, and superior durability. Hamilton's rigorous quality control guarantees the highest standards of accuracy and precision.

Compatible Autosamplers:

Removable Needle Syringes for Agilent GC 7693A, 7673, 7683, 6850 ALS



Common applications Veterinary Sciences

Agilent Autosampler Syringe

  •  Specialized plunger-head ensures optimal alignment and injection accuracy.
  • The Needle termination is designed for high precision and minimal dead volume.

Stainless Steel Fitted Syringe Design

  • Each Microliter Syringe features a stainless-steel plunger fitted precisely to its glass barrel for optimal performance.
  • A tolerance of less than 0.003 mm guarantees precise performance.
Scientific Citations

  • Precise Micro-injections with Zero Dead Volume

    In invertebrate model organisms, I prefer Hamilton syringes in my studies because of the low margin of error, no dead volume, and customizable tip options for innate immunity or survival etc.

    Serhat Kaya, Ph.D.
    Senior Researcher, Çanakkale Onsekiz Mart University | Turkey | Department of Biology

5 µL Microliter Autosampler Agilent Syringe Removable Needle (RN), PN: 87959 Specifications

Print
Volume 5 µL
Syringe Type Microliter
Syringe Series 700
Termination Removable Needle (RN)
Needle Small RN
Gauge 23s-26s gauge
Point Style AS: Conical, Autosampler
Needle Length 1.71 inches (43.4 mm)
Plunger Style Agilent Plunger
Fluid Path SST, borosilicate glass
Autoclavable Yes
Gas Sterilizable Yes
Pressure 2000 psig (137.9 bar)
Maximum Operating Temperature 80°C / 176°F
Minimum Operating Temperature 10°C / 50°F
Barrel Inner Diameter 0.014 inches (0.343 mm)
Barrel Outer Diameter 0.260 inches (6.60 mm)
Needle Inner Diameter 0.0133 - 0.005 inches (0.64 - 0.13 mm)
Needle Outer Diameter 0.0283 - 0.0187 inches (0.72 - 0.47 mm)
Std Needle Dead Volume 0.46 µL
Sales Quantity 1 syringe per pack
Syringe Model Number 75
