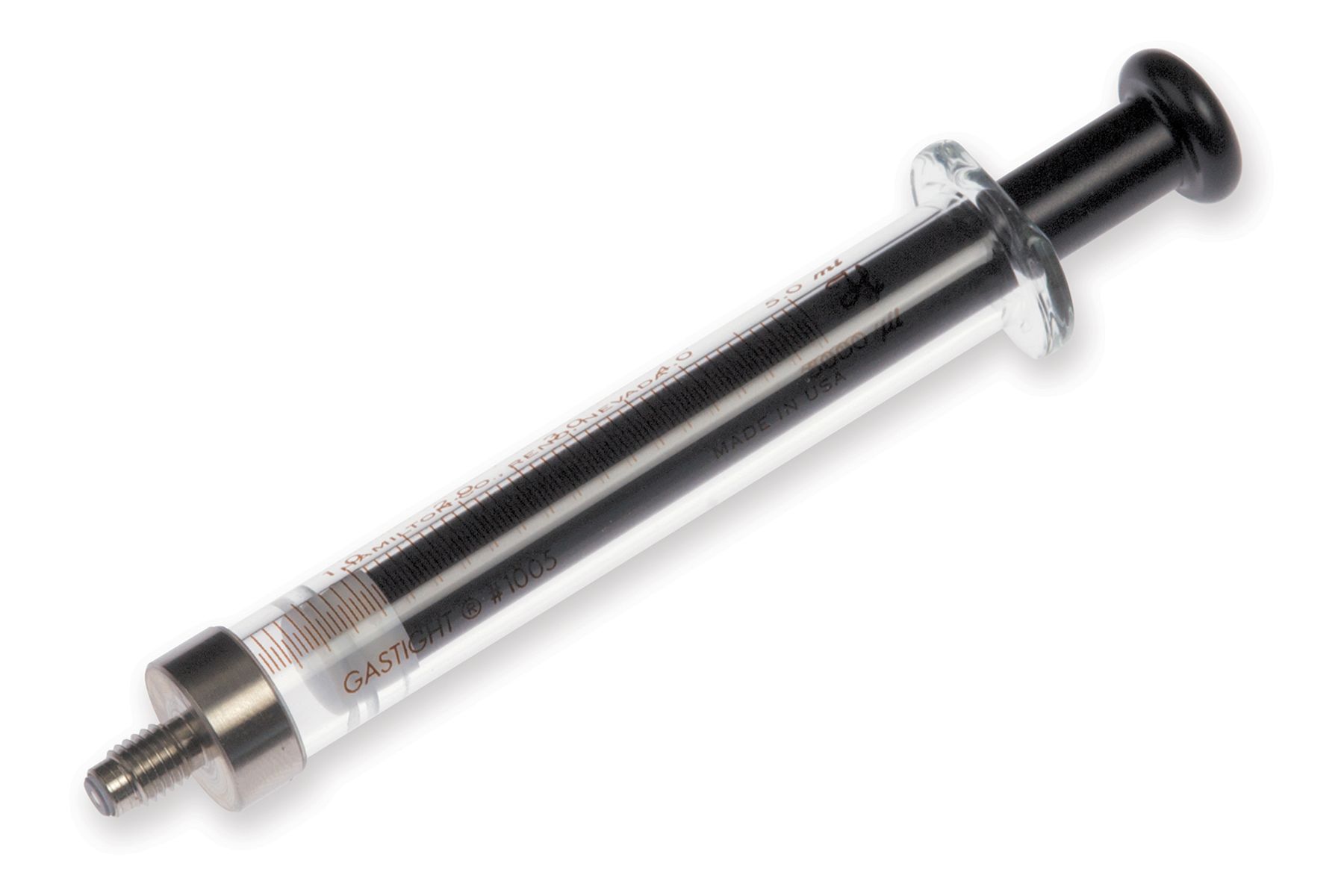

5 mL, Gastight Syringe, ChemSeal (C, 1/4"-28), PN: 81560

No Needle Available

Part # 81560

This 1000 series syringe is a 5 mL Gastight #1005 syringe designed to manually dispense heterogeneous, volatile, and viscous samples. Commonly used with instruments, this syringe (PN: 81560) has a ChemSeal (C, 1/4"-28) termination.

Buy Now

Price

$

Minimum: 1, Maximum: 1000

5 mL, Gastight Syringe, ChemSeal (C, 1/4"-28), PN: 81560 Details

Hamilton's 1000 series, Gastight #1005 ChemSeal (C, 1/4"-28) Syringes with X-Style plunger are ideal for dispensing both liquids and gases. They have a polymer plunger tip that creates a leak-free seal. With a wide range of volume capabilities, terminations, needle options and plunger styles, this syringe series provides exceptional flexibility and versatility. Hamilton syringes ensure an accuracy of ± 1%, superior durability, and are manufactured with the highest quality chemically resistant materials.

Polymer Plunger Tip

  • A white polymer plunger tip effectively wipes the glass barrel, creating a leak-free seal.
  • Ensures a Gastight performance, suitable for liquids and gases.

X-Style Plungers

  • The plunger button features a 6-32 threaded hole, commonly used for mounting the syringe into a syringe pump.
  • Syringes with X-Style Plunger Buttons can also be used manually.
Scientific Citations

  • Gastight Syringes Ensures Integrity of Environment Sensitive Catalysts (or Samples)

    For such, we utilize highly reactive catalysts that are in many cases air and moisture-sensitive. Gastight Hamilton syringes are essential to maintaining the catalyst integrity and, therefore, ensuring reproducible and trustable results.

    Stella A. Gonsales
    Assistant Professor, University of Chemistry and Technology Prague | Department of Polymers

5 mL, Gastight Syringe, ChemSeal (C, 1/4"-28), PN: 81560 Specifications

Print
Volume 5 mL
Syringe Type Gastight
Syringe Series 1000
Termination ChemSeal (C, 1/4"-28)
Needle No Needle Available
Plunger Style X-Style
Fluid Path Borosilicate glass, PTFE, PCTFE
Autoclavable Yes
Gas Sterilizable Yes
Pressure 200 psig (13.8 bar)
Maximum Operating Temperature 80°C / 176°F
Minimum Operating Temperature 10°C / 50°F
Barrel Inner Diameter 0.406 inches (10.3 mm)
Barrel Outer Diameter 0.530 inches (13.5 mm)
Sales Quantity 1 syringe per pack
Syringe Model Number 1005
