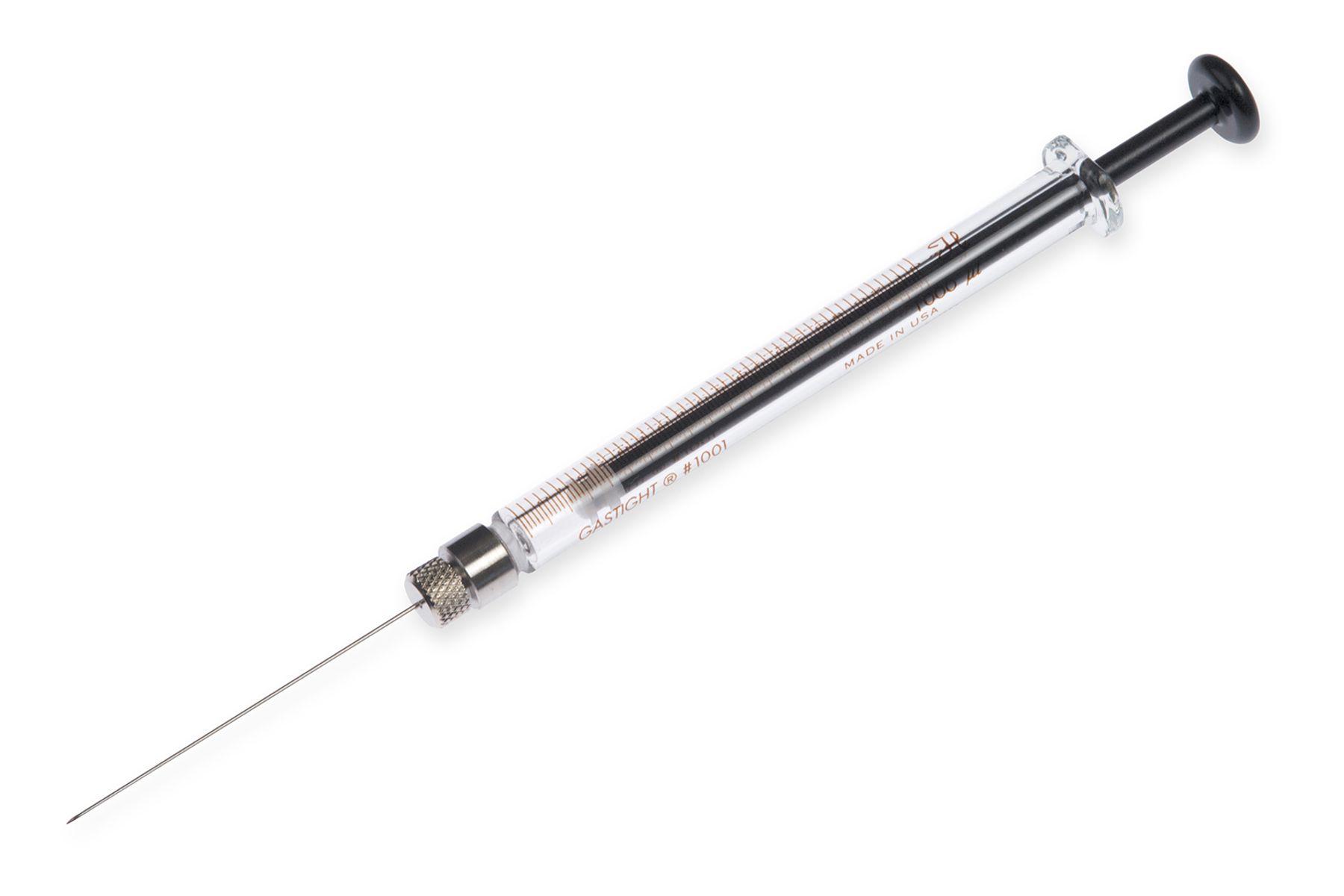

1 mL, Gastight Syringe, Removable Needle (RN), PN: 81330

22 Gauge, 2in, Point Style 2: curved, bevel

Part # 81330

This 1000 series syringe is a 1 mL Gastight #1001 syringe designed to manually dispense heterogeneous, volatile, and viscous samples. Commonly used with instruments, this syringe (PN: 81330) has a Removable Needle (RN) termination and is compatible with a Large RN needle.

Buy Now

Price

$

Minimum: 1, Maximum: 1000

1 mL, Gastight Syringe, Removable Needle (RN), PN: 81330 Details

Hamilton's 1000 series, Gastight Model 1001 Large Removable Needle (RN) Syringe is designed for manually dispensing both liquids and gases. Compatible with Large Hub RN Needles. The 1000 series is a mid-volume Gastight syringe. They feature a polymer plunger tip that creates a leak-free seal. With a wide range of volume capabilities, terminations, needle options, and plunger styles, this syringe series provides exceptional flexibility and versatility. Hamilton syringes ensure an accuracy of ± 1%, superior durability, and are manufactured with the highest quality chemically resistant materials.

Compatible with Large RN Hub Needles

Polymer Plunger Tip

  • A white polymer plunger tip effectively wipes the glass barrel, creating a leak-free seal.
  • Ensures a Gastight performance, suitable for liquids and gases.

Versatile Volume and Compatibility

  • Dispenses from 1 mL to 100 mL with precision.
  • Compatible with various terminations and plunger styles for both manual dispensing and instrument applications.


  • Gastight Syringes Ensures Integrity of Environment Sensitive Catalysts (or Samples)

    For such, we utilize highly reactive catalysts that are in many cases air and moisture-sensitive. Gastight Hamilton syringes are essential to maintaining the catalyst integrity and, therefore, ensuring reproducible and trustable results.

    Stella A. Gonsales
    Assistant Professor, University of Chemistry and Technology Prague | Department of Polymers

1 mL, Gastight Syringe, Removable Needle (RN), PN: 81330 Specifications

Print
Volume 1 mL
Syringe Type Gastight
Syringe Series 1000
Termination Removable Needle (RN)
Needle Large RN
Gauge 22 gauge
Point Style 2: Curved, Beveled
Needle Length 2 inch (51 mm)
Plunger Style Standard Plunger
Fluid Path SST, Borosilicate glass, PTFE
Autoclavable Yes
Gas Sterilizable Yes
Pressure 200 psig (13.8 bar)
Maximum Operating Temperature 80°C / 176°F
Minimum Operating Temperature 10°C / 50°F
Barrel Inner Diameter 0.181 inches (4.61 mm)
Barrel Outer Diameter 0.355 inches (9.02 mm)
Needle Inner Diameter 0.0161 inches (0.41 mm)
Needle Outer Diameter 0.0283 inches (0.72 mm)
Std Needle Dead Volume 6.81 µL
Sales Quantity 1 syringe per pack
Syringe Model Number 1001

1 mL, Gastight Syringe, Removable Needle (RN), PN: 81330 Resources

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

HAM Reference Guide Syringes Needles

Catalog

Reference Guide - Laboratory Syringes and Needles

The Syringe and Needle Reference Guide provides detailed information on Hamilton’s full portfolio of syringes and needles. Everything from cleaning to selection charts to help you choose between syringe terminations.
HAM Guide Syringe Use Care

Guide

Syringe Care and Use Guide

Hamilton’s Syringe Care and Use guide outlines the basics of daily syringe use and operation so that scientists and technicians can achieve the highest level of accuracy and precision. Important topics covered include inspection, operating temperature, trapped air, and sample carryover.
HAM Catalog Selecting Right Syringe

Guide

Hamilton Guide to Selecting the Right Syringe

Select the right type of syringe for your manual application. View our syringe size chart and learn more about Hamilton's lab syringe needles in this guide. Top-quality materials and skilled workmanship ensure that our syringes consistently deliver the highest performance for reliable analyses.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Syringes Graduations

Article

Syringe Graduations

Another aspect of proper syringe selection requires knowing the graduations visible on a particular syringe series and volume. This detailed table of data provides scale length, total scale divisions, major graduations, minor graduations, and sub-minor graduations of each syringe series by volume.
Syringe 1800 Series

Article

Syringe Dimensions

See the specific volumes, outer diameter measurements, and inner diameter measurements of all microliter syringes.
Syringe Terminations

Article

Syringe Terminations

One of the first steps to understanding the ideal syringe for your specific application is to know which termination is best. This article helps you make that determination, explaining what to choose based on your requirements like dispense volume, need for autoclaving, desired dead volume, pressure tolerances, or necessary headspace.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Accuracy of Hamilton syringes 1

FAQ

What are the most versatile syringes made by Hamilton?

Gastight syringes are the most versatile syringes. Plungers are replaceable if they get bent. Any of the Metal hub, Kel-F or Removable needle allow for the replacement of needle if they become bent or plugged.
Plunger faq

FAQ

Can I order a replacement plunger for my syringe?

Most Gastight syringes have replacement plungers available under 'Accessories' on the product page, while Microliter syringes do not. 7000 series modified Microliter syringes have zero dead volume and a small plunger wire, but it's best not to remove the needle or plunger to avoid damaging the wire.
Accuracy of Hamilton syringes 1

FAQ

How can I sterilize my syringe?

Chemical sterilization is the preferred method for all Hamilton products. Autoclaving syringes should only be used as a last resort and only where specifically stated. Syringe sterilization is not straightforward. Not all syringes can be autoclaved.
