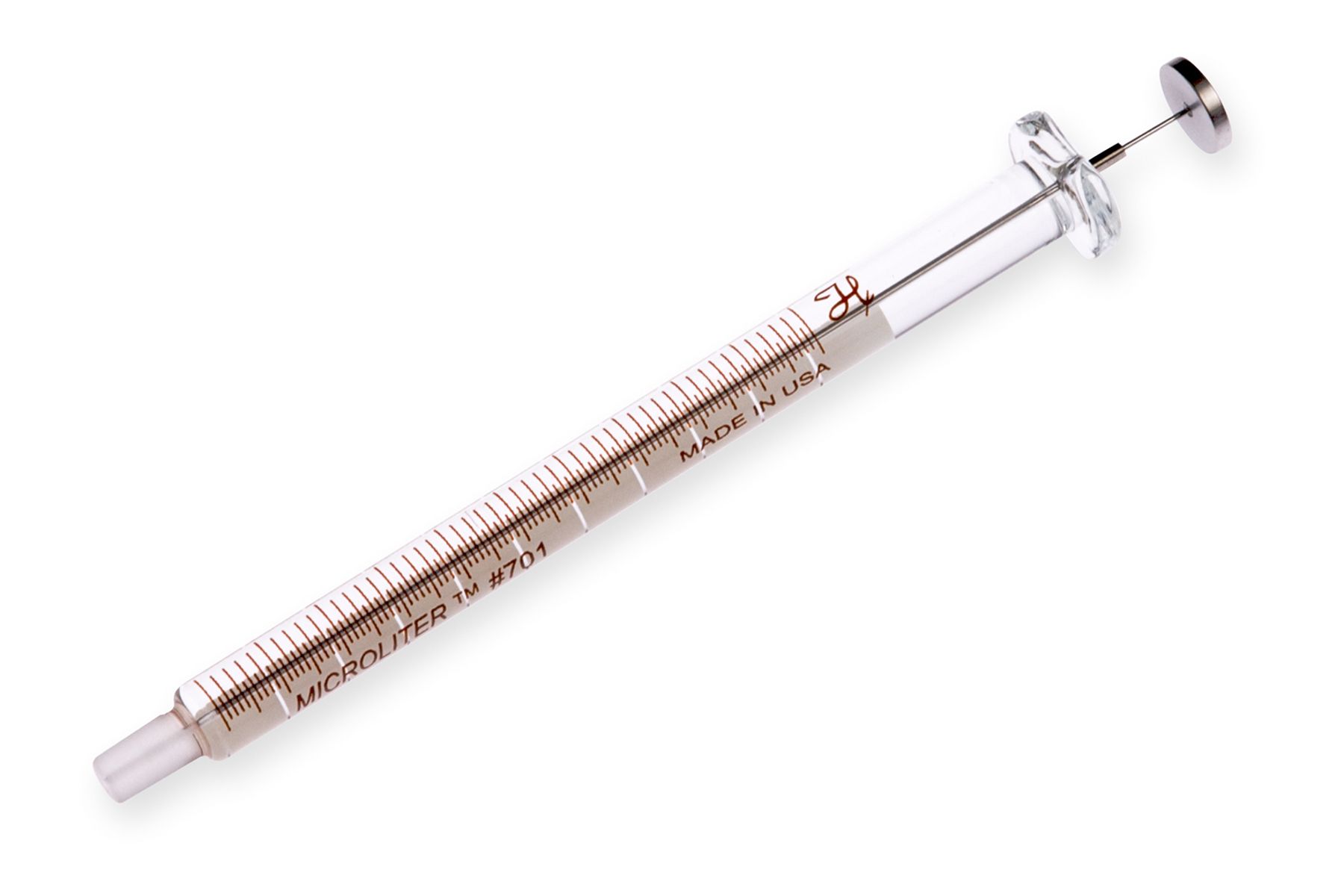

10 µL, Microliter Syringe, Luer Tip (LT), PN: 80301

Needles sold separately

Part # 80301

This 700 series Microliter #701 syringe features a stainless-steel plunger individually fitted to its barrel, giving it a velvet feel. This 10 µL syringe (PN: 80301) is made from high-quality and chemically resistant materials.

Buy Now

Price

$

Minimum: 1, Maximum: 1000

10 µL, Microliter Syringe, Luer Tip (LT), PN: 80301 Details

Hamilton's 700 series, Microliter #701 Luer Tip (LT) Syringe is the original lab syringe designed for manual dispensing in research laboratories and industrial applications. The plunger is crafted to fit the glass barrel with a tolerance of less than three-thousandths of a millimeter. These syringes are manufactured from high-quality, chemically resistant materials and ensure dimensional accuracy, optimal needle length with superior durability, and an accuracy within 1%.  Hamilton's rigorous quality control guarantees the highest standards of accuracy and precision.

Common applications Veterinary Sciences

Stainless Steel Fitted Syringe Design

  • Each Microliter Syringe features a stainless-steel plunger fitted precisely to its glass barrel for optimal performance.
  • A tolerance of less than 0.003 mm guarantees precise performance.

Borosilicate Glass Syringe Body

  • Provides chemical durability and long-lasting syringe performance.
  • Maintains accuracy and precision over a wide range of temperatures and pressures.
Scientific Citations

  • Microliter Syringes for Accurate Analysis of Reactive Chemical Species

    We commonly use microliter syringes for the preparation of reactions as they allow for the precise addition of reagents, and in addition, are inert to many of the redox reagents we use in our chemistry. We can also accurately transfer reactive species for chemical analysis without significant sample degradation. As we move into a new phase of our research, Hamilton syringes will allow for the accurate analysis of reaction products. This will include the GC analysis of N2, H2, and small molecule activation products from C-N bond forming chemistry.

    Tim Storr
    Associate Professor, Simon Fraser University | Chemistry

10 µL, Microliter Syringe, Luer Tip (LT), PN: 80301 Specifications

Print
Volume 10 µL
Syringe Type Microliter
Syringe Series 700
Termination Luer Tip (LT)
Needle Kel-F Hub
Gauge No Needle Included
Point Style No Needle Included
Needle Length No Needle Included
Plunger Style Standard Plunger
Fluid Path SST, borosilicate glass
Autoclavable Yes to 115 °C
Gas Sterilizable Yes
Pressure 2000 psig (137.9 bar)
Maximum Operating Temperature 80°C / 176°F
Minimum Operating Temperature 10°C / 50°F
Barrel Inner Diameter 0.019 inches (0.485 mm)
Barrel Outer Diameter 0.260 inches (6.60 mm)
Std Needle Dead Volume N/A
Sales Quantity 1 syringe per pack
Syringe Model Number 701

10 µL, Microliter Syringe, Luer Tip (LT), PN: 80301 Resources

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

HAM Reference Guide Syringes Needles

Catalog

Reference Guide - Laboratory Syringes and Needles

The Syringe and Needle Reference Guide provides detailed information on Hamilton’s full portfolio of syringes and needles. Everything from cleaning to selection charts to help you choose between syringe terminations.
HAM Guide Syringe Use Care

Guide

Syringe Care and Use Guide

Hamilton’s Syringe Care and Use guide outlines the basics of daily syringe use and operation so that scientists and technicians can achieve the highest level of accuracy and precision. Important topics covered include inspection, operating temperature, trapped air, and sample carryover.
HAM Catalog Selecting Right Syringe

Guide

Hamilton Guide to Selecting the Right Syringe

Select the right type of syringe for your manual application. View our syringe size chart and learn more about Hamilton's lab syringe needles in this guide. Top-quality materials and skilled workmanship ensure that our syringes consistently deliver the highest performance for reliable analyses.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Syringes Graduations

Article

Syringe Graduations

Another aspect of proper syringe selection requires knowing the graduations visible on a particular syringe series and volume. This detailed table of data provides scale length, total scale divisions, major graduations, minor graduations, and sub-minor graduations of each syringe series by volume.
Syringe Cleaning Kit

Article

Syringe Sterilization and Disinfecting Guide

Are you curious whether your Hamilton syringe can be sterilized and disinfected via ethylene oxide, autoclavation, or chemical disinfectants? Consult this table of syringe terminations, syringe needles, and tubing types to learn the possible ways to sterilize and disinfect your Hamilton syringe.
Syringe Terminations

Article

Syringe Terminations

One of the first steps to understanding the ideal syringe for your specific application is to know which termination is best. This article helps you make that determination, explaining what to choose based on your requirements like dispense volume, need for autoclaving, desired dead volume, pressure tolerances, or necessary headspace.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Plunger faq

FAQ

Are the plungers for the 700 Series Microliter syringes interchangeable?

No, they are not! Each plunger is fitted to a specific syringe barrel. Be very careful to keep each plunger with its original syringe in order to maximize syringe performance.
Accuracy of Hamilton syringes 1

FAQ

How can I sterilize my syringe?

Chemical sterilization is the preferred method for all Hamilton products. Autoclaving syringes should only be used as a last resort and only where specifically stated. Syringe sterilization is not straightforward. Not all syringes can be autoclaved.
Hamilton Syringes

FAQ

Are Hamilton syringes suitable for PFAS testing?
