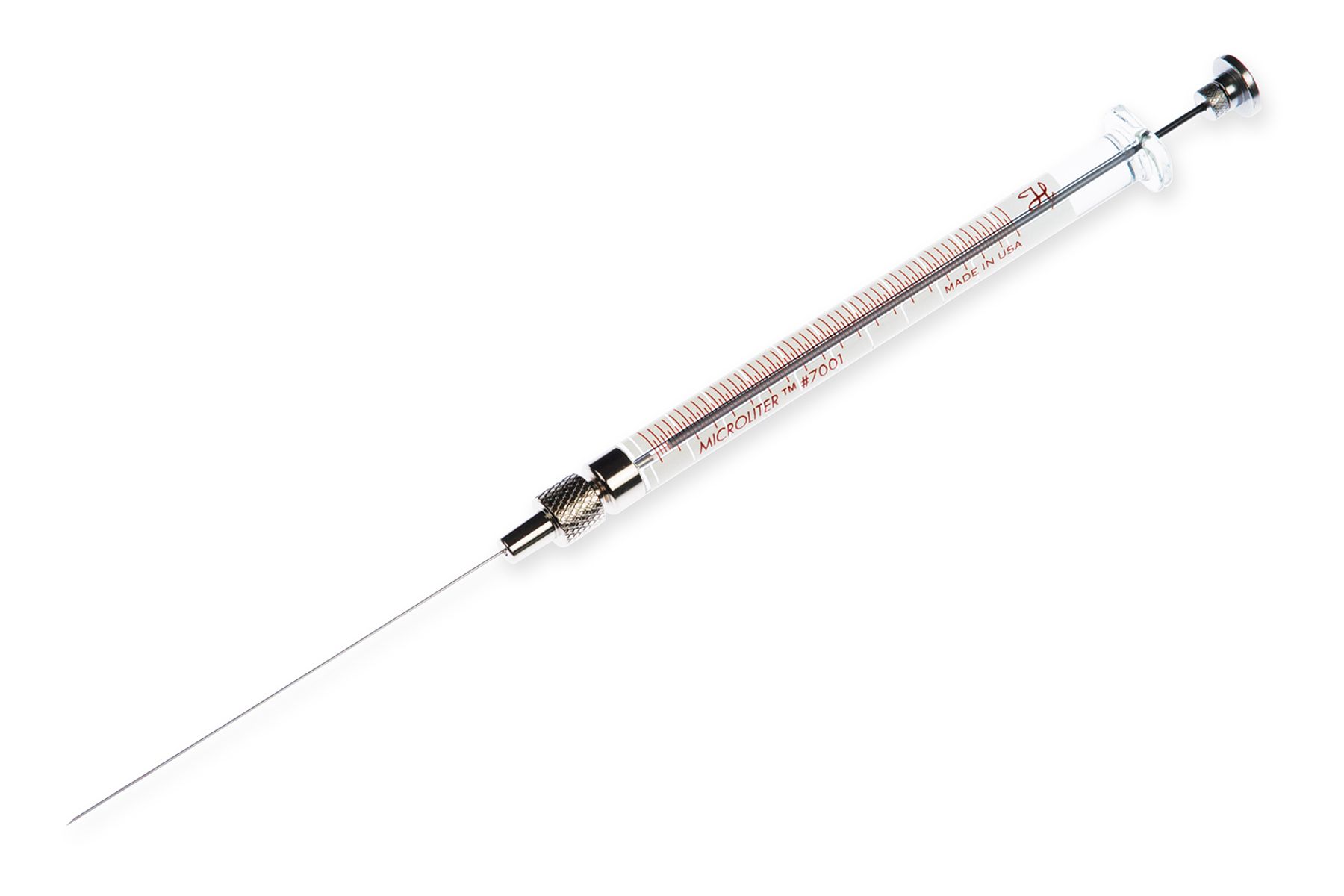

1 µL, Microliter Syringe Knurled Hub (KH), PN: 80135

25 gauge, 2.75 in (69.9 mm), Point Style 2: Curved, Beveled

Part # 80135

This 7000 series Microliter #7001 syringe is a zero-dead volume syringe. This 1 µL syringe (PN: 80135) ensures complete solvent delivery, eliminating waste and maximizing sample value, yielding accuracy and efficiency.

Buy Now

Price

$

Minimum: 1, Maximum: 1000

1 µL, Microliter Syringe Knurled Hub (KH), PN: 80135 Details

Hamilton's 7000 series, Microliter #7001 Knurled Hub (KH) Syringe is designed for manual dispensing and use in autosamplers

The 7000 series syringe offers unmatched accuracy – it's the only true zero-dead volume syringe on the market. Our innovative plunger-in-needle design, featuring a fine-gauge tungsten plunger wire extending to the very tip of the needle, guarantees complete solvent delivery, eliminating waste and maximizing the value of your precious samples. Due to this plunger-in-needle design, it is not recommended to remove the needle or plunger. Hamilton syringes ensure an accuracy of ± 1%, superior durability, and are manufactured with the highest quality chemically resistant materials.

Please see the 7000 Syringe Series Operating Parameters for complete specifications.

Common applications Veterinary Sciences, Analytical Chemistry, Gas Chromatography Mass Spectrometry (GC-MS)

Plunger-In Needle Design

  • Features a fine tungsten plunger wire extending to the tip of the needle.
  • This design creates a true zero dead volume syringe, maximizing sample utilization.

Borosilicate Glass Syringe Body

  • Provides chemical durability and long-lasting syringe performance.
  • Maintains accuracy and precision over a wide range of temperatures and pressures.

  • Precise Micro-injections with Zero Dead Volume

    In invertebrate model organisms, I prefer Hamilton syringes in my studies because of the low margin of error, no dead volume, and customizable tip options for innate immunity or survival etc.

    Serhat Kaya, Ph.D.
    Senior Researcher, Çanakkale Onsekiz Mart University | Turkey | Department of Biology

1 µL, Microliter Syringe Knurled Hub (KH), PN: 80135 Specifications

Print
Volume 1 µL
Syringe Type Microliter
Syringe Series 7000
Termination Knurled Hub (KH)
Needle Knurled Hub (KH)
Gauge 25 gauge
Point Style 2: Curved, Beveled
Needle Length 2.75 inches (69.9 mm)
Plunger Style Standard Plunger
Fluid Path SST, Tungsten, Borosilicate Glass
Autoclavable Yes
Gas Sterilizable Yes
Pressure 6000 psig (413.7 bar)
Maximum Operating Temperature 80°C / 176°F
Minimum Operating Temperature 10°C / 50°F
Barrel Inner Diameter 0.0057 inches (0.145 mm)
Barrel Outer Diameter 0.308 inches (7.82 mm)
Needle Inner Diameter 0.0057 inches (0.145 mm)
Needle Outer Diameter 0.020 inches (0.515 mm)
Std Needle Dead Volume 0 µL
Sales Quantity 1 syringe per pack
Syringe Model Number 7001
