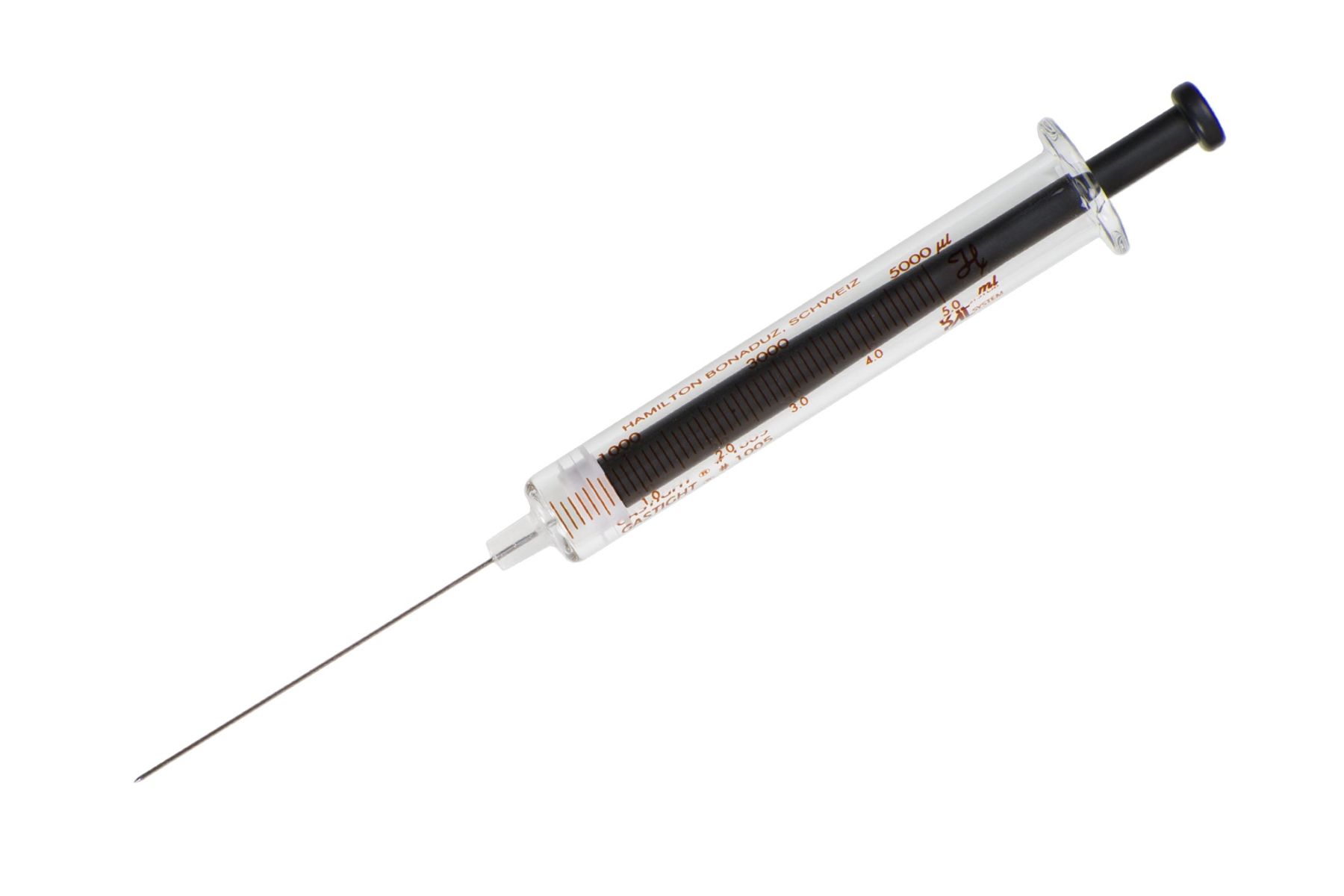

5 mL, Gastight, Headspace CTC PAL Autosampler Syringe, Cemented (N), PN: 203086

23 gauge, 56 mm (2.20 inches), Point Style 5: Conical Side Port

Part # 203086

This 1000 series syringe is a Gastight #1005 syringe designed to manually dispense heterogeneous, volatile, and viscous samples. Commonly used with instruments. This 5 mL syringe (PN: 203086) has a Luer Tip Needle (LTN) termination and is compatible with a Cemented Needle. View Compatible Autosamplers

Buy Now

Price

$

Minimum: 1, Maximum: 1000

5 mL, Gastight, Headspace CTC PAL Autosampler Syringe, Cemented (N), PN: 203086 Details

Hamilton's 1000 series, Gastight, Headspace # 1005 Cemented (N) CTC PAL Autosampler Syringe is designed for CTC CombiPAL autosampler system for gas chromatography headspace analysis. This syringe features a unique high-temperature plunger tip and a novel metal spring sealing system, ensuring excellent performance over a wide temperature range up to 110 °C. With higher temperature tolerance, new sealing system and a High Dynamic (HD) plunger, these syringes are optimized for increased durability, reproducibility and achieving higher throughput in headspace techniques.

Compatible Autosamplers:

CTC LEAP CombiPAL HD Headspace Syringes

Shimadzu AOC-5000 Syringes



Polymer Plunger Tip

  • A white polymer plunger tip effectively wipes the glass barrel, creating a leak-free seal.
  • Ensures a Gastight performance, suitable for liquids and gases.

High Dynamic High Temperature Plunger

  • Equipped with a specialized high-temperature plunger tip, ideal for injections across extensive temperature ranges.
  • Incorporates a novel metal spring sealing system, ensuring a dynamic, leak-free seal between the plunger tip and glass barrel.

Scientific Citations

  • Gastight Syringes Ensures Integrity of Environment Sensitive Catalysts (or Samples)

    For such, we utilize highly reactive catalysts that are in many cases air and moisture-sensitive. Gastight Hamilton syringes are essential to maintaining the catalyst integrity and, therefore, ensuring reproducible and trustable results.

    Stella A. Gonsales
    Assistant Professor, University of Chemistry and Technology Prague | Department of Polymers

5 mL, Gastight, Headspace CTC PAL Autosampler Syringe, Cemented (N), PN: 203086 Specifications

Print
Volume 5 mL
Syringe Type Gastight
Syringe Series 1000
Termination Luer Tip Needle (LTN)
Needle Cemented Needle
Gauge 23 gauge
Point Style 5: Conical Side Port
Needle Length 56 mm (2.20 inches)
Fluid Path SST, Borosilicate glass, PTFE
Autoclavable No
Gas Sterilizable Yes
Pressure 29 psig (2bar)
Maximum Operating Temperature 230°F (110°C)
Minimum Operating Temperature 68°F (20°C)
Needle Inner Diameter 0.008 inches (0.20 mm)
Needle Outer Diameter 0.025 inches (0.64 mm)
Std Needle Dead Volume 4.53 μL
Sales Quantity 1 syringe per pack
Syringe Model Number 1005
