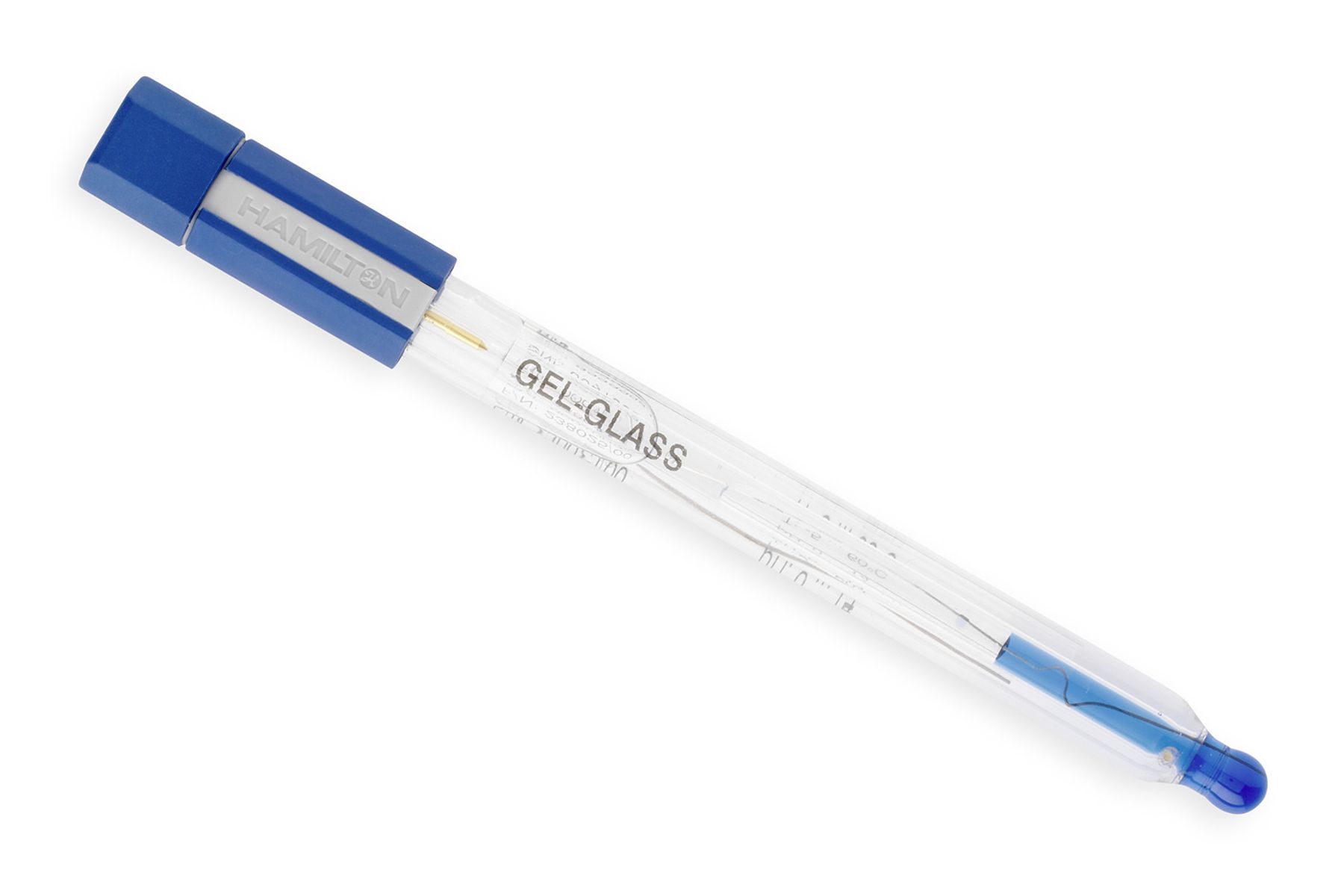

Gel-Glass

Part # 238025

Choose the Gel-Glass pH Sensor for reliable, maintenance-free pH readings using a durable glass shaft and pre-filled gel electrolyte. A sealed reference system means long-term stability, fast response time, and accurate results in lab applications.

Buy Now

Price

$

Minimum: 1, Maximum: 1000

Gel-Glass Details

The Gel-Glass pH Sensor is designed for consistently reliable pH measurements. It consists of   a glass body and a ceramic diaphragm (junction) for contamination and corrosion resistance. This pH electrode is pre-filled with gel electrolyte to significantly reduce or eliminate maintenance in busy laboratories. With easy operation, quick stabilization, and a sealed reference system, the Gel-Glass pH probe provides everyday value in pH measurements.

Reduce downtime with pre-filled no-maintenance gel electrolyte.

Durable materials resist chemical wear and contamination.

 Everyday value and quick stabilization in general laboratory.

High-quality pH Sensor Materials

  • Glass body protects against corrosion and contamination.
  • Ceramic diaphragm further supports chemical resistance.

Pre-filled Gel Electrolyte

  • Little to no maintenance with no need for reference electrolyte refills.

  • Hamilton pH sensors are characterized by their high measuring accuracy and long service life.

    Hamilton pH sensors are characterized by their high measuring accuracy and long service life. This contributes significantly to the control of our processes. They also help us to guarantee the required product quality and to further optimize processes.

    Felix Colin
    Bioprocess Engineer, AB Enzymes GmbH

  • The measurement technology from Hamilton is hard to beat in terms of its measurement accuracy and reliability.

    The measurement technology from Hamilton that is used in our brewery is hard to beat in terms of its measurement accuracy and reliability. The planning security and cost stability with the subscription is very attractive and important to us. Hamilton offers great support and is always open to customer requests.

    Holger Bruckes
    Deputy head of Quality Assurance Mönchengladbach Brewery, Branch of OETTINGER Brewery GmbH

  • I could not be more pleased with my experience with Hamilton!

    My company has been using Hamilton probes for years and have always been happy with their performance! The team is always very helpful in trouble shooting issues and answering any questions that we may have about our probes. Overall, I could not be more pleased with my experience with Hamilton!

    Abigail Mann
    Bioprocessing Fermentation Associate at Heliae Development

Gel-Glass Specifications

Print
Sensor Family Gel-Glass
Wetted Parts GΙass
Ceramic
pH Glass Hamilton Type HF Glass
Electrical Connector S7
a-length 120 mm
Parameter pH
Measuring Range pH 0 to 14
Electrolyte Gel electrolyte
Sensitivity 57 to 59 mV / pH at 25 °C
Zero Point 0 ± 20 mV
pH Glass Resistance Moderate
Membrane Shape Spherical
Diaphragm Ceramic
Number of Diaphragms 1
Reference System Ag/AgCl
Temperature Sensor No
Minimum Immersion Depth 15 mm
Serial Number Yes
Recommended Storage Hamilton Storage Solution or 3 M KCl
Certificate Yes, with measured values in Buffer pH 4.01 and pH 7.00
Diameter 12 mm
Operating Temperature Range -10 to 60 °C
Pressure Range bar g Atmospheric pressure
