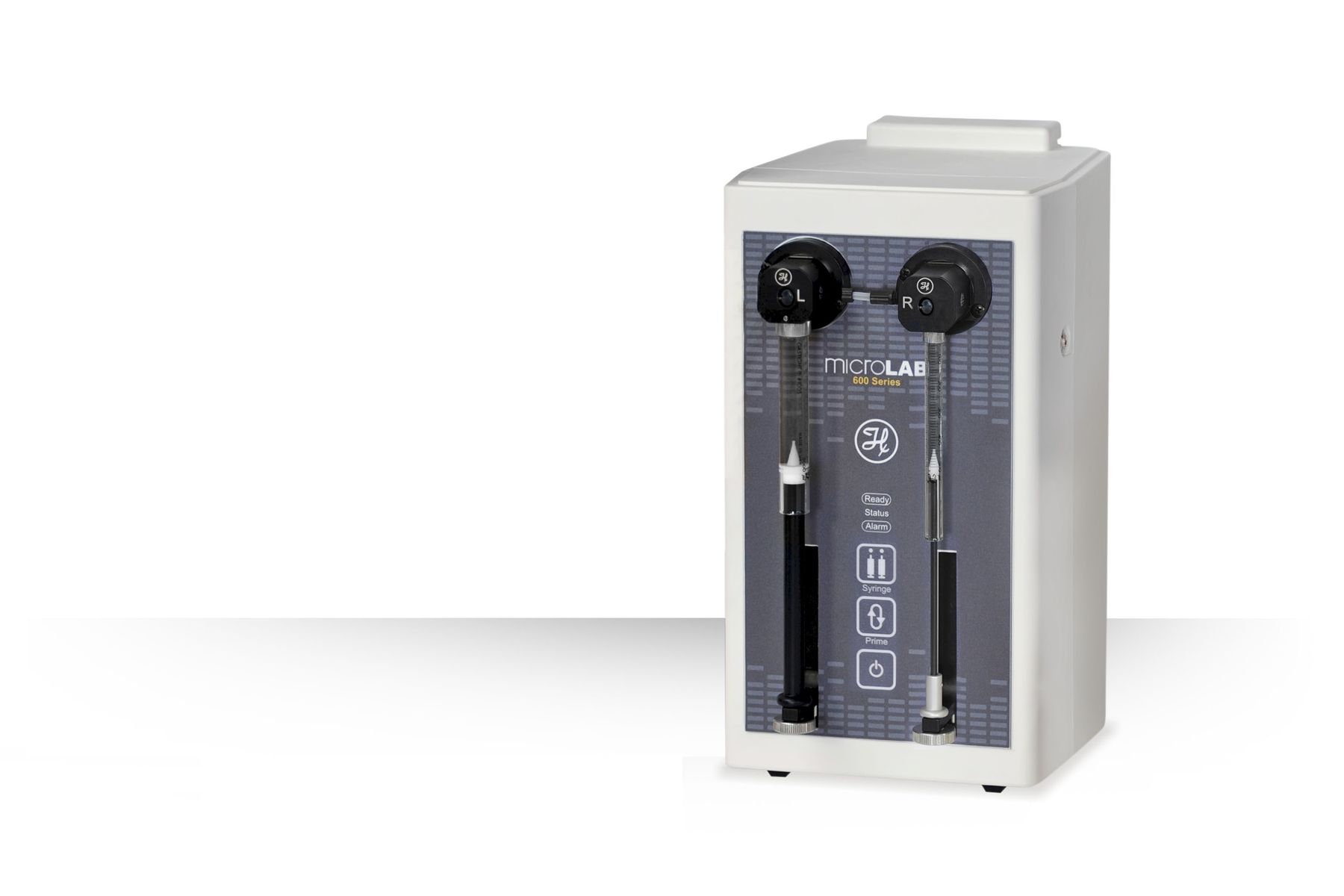

Microlab 600 Dual Syringe Pump, PC Controlled

Part # ML635

The Microlab 600 Dual Syringe Pump, PC Controlled features two user-selected and independently controlled syringes along with remote control and monitoring. It also offers Ethernet and serial RS-232 ports to facilitate communication.

Buy Now

Price

$

Minimum: 1, Maximum: 1000
| Print

Significantly scale throughput by connecting up to sixteen ML600 Dual Syringe Pumps

Cut down on variable manual efforts along with repetitive injury risks

Create bespoke workflows and manage operations remotely

Programming Language Options

  • Visual C#
  • Visual Basic
  • LabVIEW

ML635 Includes

  • Dual syringe pump and two user-selected syringes
  • Left and right universal valves and valve plugs
  • Cross tube assembly
  • Power supply with country-specific cord
  • Custom Programmer Kit

When to Use RS-232

  • In conjunction with a Programmable Logic Controller, a controller not running on a Windows® platform, or when programming in a language that is incompatible with a .NET 2.0 framework.
  • If the application has already been implemented using a legacy device, such as the Microlab 500.
  • With applications using the Modular Valve Positioner (MVP) or other Hamilton RS-232 devices.

Choose Ethernet For

  • Full syringe pump control of all details.
  • Critical remote operations, like in clean rooms or in labs utilizing radioactive or dangerous materials.
  • Programming via Microsoft .NET 2.0. The application programming interface (API) offers standardized on-screen help to simplify programming.
Scientific Citations

Microlab 600 Dual Syringe Pump, PC Controlled Specifications

Print
Power Rating 24 VDC, 2.5A
Power Requirements 100-240V 1.5A max 50-60 Hz
Program Memory One program stored in memory while power is on
Syringe Drive Mechanism Stepper motor driven high precision lead screw with encoder
Controller PC Controlled
Number of Syringe Drives Two
Probe No Probe
Fluid Path Borosilicate, PTFE, CTFE, PFA
Dimensions 7 x 5.5 x 10.5 inch (177.8 x 139.7 x 266.7 mm)
Weight 13 lbs

Microlab 600 Dual Syringe Pump, PC Controlled Resources

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

microlab 600

Catalog

Download the Hamilton Microlab 600 Catalog

The Microlab 600 is a highly precise syringe pump with a touchscreen interface designed to quickly and easily dilute and dispense fluids. Download the catalog to learn more.

Guide

Microlab 600 Programmer Kit Features and Functionality Guide

The ML635 standalone device comes with the Programming Kit that provides examples to help you get up and running with your own custom application. Before you buy, read this guide to find out if these examples will provide what you need out of the box, or if additional programming will be required.
Hamilton laboratory products

Technical Manual

User Manual - Microlab 600 Basic

Microlab 600 Basic Technical Manual

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

FAQ

Microlab 600 Calibration and Maintenance Recommendations

The Microlab 600 is recommended to be sent in for maintenance and recalibration on an annual basis.

FAQ

Which tubing gauge do I need for my Microlab 600?

The Microlab 600 fill and dispense tubing assemblies are available with 12 or 18 gauge tubing.
Gloved hand using an electronic pipette over a 96-well plate beside a MicroLab 600 Series diluter

FAQ

What is the Microlab 600 Accuracy and Precision?

The Bubble Free Prime syringes are specifically designed for the Microlab 600 to enable the highest accuracy and precision.
