Microlab 600 Single Syringe Pump, PC Controlled

Part # ML630

The Microlab 600 Single Syringe Pump, PC Controlled includes two independently controlled syringes selected by the user. It also features Ethernet and serial RS-232 ports to facilitate activities such as remote control and monitoring.

Buy Now

Price

$

Minimum: 1, Maximum: 1000
| Print

Achieve more by scaling operations with up to sixteen ML600 Single Syringe Pumps

Remove risks of manual performance variability and repetitive use injuries

​Fully customize workflows and remotely gauge progress

Program Methods Using

  • Visual C#
  • Visual Basic
  • LabVIEW

ML630 Includes

  • Single syringe pump and one user-selected syringe
  • Left universal valve and valve plug
  • Power supply with country-specific cord
  • Custom Programmer Kit

When to Use RS-232

  • In conjunction with a Programmable Logic Controller, a controller not running on a Windows® platform, or when programming in a language that is incompatible with a .NET 2.0 framework.
  • If the application has already been implemented using a legacy device, such as the Microlab 500.
  • With applications using the Modular Valve Positioner (MVP) or other Hamilton RS-232 devices.

Choose Ethernet For

  • Full syringe pump control of all details.
  • Critical remote operations, like in clean rooms or in labs utilizing radioactive or dangerous materials.
  • Programming via Microsoft .NET 2.0. The application programming interface (API) offers standardized on-screen help to simplify programming.
Scientific Citations

Microlab 600 Single Syringe Pump, PC Controlled Specifications

Print
Power Rating 24 VDC, 2.5A
Power Requirements 100-240V 1.5A max 50-60 Hz
Program Memory One program stored in memory while power is on
Syringe Drive Mechanism Stepper motor driven high precision lead screw with encoder
Controller PC Controlled
Number of Syringe Drives One
Probe No Probe

Microlab 600 Single Syringe Pump, PC Controlled Resources

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

microlab 600

Catalog

Download the Hamilton Microlab 600 Catalog

The Microlab 600 is a highly precise syringe pump with a touchscreen interface designed to quickly and easily dilute and dispense fluids. Download the catalog to learn more.

Technical Manual

Communication Manual - Microlab 600 RS-232

Microlab 600 RS-232 Communication Manual

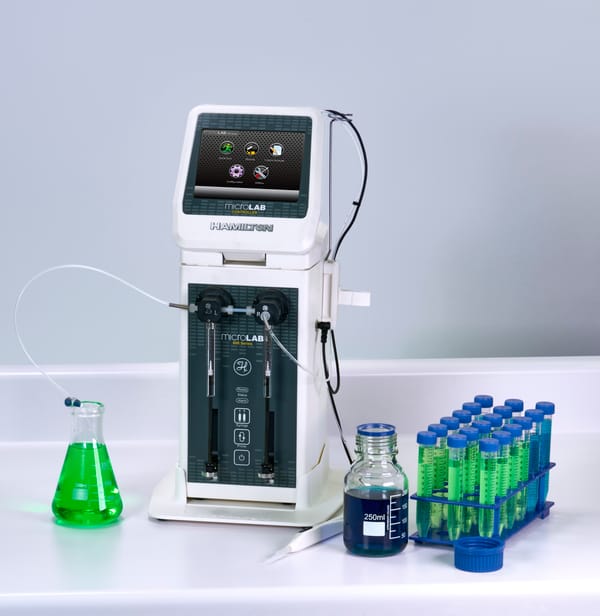

Hamilton MicroLab 600 Series diluter with controller, Erlenmeyer flask, reagent bottle, and tube rack with green solutions

Infographic

Streamline Your Sample Prep with the Microlab 600

Every laboratory has tasks too small to automate and too large to reliably accomplish by hand. Learn how to streamline your sample prep with Hamilton's Microlab 600 diluters and dispensers.

Browse app notes, user guides, specification documents, and more in our Knowledge Center.

FAQ

What flow rates are possible with the Microlab 600?

The table below defines the minimum, maximum, and default flow rate for each syringe volume for the Microlab 600.
Gloved hand using an electronic pipette over a 96-well plate beside a MicroLab 600 Series diluter

FAQ

What is the Microlab 600 Accuracy and Precision?

The Bubble Free Prime syringes are specifically designed for the Microlab 600 to enable the highest accuracy and precision.

FAQ

Is the Microlab 600 Fluid Path Compatible with My Solvents?

This FAQ contains information about chemical compatibility with the Microlab 600 instrument at room temperature.
