Microlab 600 Basic Dual Syringe Diluter

Part # ML615-DIL

The Microlab 600 Basic Dual Syringe Diluter combines dual user-selected syringes with basic software control for highly precise and repeatable yet easy sample dilutions.

Buy Now

Price

$

Minimum: 1, Maximum: 1000
| Print

Microlab 600 Basic Dual Syringe Diluter Details

Designed for simplicity and precision, the Microlab ML615-DIL Diluter delivers liquid handling with up to 1:50,000 dilution in one seamless step for fast preparations with efficient buffer and sample use. Its positive displacement technology delivers over 99% accuracy, no matter the liquid type. A chemically resistant fluid path expands reagent compatibility.

Two Bubble Free Prime syringes, selected by the user, feature conical plungers to reduce dead air space for more efficient priming. Intuitive basic software includes a Quick Start screen and real-time syringe status. It also auto-adjusts for mid-process changes, streamlining every workflow.

The ML615-DIL is ideal for sensitive techniques including atomic absorption, inductively coupled plasma spectroscopy, HPLC, GC, and liquid scintillation.

Includes:

(1) Dual Syringe Pump

(1) Dispense Tubing Assembly

(1) Basic Controller

(2) Valve Plugs

(1) Concorde Hand Probe

(1) Cross Tube

(2) Valves (Left and Right)

(1) Cable Management System

(1) Fill Tubing Assembly

(2) Tubing Clips

(2) Syringes

(1) Power Supply / Cord

(1) Base Plate (Not Pictured)

*Syringe volumes must be selected

Common applications Analytical Chemistry, Dilutions and Dispensing, Liquid Chromatography-Mass Spectrometry

Reduce time spent calculating, preparing, and diluting samples for downstream use

Guide - Microlab 600 Quick Start

Guide

Increase dilution consistency without manual errors or performance variability risks

Microlab 600 Dilution Table

Guide

Achieve confidence in dilutions with greater than 99% accuracy

What is the Microlab 600 Accuracy and Precision?

FAQ

Advanced Technology in the Basic ML615

  • Positive displacement dispensing is compatible with even challenging fluids like those that are viscous, volatile, and dense.
  • Opt for Bubble Free Prime syringes to eliminate any dead air, or select SaltLine syringes that are compatible with high salinity liquids.
  • Dispense into vessels with the sleek Concorde hand probe with push-button operation.
  • Program volumes in extremely fine increments, less than 0.01% of the syringe’s nominal capacity.

Basic ML615-DIL Control

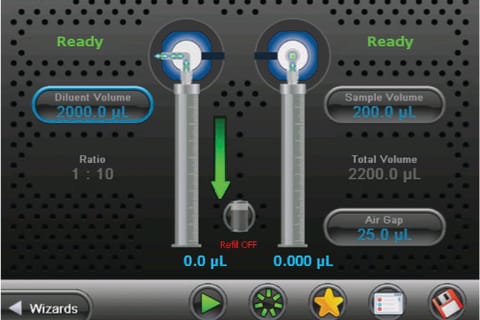

  • Prime, program, and start a dilution protocol using the Quick Start prompts, and track the pump status through a graphical display.
  • Adjust dilutions mid-process while Adaptive Dispense Control automatically recalculates remaining dilutions and refill time.
  • Upgrade from basic to advanced control at any time with a simple software kit.
Scientific Citations

  • Hamilton's ML600 drastically speeds up dilutions.

    The ML600 gives excellent accuracy and precision, and is significantly faster than using volumetric flasks. Very intuitive to use.

    Andrew Kukor
    Automation Scientist, Takeda, SelectScience

Microlab 600 Basic Dual Syringe Diluter Specifications

Print
Power Rating 24 VDC, 2.5A
Power Requirements 100-240V 1.5A max 50-60 Hz
Program Memory One program stored in memory while power is on
Syringe Drive Mechanism Stepper motor driven high precision lead screw with encoder
Controller Basic
Number of Syringe Drives Two
Probe Concorde CT Hand Probe
Syringes Included Includes two user selected syringes
Fluid Path Materials FEP, CTFE, PTFE, Borosilicate Glass
