MassXtract STAR Line
Sample prep
2-IN-1
Workflows
Maximize
COMPACT
Bench space
Specialized framework
VENUS
Rapid method development
Streamline Mass Spec Sample Preparation
MassXtract STAR Line combines all the tools you need to fully automate solid-phase extraction and protein precipitation workflows.
Mass Spec Sample Prep Simplified
The MassXtract STAR Line is a fully automated mass spectrometry sample prep solution to ease solid-phase extraction and protein precipitation, and liquid-liquid extraction workflows.
Our Microlab STAR automated liquid handling platform, with robust performance and exclusive CO-RE II Technology (Compressed O-Ring Expansion Technology), is the bedrock of this assay ready workstation. By integrating useful tools on the platform’s deck, workflow steps are consistently performed without taking up your time or attention.
Everything is controlled through our approachable VENUS Software. From basic to highly nuanced methods, a specialized framework helps to speed your development pace.
Common applications Pharma & Biopharma, Drug Discovery, Gene and Cell Therapy, Bioprocess Downstream, Microbial Strain and Fermentation Development
Featured Technologies
Hamilton Innovation Starts at the Channel
Liquid Handling Technology
-
MAD - Monitored Air Displacement
For Unmatched Reliability
MAD monitors the air displacement in each pipetting channel of a Hamilton automated liquid handler. During liquid aspiration steps, this non-contact technology immediately identifies clots, empty wells, or other aspiration issues. It also delivers a confirmation of successful aspiration in each pipetting channel of a Hamilton automated liquid handler.
-
Dual Liquid Level Detection (LLD)
For Accurate Aspirations
Dual LLD uses two sensors on each liquid handling pipetting channel. A capacitance sensor detects aqueous and conductive liquid surfaces while a pressure-based sensor works with non-conductive, viscous, and volatile liquids. Together, they ensure highly accurate and reliable liquid handling performance.
-
Anti-Droplet Control (ADC)
For Drip-Free Pipetting
Pressure sensors on Hamilton’s pipetting channels continuously detect variations. Any changes are immediately compensated for by dosing drive movements to prevent droplet formation. Essential for high-precision and accuracy when pipetting volatile liquids like ethanol and acetonitrile.
-
Pipetting TechnologyDPS - Dynamic Positioning System
For Efficient Movements
DPS enables all channels to pipette simultaneously, even across non-uniform patterns. Unlike fixed channels with equidistant spreading, DPS offers efficient yet flexible liquid handling for cherry picking, non-uniform and variable volume samples, and complex pipetting workflows.
-
Pipetting TechnologyCO-RE II Tip/Tool Attachment
The Key to Liquid Handling Workflow Excellence
The new CO-RE II technology assures more precise tip alignment, minimizing the risk of collisions. Also, tip coupling is faster which boosts productivity. Besides tips, a wide range of Hamilton tools are applicable with CO-RE II.
-
AccessoriesAutoload
For Convenient Identification
Uses a 1D barcode scanner to automatically identify and verify samples, carriers, and consumables such as tips, tubes, micro plates, and reagent troughs as they are placed onto the liquid handling deck. Optional 2D barcode reading is available, and results may be sent to any LIMS for documentation.
-
Transport SolutionsCO-RE Gripper
For Additional Movements
Further streamline automated workflows with CO-RE Grippers. These agile grippers transform Hamilton's precision pipette channels into on-deck labware transport solutions on Hamilton automated liquid handlers.
Add walkaway convenience to your protein precipitation, solid-phase, and liquid-liquid extraction workflows. This frees your precious time and expands your mass spec workflow potential without consuming valuable lab space.
The importance of sample preparation in mass spectrometry workflows cannot be overstated. With this in mind, we crafted MassXtract with precision pipetting, powerful software, and high-performing on-deck devices to boost your mass spec sample prep workflows.
By removing or reducing sources of variability in pipetting, timing, temperature, and other areas, you can be confident that your mass spec analyses truly reflect your sample characteristics without ionizable contaminants.
Explore the MassXtract STAR Line
1

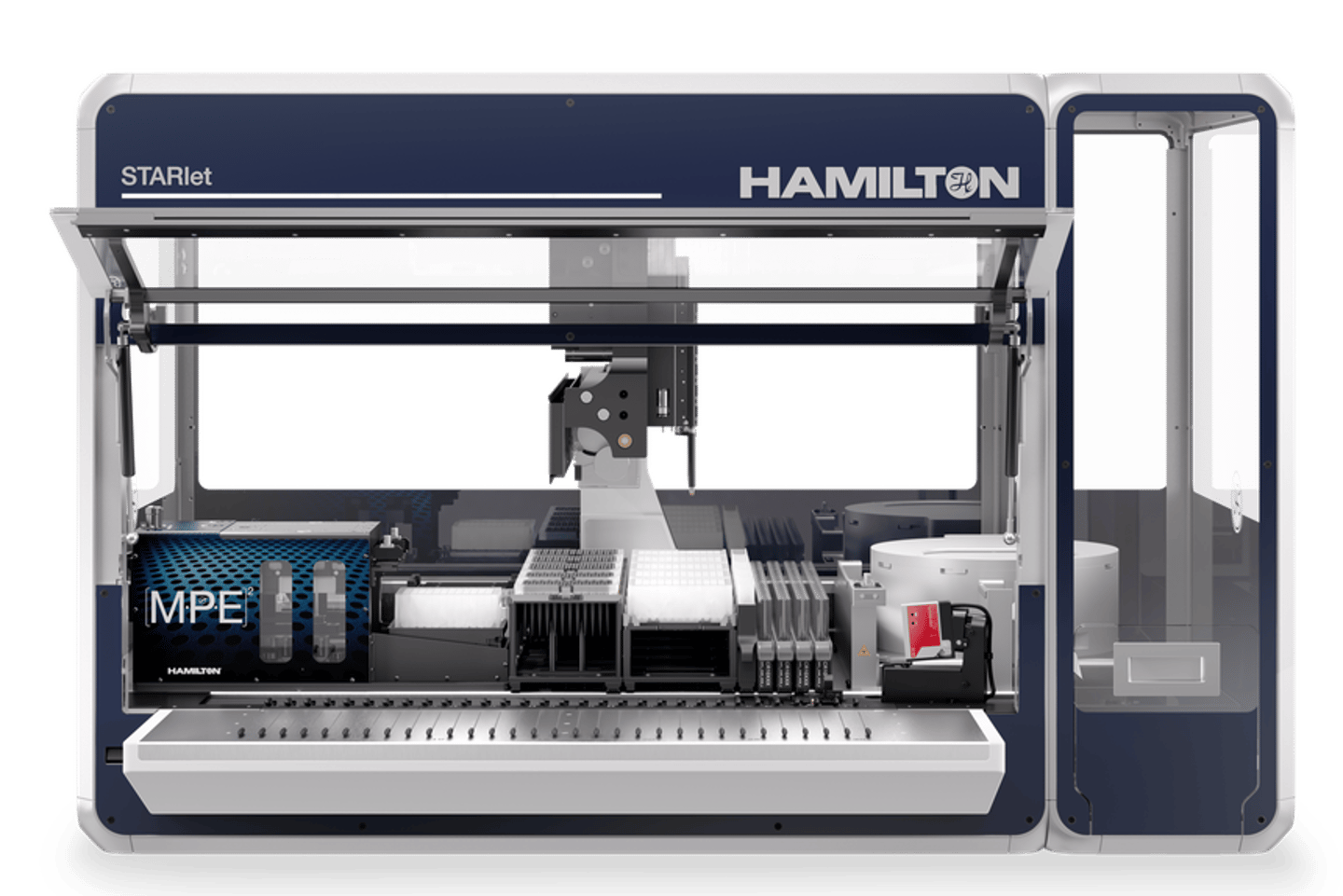

VENUS Software
User-friendly yet impactful with remote monitoring, specialized framework, and integration with most lab information management systems (LIMS) and third-party software.
2

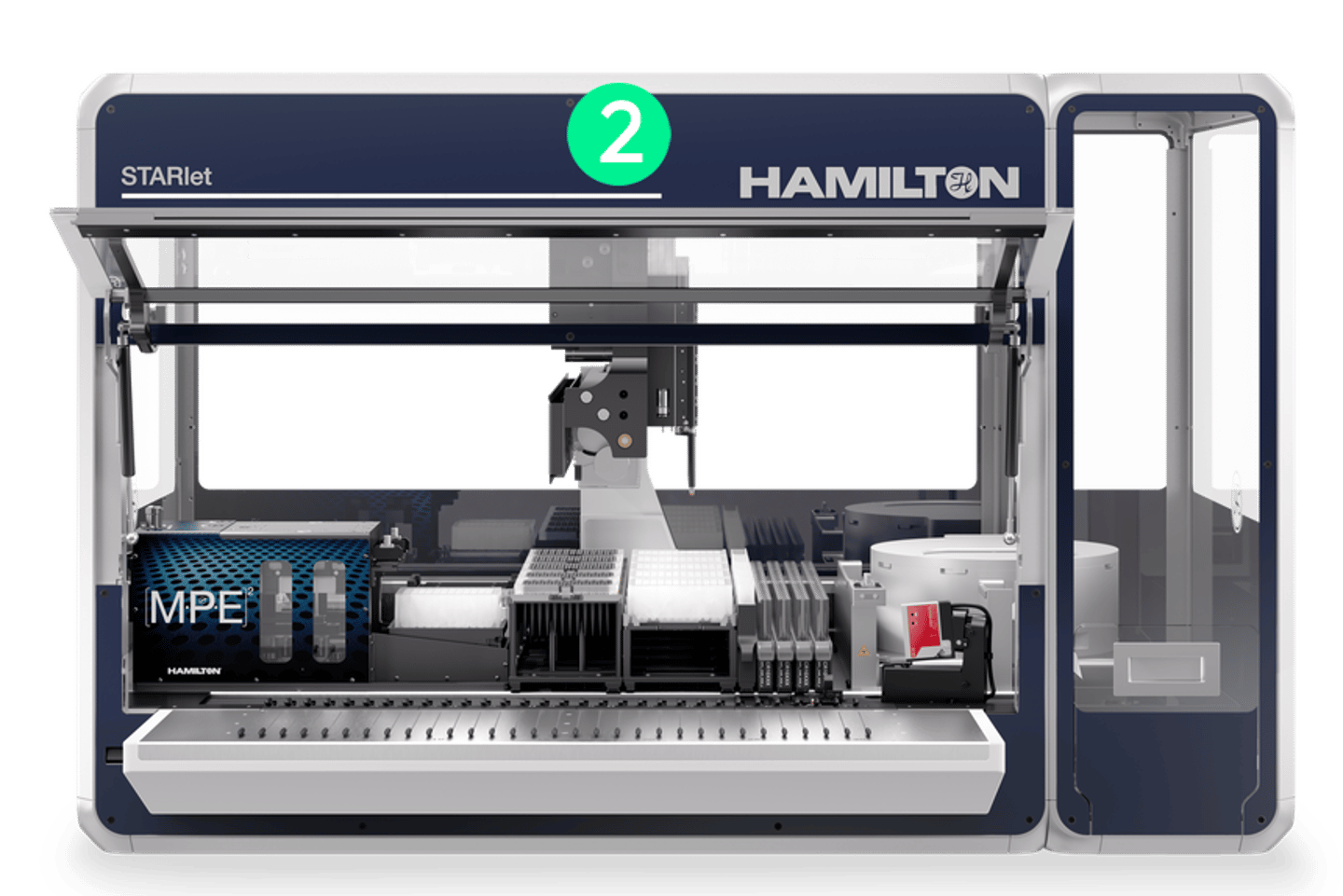

Microlab STAR
Microlab STAR automated liquid handler offers a compact footprint and includes our CO-RE II technology to ensure reliable, safe liquid handling.
3
On-Deck Centrifuge
Spin many labware types up to 60 mm high, with a maximum g-force of 2000 x g.
4
[MPE]2
Automate solid phase extraction workflows with positive pressure and optional evaporation and reagent dispensing modules.
5
Heater Shaker
Accelerate precipitation with speeds up to 2500 RPM and temperatures up to 105 °C.
6

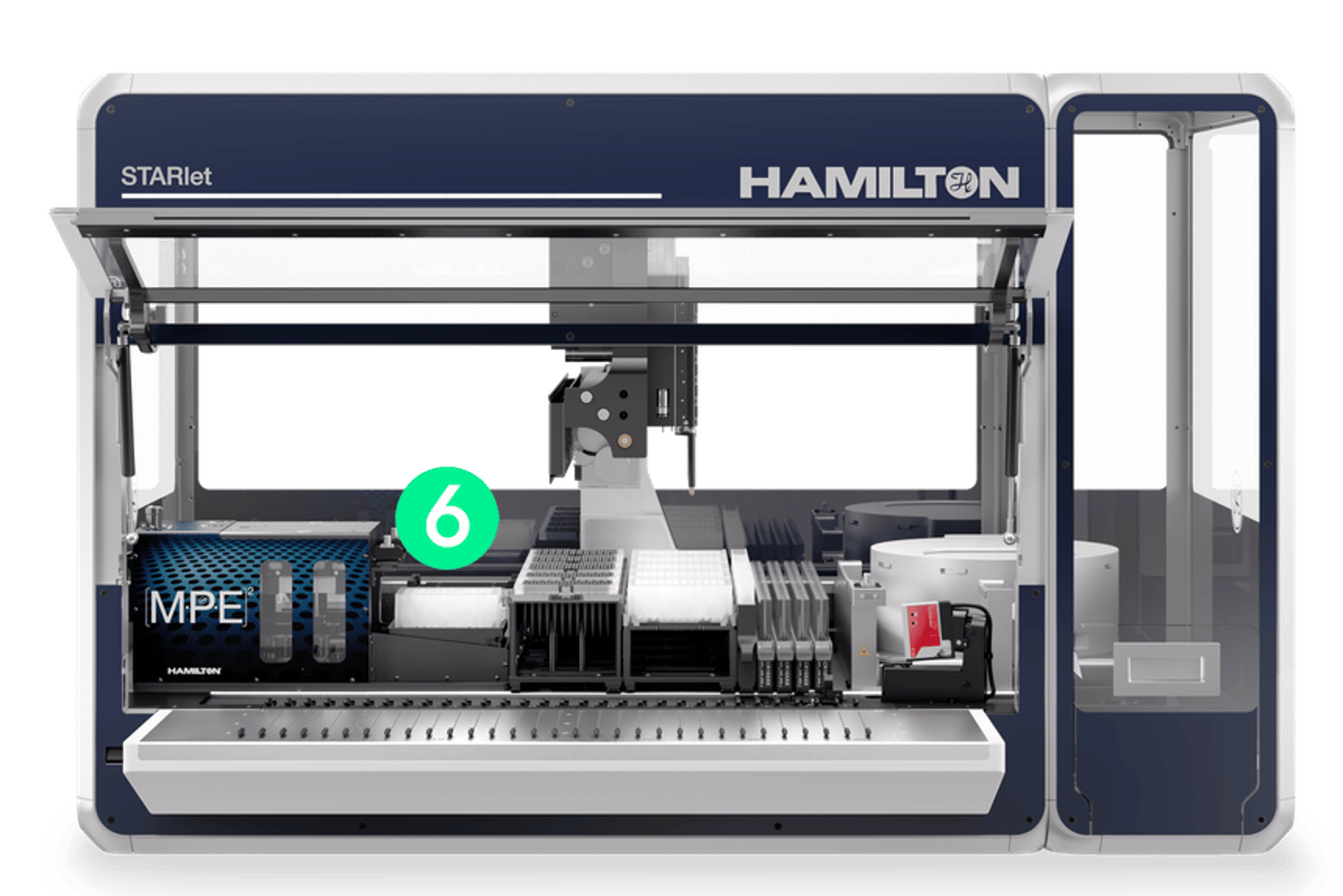

Heater Cooler
Store processed sample plates at controlled temperatures between steps or after method completion.
MassXtract STAR Line Specifications
MassXtract STARlet Specifications
PrintSystem Dimensions
- Height
- 90.1 cm (2 ft, 11.47 in)
- Width
- 1.39 m (4 ft, 6.76 in)
- Depth
- 1.01 m (3 ft, 3.69 in)
Transport Tools
- CO-RE Gripper
- Standard
Platform/Accessories
- Capacity (ANSI/SLAS Positions)
- 25
- Device Integration
- 180° (Left and Right)
Sample Loading and Tracking Options
- Sample Loading
- Automatic, Continuous
- Autoload Barcode Scanner (1D)
- Standard
- Autoload Barcode Scanner (2D)
- Optional
Pipetting Options
- 1 mL Channels
- 4
- Pipetting Range 1
- 1 µL - 1000 µL
1 Depending on Configuration
MassXtract STAR Line Resources
Browse app notes, user guides, specification documents, and more in our Knowledge Center.
Browse app notes, user guides, specification documents, and more in our Knowledge Center.
Browse app notes, user guides, specification documents, and more in our Knowledge Center.
Services
Trust in Hamilton’s Field Service Engineers for high-quality automated liquid handler installation, preventative maintenance, and field repairs.
Backed by world-class service and support.
For over 75 years, the Hamilton name has been recognized globally for its unwavering commitment to quality. That pledge extends to creating long-term customer partnerships. We're proud to offer in-depth training courses, on-site field support, custom product builds, and so much more.
