MVP Valve, 8-Port Distribution Flow Path (8-5), PTFE/CTFE, HVXM, PN: 36766
Part # 36766
Featuring one common port and eight 1/4"-28 flat-bottom distribution ports, this valve connects the common port to any one of the eight distribution ports at a time. PTFE plug valves (PN: 36766) provide excellent chemical resistance, low dead/swept volume, and a long life expectancy. HVXM valves offer a larger port diameter, ideal for higher flow rates or moderately viscous liquids.
Modular Valve Positioner (MVP) Valves
- Designed for use with the Hamilton MVP, the wide variety of fluid path options are ideal for many fluid selection and redirection applications.
- Constructed of durable and chemically resistant materials for long-term reliability.
Distribution Flow Path

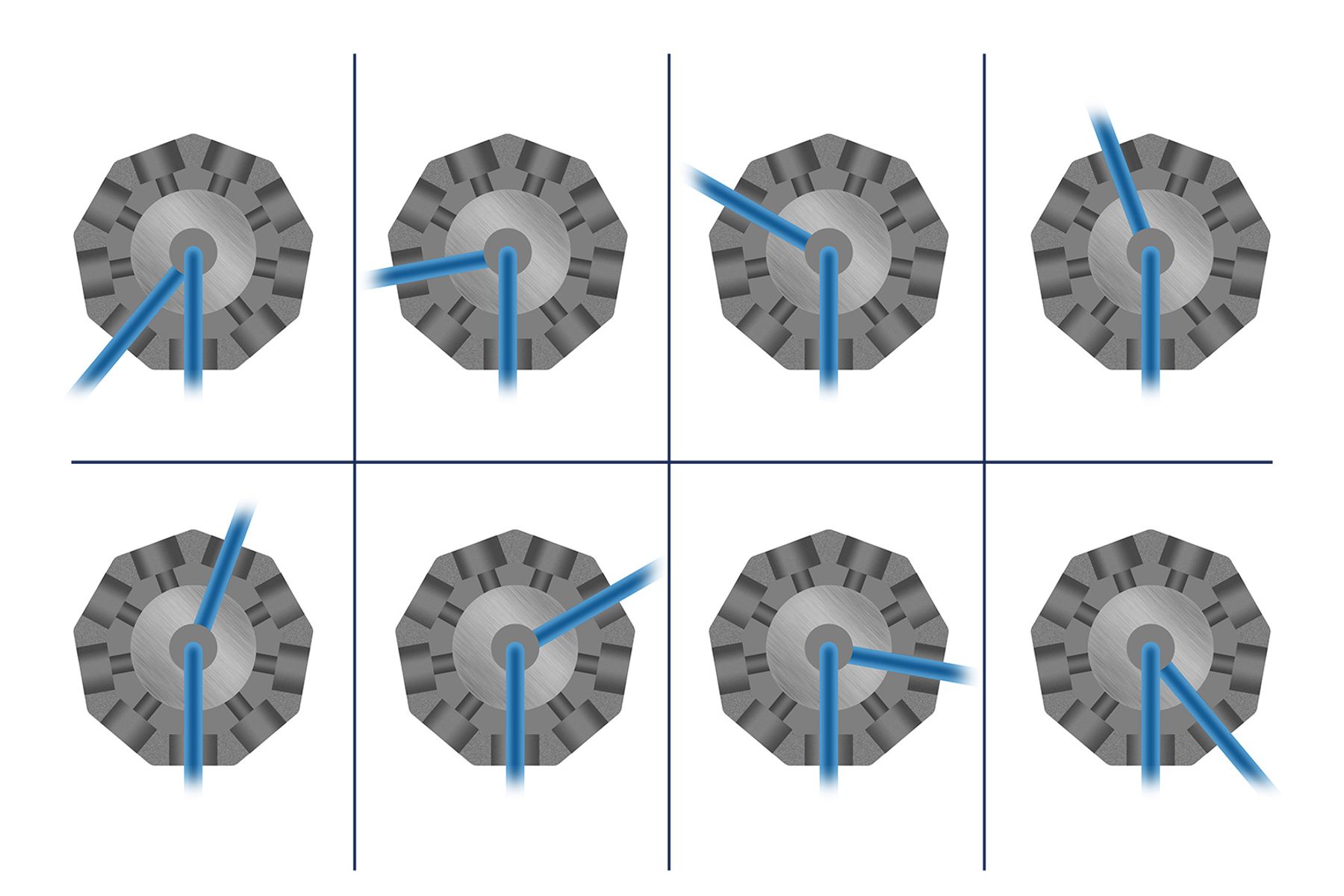

Distribution valves connect the common port to one of the distribution ports at a time, allowing fluid to be pulled into or dispensed from the common port through the selected port.
Plug Valves
Featuring a rotating PTFE plug for reliable flow path selection, these valves offer excellent durability and chemical compatibility.
- Long life expectancy
- Chemically resistant flow path
- Low dead/swept volume
- Ideal for higher pressure applications
- No lubrication required
The plug valve design is recommended for salty solutions and liquids that crystalize when dry.
HVXM Valves
- PTFE Plug Valves
- Designed for compatibility with the Hamilton MVP
- Large port diameter for increased flow or moderately viscous liquids
