MVP Valves
Versatile snap-in valve design

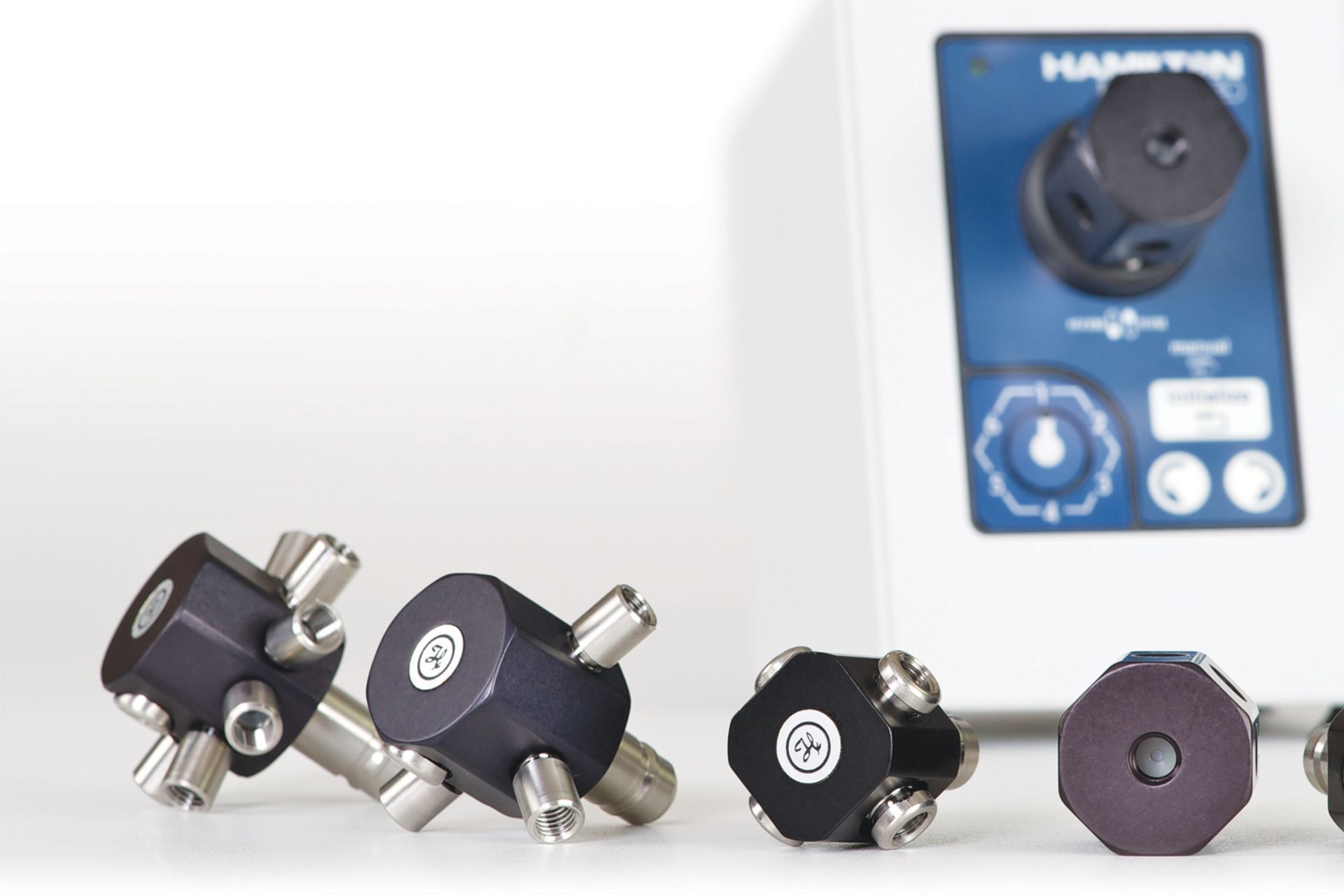

Hamilton Modular Valve Positioners are exceptionally easy to service and modify. It is very simple to remove and replace their snap-in valves with other configurations to achieve different fluid delivery with the same positioner unit, maximizing flexibility and value. You can choose from valves with two to eight ports that offer a total of 15 different flow paths. Valves are available with chemically inert PTFE and CTFE, or ceramic flow paths and can be customized per your requirements.
View all MVP Valves
Valve Specifications
| Description | HVM | HVXM | HVC | HVXC |
|---|---|---|---|---|
| Dimensions | 19 mm sq | 25.4 mm sq | 21.6 mm sq | 25.4 mm sq |
| (0.75 in) | (1.0 in) | (0.85 in) | (1.0 in) | |
| Configuration | All | All | All | All |
| Nominal Port Diameter | 1.5 mm | 2, 3, 4 port 1.8 mm (0.070 in) | 1.5 mm (0.060 in) | 1.9 mm (0.075 in) |
| (0.059 in) | 6, 8 port dist. 1.5 mm (0.059 in) | 1.5 mm (0.050 in) | ||
| 6, 8 port loop 1.0 mm (0.040 in) | 1.5 mm (0.050 in) | |||
| Operating Pressure | ≤ 0.7 MPa | ≤ 0.7 MPa | ≤ 0.7 MPa | ≤ 0.7 MPa |
| (100 psig) | (100 psig) | (100 psig) | (100 psig) | |
| Temperature Range | -12 to 38 °C | -12 to 38 °C | 10 to 35 °C | 10 to 35 °C |
| (10 to 100 °F) | (10 to 100 °F) | (50 to 95 °F) | (50 to 95 °F) | |
| Wetted Path | PTFE* | PTFE* | PTFE* | PTFE* |
| CTFE** | CTFE** | CTFE** | CTFE** | |
| Ceramic | Ceramic | |||
| Break Away Torque | 0.07 - 0.11 Nm | 0.07 - 0.11 Nm | 0.11 Nm | 0.11 Nm |
| (10 - 15 in oz) | (10 - 15 in oz) | (15 in oz) | (15 in oz) | |
| Threaded Connection | 1/4"-28 | 1/4"-28 | 1/4"-28 | 1/4"-28 |
| Thread Depth | 5.7 mm | 5.6 mm | 8 mm | 7mm |
| (0.223 in) | (0.219 in) | (0.32 in) | (0.285 in) | |
| *PTFE (Polytetrafluoroethylene) **CTFE (chlorotrifluoroethylene) | ||||
