On-Deck Vacuum Station

Programmable Pressure
1 to 1060 mbar
Reliable Performance
Labware Flexible
96- and 384-Well Plates
ANSI/SLAS Format
Easy Setup
Seamless Integration
Automated Handling

Automated Vacuum Efficiency

The Hamilton On-Deck Vacuum Station automates vacuum-controlled pressure for high-quality sample extraction and purification.

Streamline High-Throughput Sample Clean-Up

The Hamilton On-Deck Vacuum Station includes a manifold top, dedicated carrier, vacuum pump, and controller. It can be integrated with the Microlab STAR, Microlab STAR V, Microlab NIMBUS, or Microlab VANTAGE as a centrifuge replacement for automated sample cleanup. The compact system fits on a 7-track carrier that accommodates the vacuum unit and three plate positions.

The device is compatible with a variety of 96- and 384-well plates and can be loaded and unloaded manually or automatically. Additionally, the manifold top can be transported using Hamilton’s iSWAP or CO-RE Paddle Grippers, as well as the Microlab STAR’s Internal Plate Gripper (IPG) and the Quad Core Gripper on the Microlab STAR V and Microlab VANTAGE.

Common applications Genomics, Nucleic Acid Extraction, Protein Sciences, Protein Purification, Pharma & Biopharma

Ensures controlled and consistent vacuum pressure for repeatable results.

This system is ideal for vacuum-based DNA/RNA extraction, protein purification, sample filtration, solid-phase extraction, and more.

On-deck integration enables hands-free operation while scaling to meet high-throughput demands.

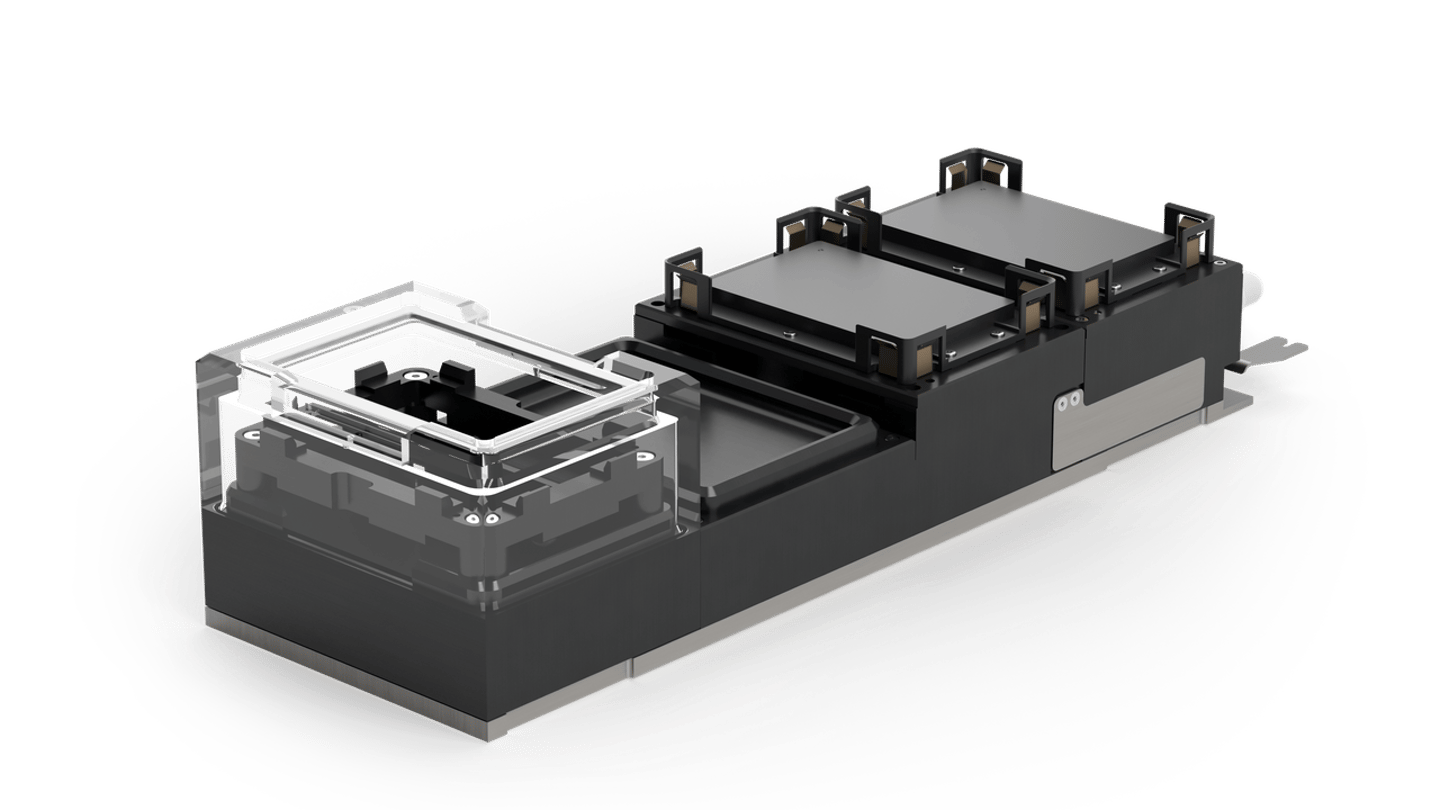

  • Modular laboratory vacuum carrier system with transparent-lidded sample chamber and dual-stack plate holder module on dark base
  • Modular laboratory vacuum carrier system with transparent-lidded sample chamber and dual-stack plate holder module on dark base
  • Modular laboratory vacuum carrier system with transparent-lidded sample chamber and dual-stack plate holder module on dark base
  • Close-up render of a transparent on-deck vacuum station module mounted on a laboratory automation deck

Explore the On-Deck Vacuum Station

1

System Components

The deck-mounted system includes a manifold top, vacuum pump, and controller.
2

Plate Compatibility

Accommodates 96- and 384-well plates and various collection plate heights.
3

Pressure Monitoring

Programmable pressure monitoring spans 1 to 1060 mbar.
4

Compact Deck Footprint

Designed to integrate with our Microlab NIMBUS, Microlab STAR, Microlab STAR V, and Microlab VANTAGE automated liquid handlers.

For complete specifications and more information on our other integrated devices, download the Integrated Devices brochure.

B 2401 06 00 2024 Integrated Devices Brochure TIMG
Integrated Devices | Brochure

On-Deck Vacuum Station Specifications

On-Deck Vacuum Station Specifications

Print

System Dimensions

Height
11.2 cm (4.41 in)
Width
15.5 cm (6.1 in)
Depth
55.5 cm (1 ft, 9.85 in)
Modular laboratory vacuum carrier system with transparent-lidded sample chamber and dual-stack plate holder module on dark base

General Specifications

Weight
4 kg
Pressure Monitoring
1 - 1060 mbars
Communication Type
RS 232
